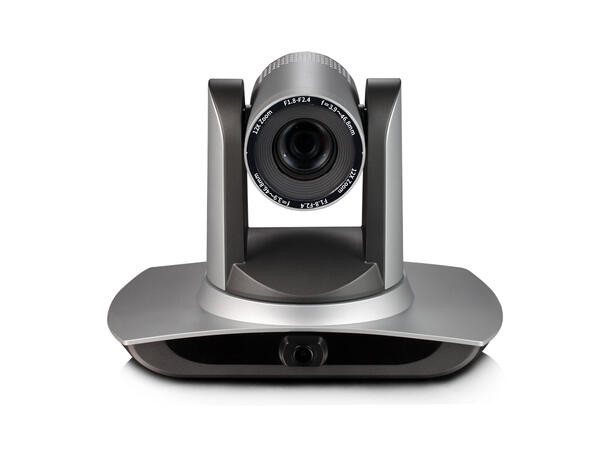

PTZ6012AI is a dedicated intelligent auto-tracking camera.

The camera is built-in with high speed processor, advanced image processing and analysis algorithms to track lecturers and students accurately and quickly, which is in line with the requirements of lecturer capture and remote interactive teaching. PTZ6012Ai adopts advanced ISP technologies and algorithms, to make a vivid image quality, screen brightness uniformity, strong sense of depth, high-definition, and fantastic color rendition. As a stable, reliable and simple machine to operate, PTZ6000AI has full function and high performance.

Product advantages:

·        Integrated design: built-in panoramic camera, to achieve an integrated fusion of panoramic camera and tracking camera.

·        Advanced tracking algorithms: the use of advanced human detection, locking and tracking image processing, analysis algorithm to ensure the target tracking steady, accurate and fast.

·        Strong anti-interference ability: Once the tracking target is locked, not affected by the disturbances of other moving objects and projectors etc.

·        Smooth tracking: The sensitivity of action can be adjusted. Tracking target’s small movement or gestures will not cause camera’s misoperation.

·        Full-frame image recognition: Image detection is performed on each frame of the picture, and the image recognition sensitivity is high. In a complex environment, People and background can be accurately distinguished and tracked. When there are multiple moving targets, it can still track target accurately, and the target loss rate is extremely low.

·        Video image auto adaptation: Based on the distance of tracking target, the tracking camera will automatically zoom and the video image will always maintain the appropriate size and proportion.

·        Strong environmental adaptability: The tracking performance is not affected by classroom’s size, shape and seating arrangement.

·        Ultra wide dynamic exposure function: to completely avoid the problem of tracking a darken target under the strong light background of projectors etc.

Key Features:

·        Superb High-definition Image

o   PTZ6012AI holds a 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60 fps.

·        Leading Focus Technology

o   Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.

·        Low Noise and High SNR

o   Low Noise CMOS effectively ensure high SNR of video. Advanced 2D/3D noise reduction technology is used to further reduce the noise, while ensuring image sharpness.

·        Audio Input

o   Interface Support 8000 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding.

·        Wide-range, Quiet and Quick Pan/Tilt Mechanism

o   Using step driving motor mechanism, PTZ6000AI camera works extremely quiet and moves smoothly without any noises.

·        Multiple Video Compression

o   Support H.264/H.265 video compression. Support compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channels 1920x1080p with 30 fps compression.

·        Multiple Network Protocols

o   Support ONVIF, GB/T28181, RTSP, RTMP protocols and support RTMP push mode, which is easy to link streaming media server, RTP multicast mode and network full command VISCA control protocol.

·        Multiple Control Protocols

o   Support VISCA, PELCO-D, PELCO-P protocols and automatic identification protocols.

·        Low-power Sleep Function

o   Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
