Yealink CTP18
A Collaborative Meeting Experience at Your Fingertips

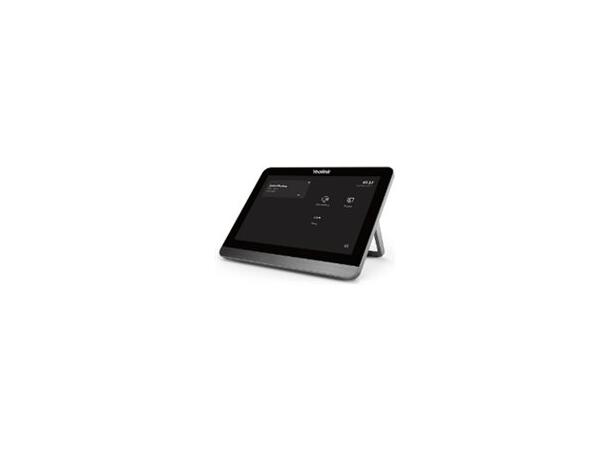

CTP18 is a collaboration touch panel designed for small and medium rooms. Its 8-inch touch screen and user-centered interactive design allow users to join or control a meeting quickly and effortlessly. It greatly reduces
the difficulty of using video conferencing system and creates a better meeting experience.

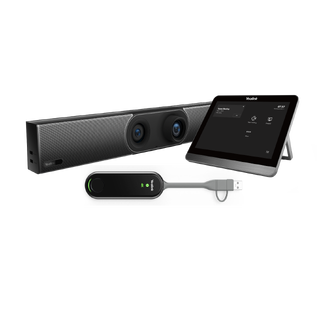

When CTP18 works with Yealink Wireless Presentation Pod WPP20, you can annotate or control the shared
content on CTP18 directly, thereby improving the communication efficiency.
Key Features
More Efficient Collaboration
Up to 4 CTP18 units can be used simultaneously in one system. Multiple participants
can annotate on the shared content at the same time. Besides, the real-time handwriting presentation allows participants to see what is being written with no latency
and makes discussions much more effective. When CTP18 works with Yealink Wireless Presentation Pod WPP20, you can gain reverse control from CTP18 over your
computer, getting a multi-screen interaction that assists you to achieve more.

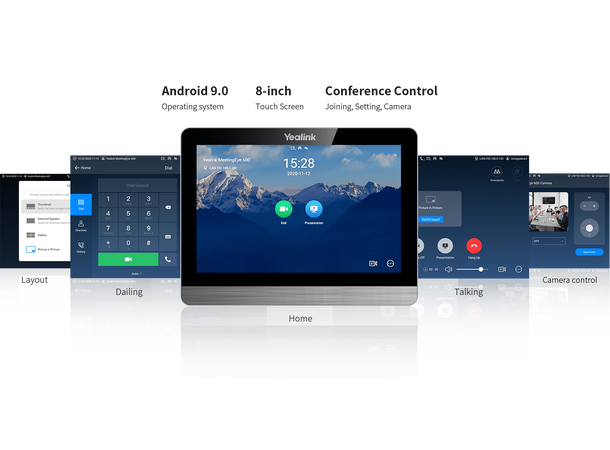

Richer and Easier Meeting Control Features
CTP18 adopts effortless and user-centered interaction design, making meeting
control more easier. The touch control of the screen outperforms traditional control
modes magnificently. You can create or join a meeting on the home screen, and all
meeting controls can be navigated on CTP18 with just a touch or a swipe of your finger, including previewing and adjusting the camera, changing the participant layouts,
recording, etc.
Clutter-Free Meeting Space
CTP18 supports PoE where one cable carries both data and power for the device.
Data transmission between CTP18 and the VCS endpoint is realized either by cable
or by Wi-Fi, which eliminates the tricky wiring connections between the TV area and
the conference table, saving you from remodeling the meeting spaces
Specifications
Connection
- Connect to VCS endpoint via cable
- Pair with the VCS endpoint in the same LAN (supported by later versions)
- Connect to VCS endpoint via Wi-Fi System
Compatibility
- MeetingEye 400/MeetingEye 600
- 4 or later versions
- Up to 4 CTP18 units can be used in one system - VC880/VC800/VC500
- Supported by later versions
- Up to 4 CTP18 units can be used in one system
- VC200/VC210
- Supported by later versions
- Up to 1 CTP18 unit can be used in one system
Wireless Network
- Wi-Fi
- 2.4G/5G Wi-Fi
- IEEE 802.11n/ac
- Support connecting to the Wi-Fi generated by
Yealink VCS endpoints only
Display
- Screen
- 8-inch IPS FHD capacitive touch screen
- Resolution
- 1280*800 (16:10)
- Touch
- 10 points multi-touch
Interface
- USB
- 1 x USB-C for device debugging - RJ45
- 1 x RJ45 Ethernet for power and data connection - Reset slot
- 1 x Reset slot
Accessories
- Wall Mount Bracket - 1 x wall mount bracket
- Security lock slot
- 1 x security lock slot for anti-theft
Other Physical Features
- Power supply
- Power over Ethernet (IEEE 802.3af) - Power input
- PoE 48V 0.27A - Power consumption
- 7W at most - Stand
- Adjustable angle (28°~50°) - Dimension (W*D*H)
- 202mm x 151mm x 100mm
