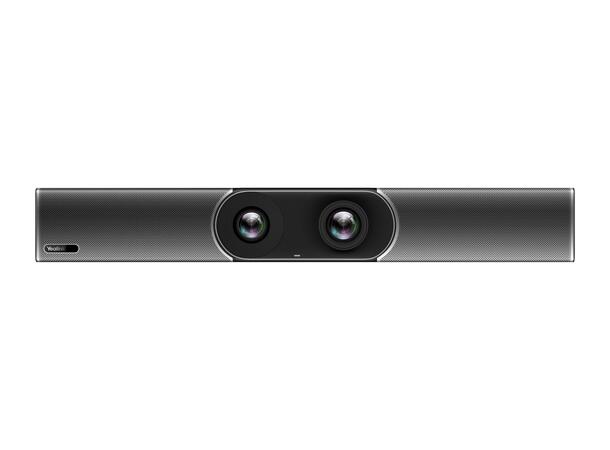

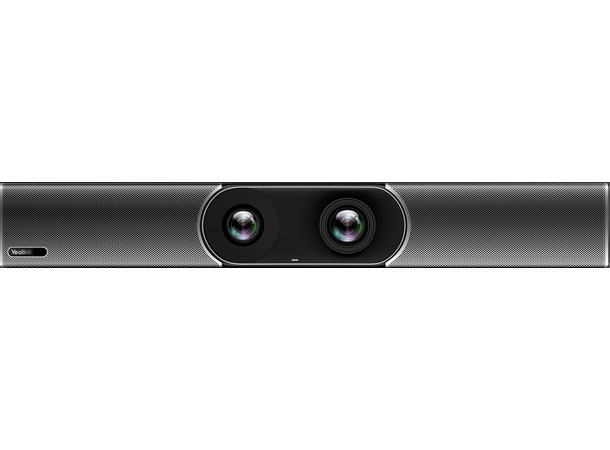

Yealink MeetingBar A30 Teams Edition, an all-in-one video collaboration bar for Medium rooms. Featuring 8MP camera and 120° superwide-angle lens, A30 delivers outstanding video quality. Together with the electric privacy shutter, its AI technologies including Auto Framing and Speaker Tracking and so on allow users to experience a smarter and safer video conference. With 8 MEMS microphone arrays and Yealink noise proof algorithm, A30 brings excellent audio experience in medium rooms even in full-duplex mode and ensures that everyone can be heard as well as seen. Supporting human body detection, A30 provides convenient and fast meeting experience. Moreover, A30 combines computing unit, camera, microphones, speaker, Wi-Fi, and Bluetooth, which provides you a solution of simple deployment. A30 supports for cloud video platforms like Zoom and Microsoft Teams means no PC or Mac is required. A30 is capable of content sharing and whiteboard that making the meeting more communicative and collaborative. Simple and flexible deployment but powerful features deliver excellent video collaboration performance.

Yealink CTP18

A Collaborative Meeting Experience at Your Fingertips

CTP18 is a collaboration touch panel designed for small and medium rooms. Its 8-inch touch screen and us[1]er-centered interactive design allow users to join or control a meeting quickly and effortlessly. It greatly reduces the difficulty of using video conferencing system and creates a better meeting experience. When CTP18 works with Yealink Wireless Presentation Pod WPP20, you can annotate or control the shared content on CTP18 directly, thereby improving the communication efficiency.

Specifications Yealink A30

Dual Camera System

• Wide Camera:
  - 8MP Camera
  - Field of view: 120°
  - 4x e-PTZ Camera
• Telephoto Camera:
  - 8MP Camera
  - Field of view: 90°
  - 10x Hybrid Zoom (3.5x optical, 3x digital)
  - Horizontal Rotation Angle: +25°/-25°
  - Vertically Rotation Angle: +16°/-16°
• Electric Privacy Shutter
• Intelligence Features
  - Auto Framing
  - Speaker Tracking

Audio

• Built-in 8 MEMS microphone array
• Support extention mic
• Two Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Beamforming directed voice pickup technology
• Full-duplex
• Echo cancellation

Operating System

• Android 9.0

Meeting Features

• Calendar
• One-click join
• Meeting collaboration
  - Content sharing
  - Whiteboard
• Meeting control:
  - Add participates
  - Hold/Resume
  - Camera On/Off
  - Mute/Unmute
  - Volume Up/Down
  - Hang up
• Teams Edition - Microsoft DM - Proximity join
• Zoom Edition - Zoom DM - Direct sharing

Video Standard and Network Suitability

• Video codecs: H.264 High profile
  H.264 SVC, H.264

Network and Security Features

• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X
  - EAP-MD5/EAP-TLS
  - PEAP-MSCHAPv2
  - EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate
• Simple Certificate Enrollment Protocol (SCEP)*
  coming soon

Connections

• 2 x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 2 x USB 2.0
• 1 x 10/100M/1000M Ethernet port
• 1 x Yealink extension port (RJ-45)
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Other Physical Features

• External Yealink Power Adapter: AC 100~240V
  input and DC 48V/0.7A Output
• USB Output: 5V 0.5A
• Power consumption (PSU): Idle < 13W; Normal operating: 15W; MAX: 16W
• Dimension (W.D.H): 700 mm x 98 mm x 121 mm

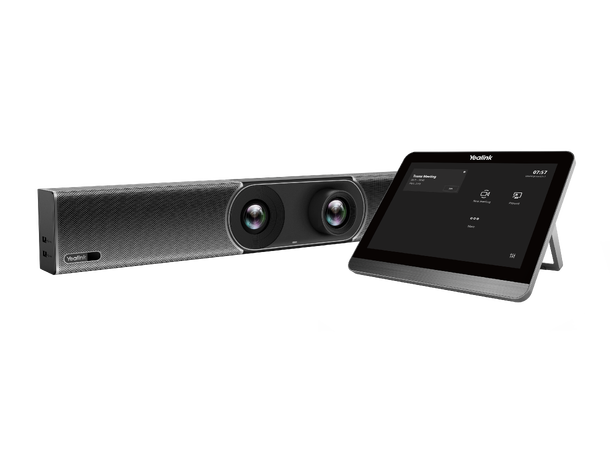

MeetingBar A30 + CTP18 Package

• Package contents:
  - MeetingBar A30 endpoint
  - 3m Ethernet cable
  - 2 x 1.8m HDMI cable
  - Mounting Bracket and Accessories
  - Power adapter - Quick Start Guide
  - CTP18 Touch Panel
• Carton Meas: 903*325*306mm
