Edbak Wall Mount PWB1 40-75"
Landscape | 600x400 | 80kg

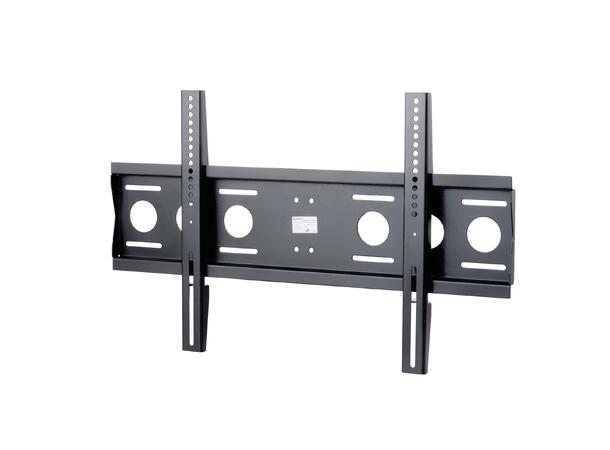

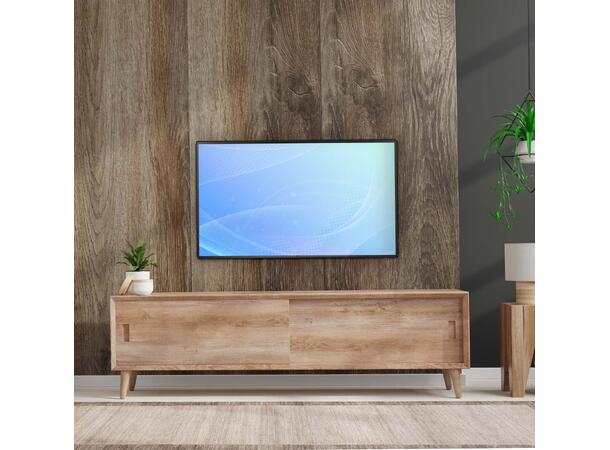

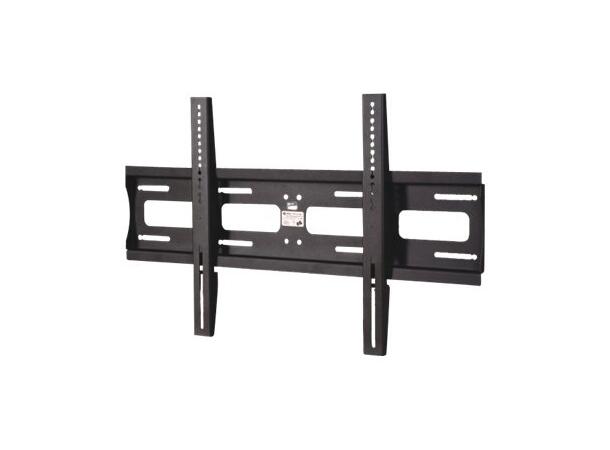

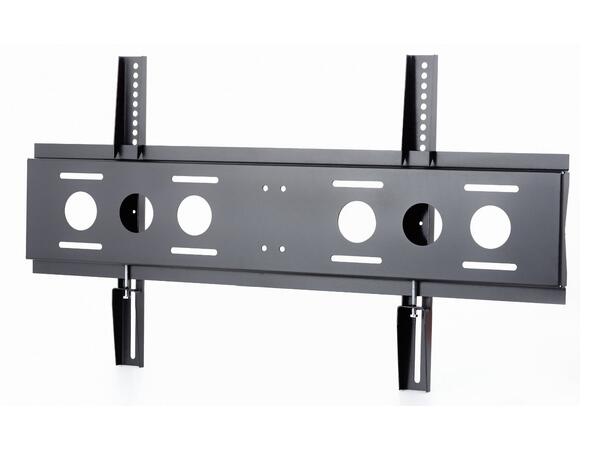

Designed for practical wall mounting of the screen. PWB1 is a robust flat wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. PWB1 is dedicated both as a standalone mount and as a component for other structures, including conference trolleys or ceiling mounts. Screen protection against falling, robust finish and, at the same time, modern design allow the use of PWB1 in conference rooms, waiting rooms or public areas.
- Screen protection against falling
- Robust design to ensure load capacity up to 80 kg

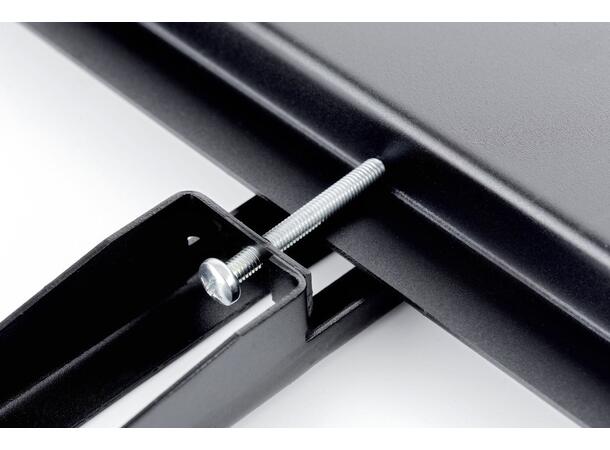

- Screen mounting screws included
- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on concrete, plaster and wooden walls
- Minimalist design and functionality
- Simple and quick installation
- Modern design
| Index |
PWB1 |
| Category |
Flat Wall Mounts |
| Product
group |
Display Mounts |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number
of screens |
1 |
| Minimum
screen size |
40" |
| Maximum
screen size |
75" |
| Maximum
load |
80 kg |
| VESA
Mounting Compatibility |
100×100 up to 600×400 |
| Product
dimensions |
W: 660 mm D: 38 mm H: 490 mm
(W: 25,98" D: 1,50" H: 19,29") |
| Product
weight |
3,4 kg (7,49 lb) |
| Max.
distance from mounting surface |
38 mm (1,50") |
| Min.
distance from mounting surface |
38 mm (1,50") |
| Max.
mounting pattern |
620 mm x 460 mm |
| Min.
mounting pattern |
50 mm x 95 mm |
| Index |
WUSC-PWB1c-B |
| EAN
Code |
5908252960156
|
| Color |
Black |
| Package
Dimensions |
820 mm x 220 mm x 38 mm (32,28?
x 8,66? x 1,50?) |
| Package
Weight |
4,0 kg (8,82 lb) |
| Country
of origin |
Poland |
