EDBAK Veggfeste PWB2 42-75" -6/12° tilt

Maks VESA 700x400, 80Kg, Svart

Varenr: 38996
Alt. varenr: PWB2c-B
BeskrivelseTeknisk infoTilbehørAlternativerEkstern Info
Beskrivelse

PWB2

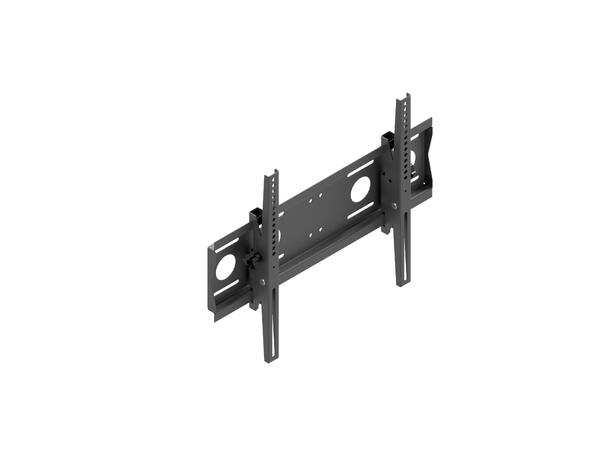

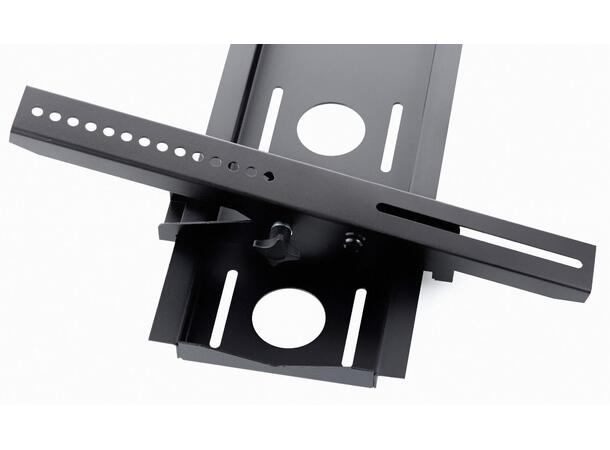

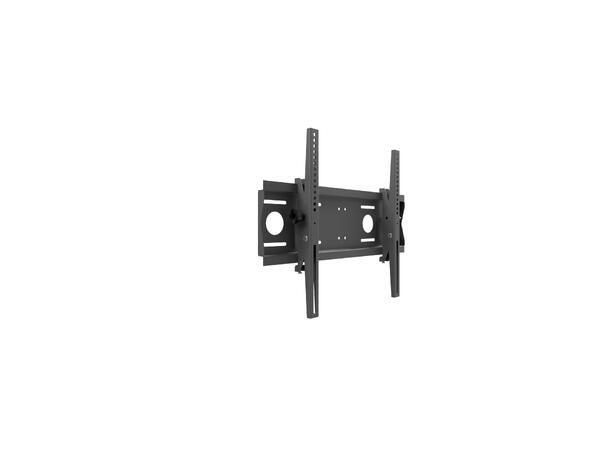

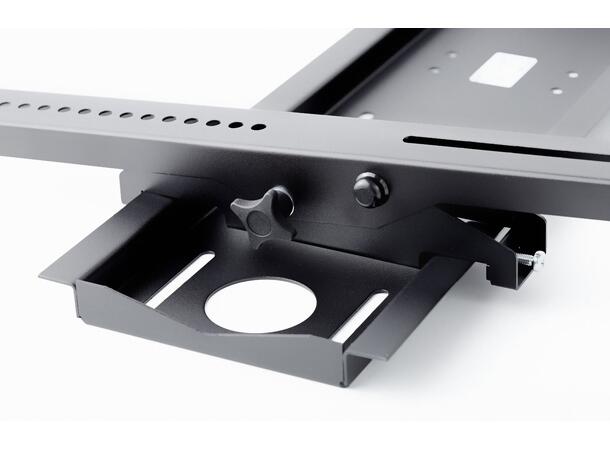

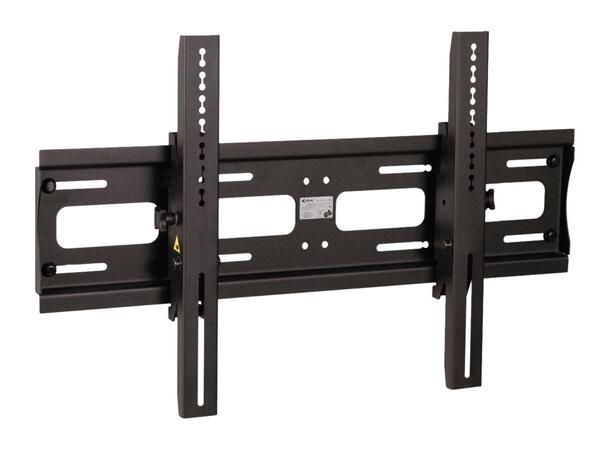

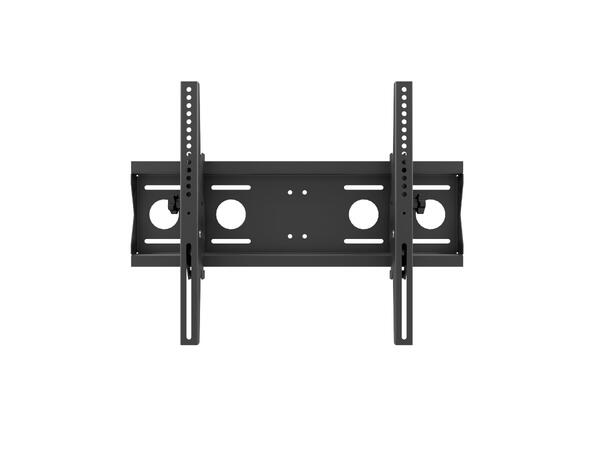

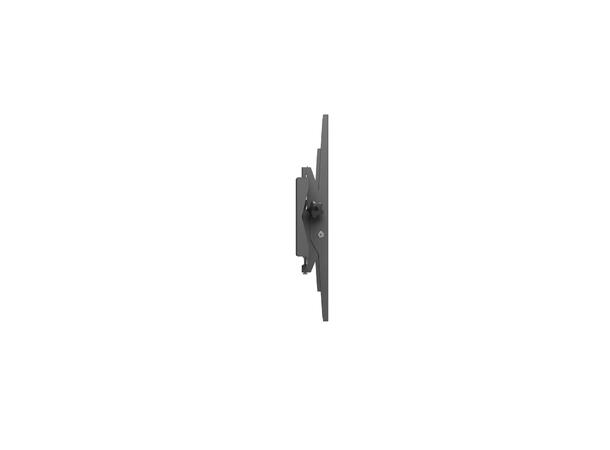

Universal Flat Wall Mount for 42"- 75" Screens

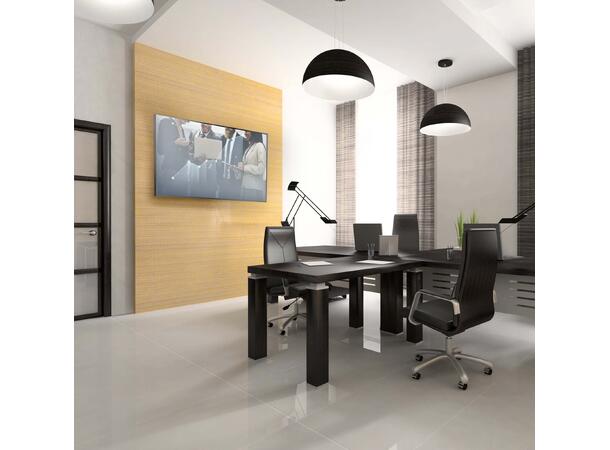

Designed for the installation of medium-sized screens. PWB2 is a robust, tilting wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of PWB2 in conference rooms, waiting rooms or public areas.

  • Robust design to ensure load capacity up to 80 kg
  • Screen protection against falling
  • Screen mounting screws included
  • Simple and fast installation
  • Lateral adjustment of the screen once mounted on the wall plate
  • Suitable for installation on brick, concrete, plaster and wooden walls
  • Minimalist design and functionality
  • Modern design





IndexPWB2
CategoryTilt Wall Mounts
Product groupDisplay Mounts
ColorBlack
WarrantyLimited 5-year’s
Number of screens1
Minimum screen size42"
Maximum screen size75"
Maximum load80 kg
Forward tilting-6,5° / +12°
VESA Mounting Compatibility100×100 up to 600×400
Product dimensionsW: 800 mm D: 76 mm H: 500 mm (W: 31,50" D: 2,99" H: 19,69")
Product weight5,2 kg (11 lb)
Max. distance from mounting surface76 mm (2,99")
Min. distance from mounting surface76 mm (2,99")
Max. mounting pattern740 mm x 460 mm
Min. mounting pattern70 mm x 95 mm
IndexWUSC-PWB2c-B
EAN Code5902841103672
ColorBlack
Package Dimensions830 mm x 220 mm x 80 mm (32,68" x 8,66" x 3,15")
Package Weight5,5 kg (12 lb)
HS Code (Harmonized System)732690
HTS Code (Harmonized Tariff Schedule)7326909890
Country of originPoland







Teknisk info

Produktinformasjon

Farge Svart
