LinkIT QSFP28 100Gbps PSM4 2km Intel
4 x 25Gbps | 1310nm | DDM | MPO/MTP-12
This transceiver is intended for up to 2km reach service with four-lane 25.78125G data rate. It is based on 3.3V DC power supply and operates in the commercial temperature range. It is compliant with QSFP MSA, SFF-8436, SFF-8636 and PSM4 MSA. Digital diagnostic functions are available via I2C interface,and the control functions can be achieved by LVTTL interfaces on the host. The transceiver incorporates a four-laser array which is usually DFB ?four-PIN diode array ?a high performance CDR integrated four drivers and TIAs IC separately. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device can operate in Class IV safely.
Applications:
100 Gigabit Ethernet
100 Gigabit Infiniband
Features:
- MPO-12 connector
- SingelModeFiber
- 1310 nm
- Supports Base-8 cabling
- OS2_500m
- 4 x TX
- 4 x RX

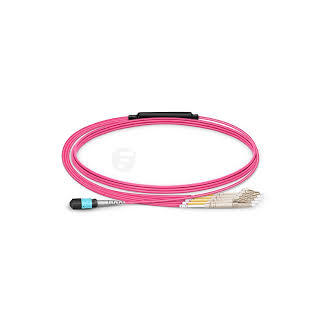

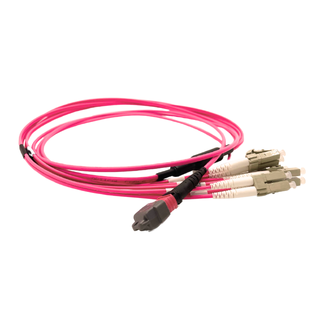

- Breakout to 4x 25 Gigabit through splitter cable og cassettes system
- Hot-pluggable
- DDM
Main Specifications
| Brand | LinkIT |
|---|
| Wave length (nm) | 1310 |
|---|
| Distance | Up to 2km |
|---|
Extended Specifications
| Transmission speed | 400Gbps |
|---|
| Fibre type | SMF |
|---|
| Standards | CMIS4.0 or SFF8636, SFF 8679, IEEE 802.3cd |
|---|
| Temperature | 0ºC to +70 ºC |
|---|
| Coding | Intel |
|---|
| Certifications | CE, RoHS |
|---|
