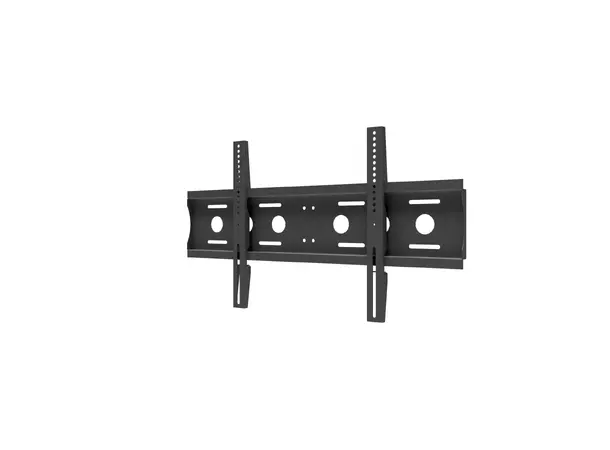

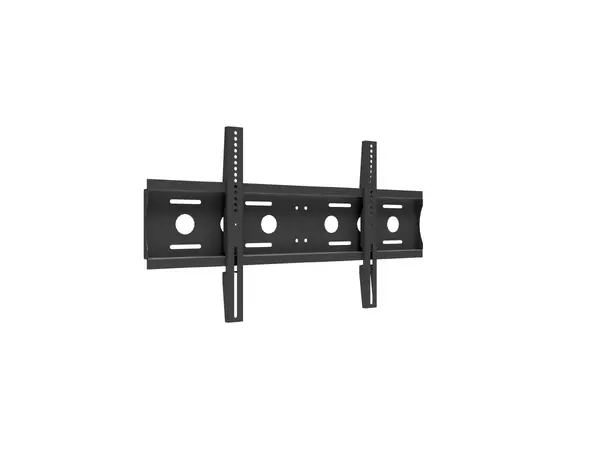

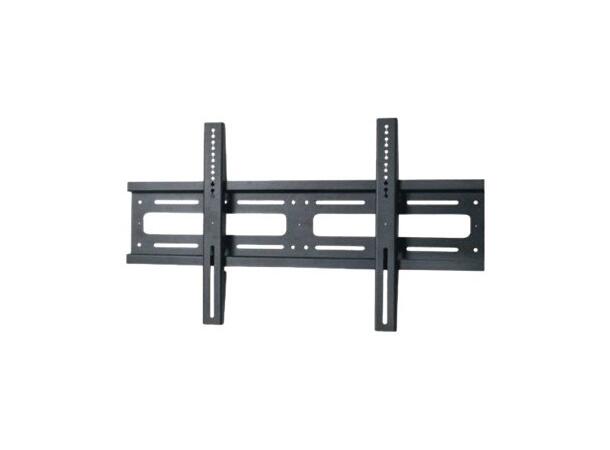

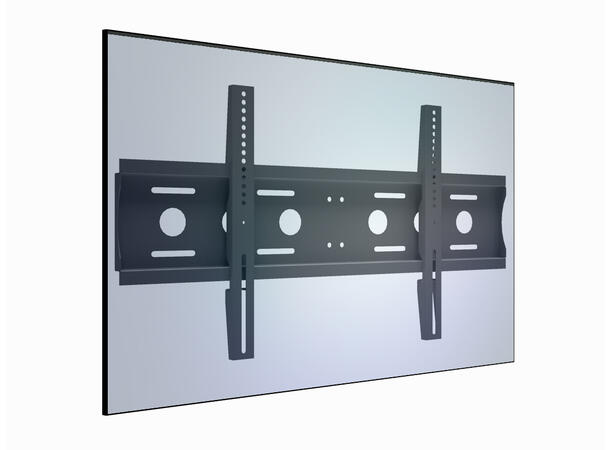

TWB1

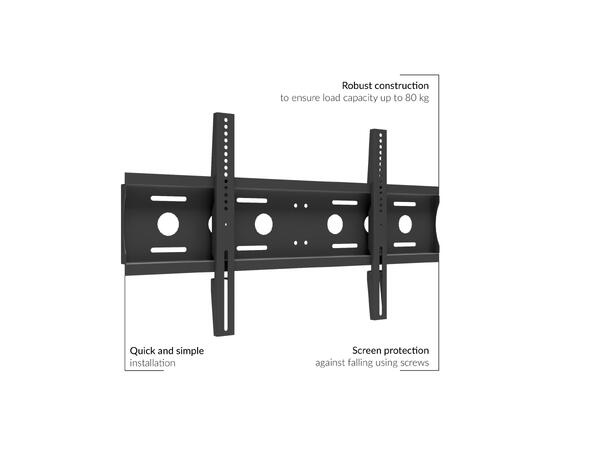

Universal Flat Wall Mount for 50"-86" Screens

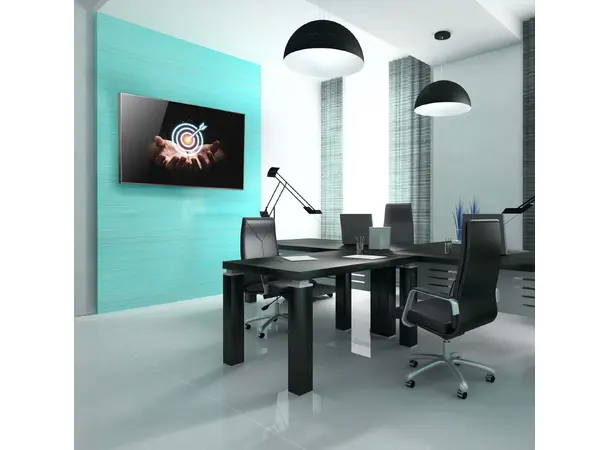

Designed for practical wall mounting of the screen. TWB1 is made of metal elements, very robust and, at the same time, aesthetically finished. By protecting the screen from falling, this mount is perfect for public areas. Dedicated both as a standalone mount and as a component for other structures, including conference trolleys or ceiling mounts. The TWB1 wall mount is a guarantee of robustness, featuring modern solutions.
- Universal design – Suitable for 50"-86" screens
- Wide range of VESA mounting holes
- Screen protection against falling
- Screen mounting screws included
- 3 mm heavy duty steel
- Robust construction to ensure load capacity up to 80 kg

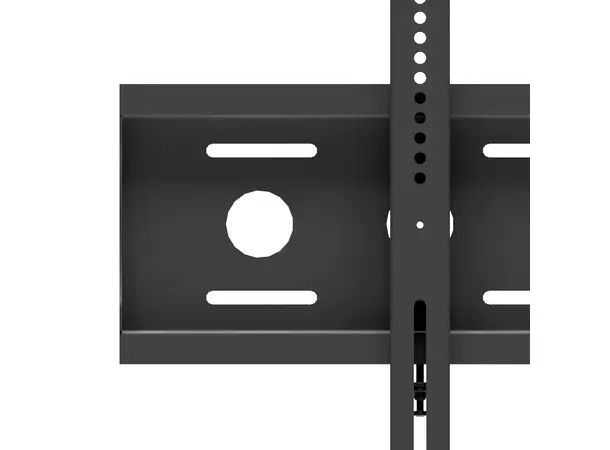

- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on brick, concrete, plaster and wooden walls
- Quick and simple screen installation
| Index |
TWB1 |
| Category |
Flat Wall Mounts |
| Product group |
Display Mounts |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
1 |
| Minimum screen size |
50" |
| Maximum screen size |
86" |
| Maximum load |
80 kg |
| VESA Mounting Compatibility |
100×100 up to
800×400 |
|
|

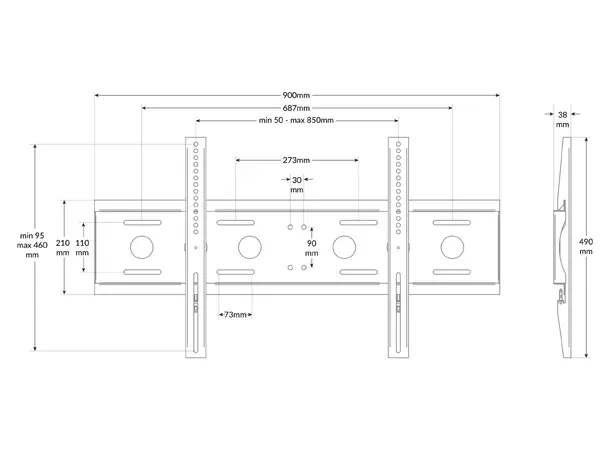

| Product
dimensions |
W: 900 mm, D: 38 mm,
H: 490 mm (35,43" x 1,50" x 19,29") |
| Product weight |
4,6 kg (10 lb) |

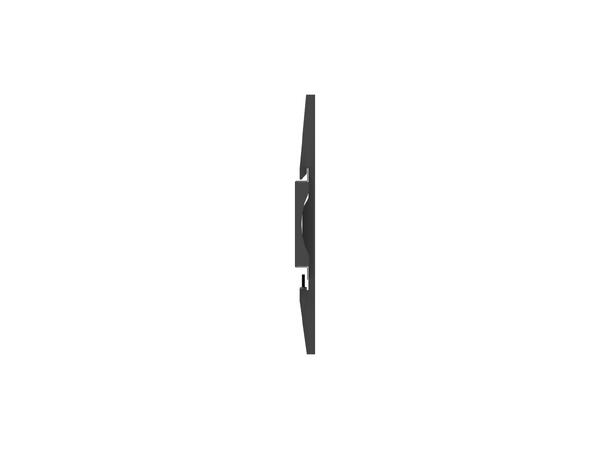

| Max. distance from mounting surface |
38 mm (1,50") |
| Min. distance from mounting surface |
38 mm (1,50") |
| Max. mounting pattern |
850 mm x 460 mm |
| Min. mounting pattern |
50 mm x 95 mm |
|
|
| Index |
WUSC-TWB1c-B |
| EAN Code |
5908252960859 |
| Color |
Black |
| Package Dimensions |
930 mm x 220 mm x 40
mm (36,61" x 8,66" x 1,57") |
| Package Weight |
5,5 kg (12 lb) |
| HS Code (Harmonized System) |
732690 |
| HTS Code (Harmonized Tariff Schedule) |
7326909890 |
| Country of origin |
Poland |
