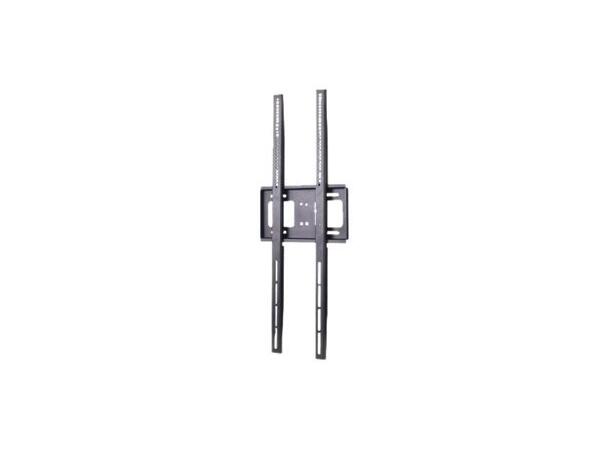

PWB3
Universal Portrait Wall Mount for 40"-75" Screens

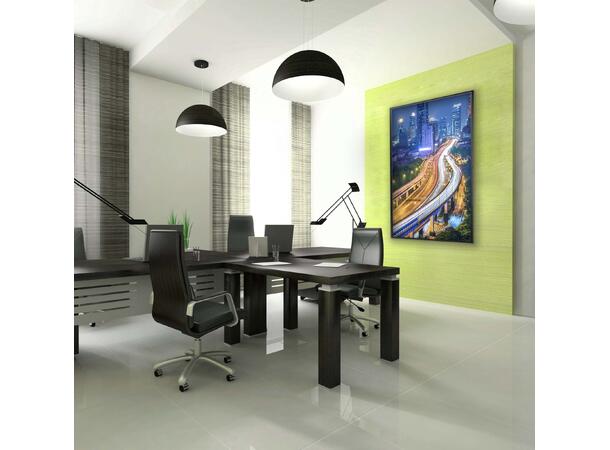

Designed for practical portrait installation of the screen. PWB3 is a robust flat wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of PWB3 in conference rooms, waiting rooms or public areas.
- Portrait installation of the screen
- Screen protection against falling
- Screen mounting screws included
- Robust design to ensure load capacity up to 80 kg
- Simple and quick installation
- Minimalist design and functionality
- Modern design
| Index |
PWB3 |
| Category |
Flat Wall Mounts |
| Product group |
Display Mounts |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
1 |
| Minimum screen size |
40" |
| Maximum screen size |
75" |
| Maximum load |
80 kg |
| VESA Mounting Compatibility |
100×100 up to
400×600 |
|
|
| Product
dimensions |
W: 458 mm D: 45 mm
H: 780 mm (W: 18,03" D: 1,77" H: 30,71") |
| Product weight |
6,5 kg (14 lb) |
| Max. distance from mounting surface |
45 mm (1,77") |
| Min. distance from mounting surface |
45 mm (1,77") |
| Max. mounting pattern |
400 mm x 750 mm |
| Min. mounting pattern |
50 mm x 100 mm |
|
|
| Index |
WUSC-PWB3c-B |
| EAN Code |
5908252960910 |
| Color |
Black |
| Package
Dimensions |
790 x 350 x 70 mm |
| (31,10?
x 13,78? x 2,76?) |
| Package Weight |
7,2 kg (16 lb) |
| HS Code (Harmonized System) |
732690 |
| HTS Code (Harmonized Tariff Schedule) |
7326909890 |
| Country of origin |
Poland |
