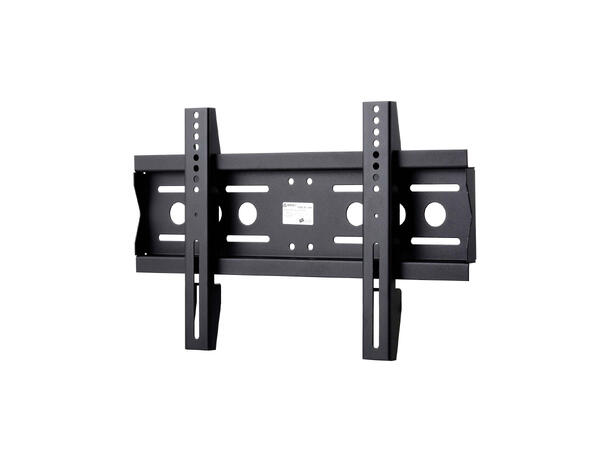

LWB1
Universal Flat Wall Mount for 32"-43" Screens

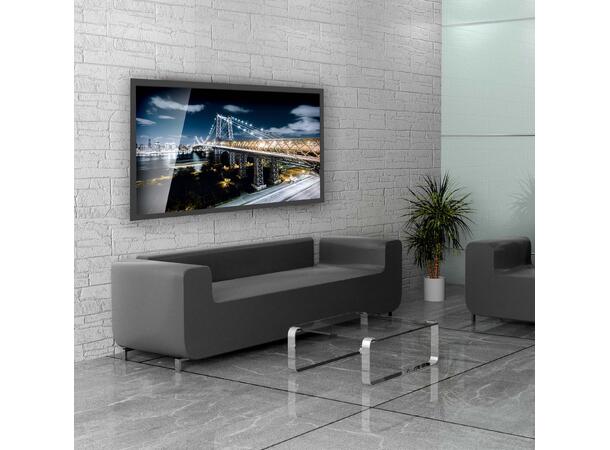

Designed for smaller screens up to 43". Easy to install on various types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of LWB1 in both home and professional environments, including conference rooms or waiting rooms.
Robust construction to ensure load capacity up to 60 kg

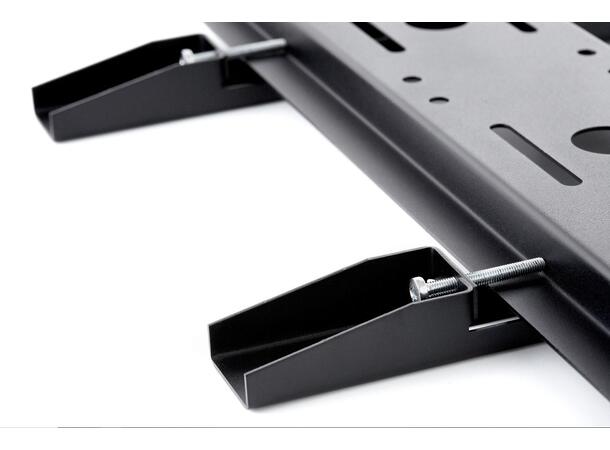

Screen protection against falling using screws
Screen mounting screws included
Quick and simple installation
Lateral adjustment of the screen once mounted on the wall plate
Suitable for installation on brick, concrete, plaster and wooden walls
Index |
LWB1 |
Category |
Flat Wall Mounts |
Product group |
Display Mounts |
Color |
Black |
Warranty |
Limited 5-year’s |
Number of screens |
1 |
Minimum screen size |
32" |
Maximum screen size |
43" |
Maximum load |
60 kg |
VESA Mounting Compatibility |
100×100 up to
400×300 |
|
|
Product dimensions |
W: 540 mm D: 41 mm
H: 340 mm (W: 21,26" D: 1,61" H: 13,392") |
Product weight |
2,5 kg (6 lb) |
Max. distance from mounting surface |
41 mm (1,61") |
Min. distance from mounting surface |
41 mm (1,61") |
Max. mounting pattern |
490 mm x 290 mm |
Min. mounting pattern |
50 mm x 75 mm |
|
|
Index |
WUSC-LWB1c-B |
EAN Code |
5908252968497 |
Color |
Black |
Package Dimensions |
570 mm x 180 mm x 45
mm (22,44" x 7,09" x 1,77") |
Package Weight |
3 kg (7 lb) |
HS Code (Harmonized System) |
732690 |
HTS Code (Harmonized Tariff Schedule) |
7326909890 |
Country of origin |
Poland |
