PWB2
Universal Flat Wall Mount for 42"- 75" Screens

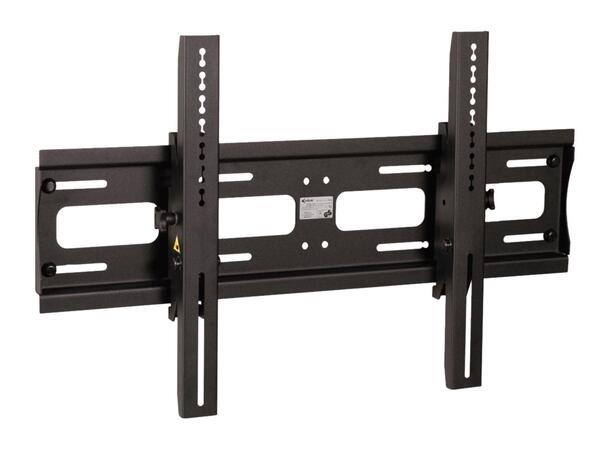

Designed for the installation of medium-sized screens. PWB2 is a robust, tilting wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of PWB2 in conference rooms, waiting rooms or public areas.
- Robust design to ensure load capacity up to 80 kg
- Screen protection against falling
- Screen mounting screws included
- Simple and fast installation
- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on brick, concrete, plaster and wooden walls
- Minimalist design and functionality
- Modern design
| Index |
PWB2 |
| Category |
Tilt Wall Mounts |
| Product group |
Display Mounts |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
1 |
| Minimum screen size |
42" |
| Maximum screen size |
75" |
| Maximum load |
80 kg |
| Forward tilting |
-6,5° / +12° |
| VESA Mounting Compatibility |
100×100 up to
600×400 |
|
|
| Product
dimensions |
W: 800 mm D: 76 mm
H: 500 mm (W: 31,50" D: 2,99" H: 19,69") |
| Product weight |
5,2 kg (11 lb) |
| Max. distance from mounting surface |
76 mm (2,99") |
| Min. distance from mounting surface |
76 mm (2,99") |
| Max. mounting pattern |
740 mm x 460 mm |
| Min. mounting pattern |
70 mm x 95 mm |
|
|
| Index |
WUSC-PWB2c-B |
| EAN Code |
5902841103672 |
| Color |
Black |
| Package Dimensions |
830 mm x 220 mm x 80
mm (32,68" x 8,66" x 3,15") |
| Package Weight |
5,5 kg (12 lb) |
| HS Code (Harmonized System) |
732690 |
| HTS Code (Harmonized Tariff Schedule) |
7326909890 |
| Country of origin |
Poland |
