Edbak Väggfäste Tilt 65-86" VESA 800x400 | 80Kg | Svart Edbak Väggfäste Tilt 65-86" VESA 800x400 | 80Kg | Svart Edbak Väggfäste Tilt 65-86" VESA 800x400 | 80Kg | Svart Edbak Väggfäste Tilt 65-86" VESA 800x400 | 80Kg | Svart Edbak Väggfäste Tilt 65-86" VESA 800x400 | 80Kg | Svart

Edbak Väggfäste Tilt 65-86"

VESA 800x400 | 80Kg | Svart

Varunummer: 38997
Alt. varunr: TWB2c-B
BeskrivningTeknisk infoTillbehörAlternativExtern Info
Beskrivning

TWB2

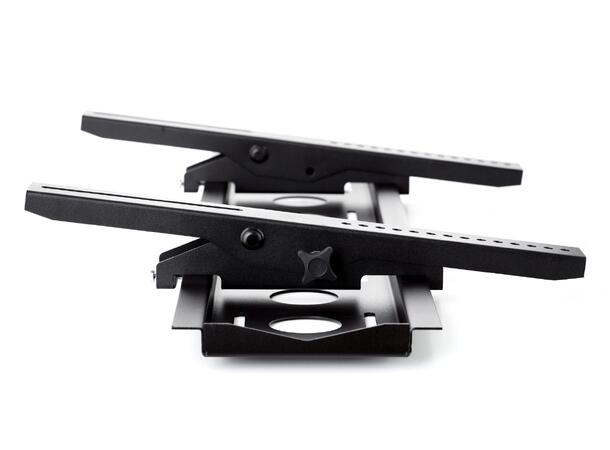

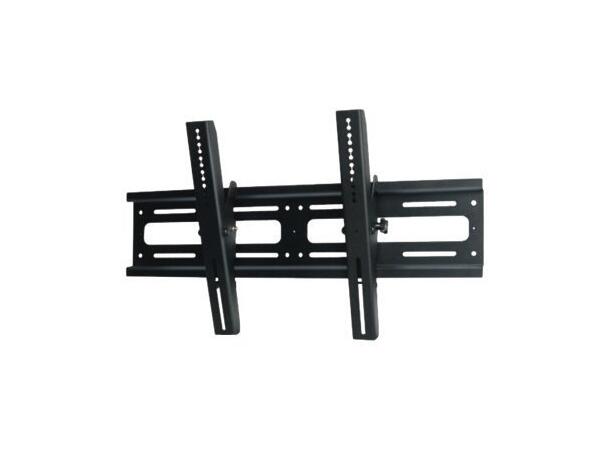

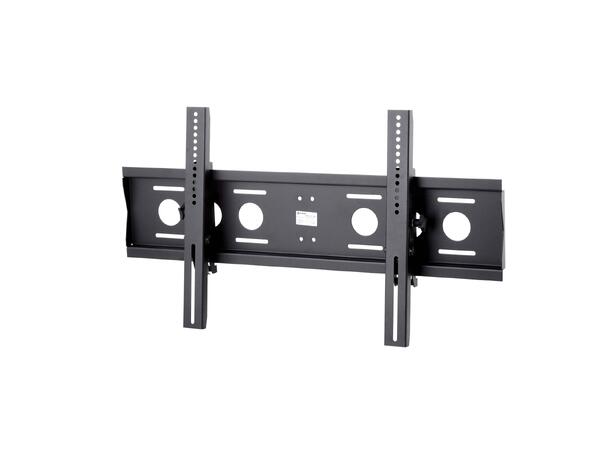

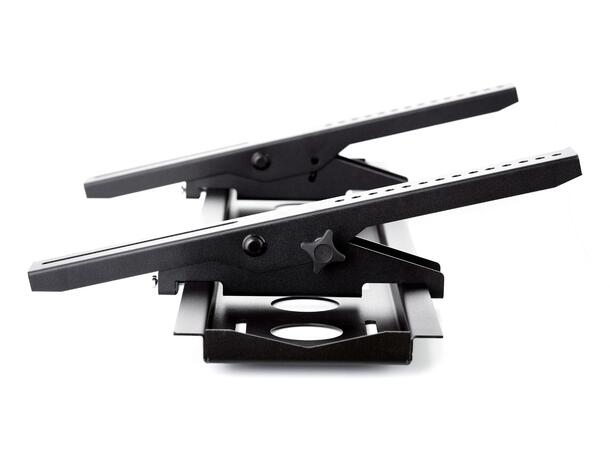

Universal Tilt Wall Mount for 65"-86" Screens



Designed for the installation of medium-sized screens from 65? to 86?. TWB2 is a robust, tilting wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of TWB2 in conference rooms, waiting rooms or public areas.



  • Lateral adjustment of the screen once mounted on the wall plate
  • Suitable for installation on brick, concrete, plaster and wooden walls
  • Robust design to ensure load capacity up to 80 kg
  • Posibility of tilting from -10° to +5°
  • Wide range of VESA mounting holes
  • Screen protection against falling
  • Screen mounting screws included
  • Minimalist design and functionality
  • Modern design
  • Simple and quick installation





Specifications



 Index  TWB2
 Category  Tilt Wall Mounts
 Product group  Display Mounts
 Color  Black
 Warranty  Limited 5-year’s
 Number of screens  1
 Minimum screen size  65"
 Maximum screen size  86"
 Tilt  -10°/+5°
 Maximum load  80 kg
 VESA Mounting Compatibility  100×100 up to 800×400

 Product dimensions  W: 900 mm D: 77 mm H: 500 mm (W: 35,43" D: 3,03" H: 19,69")
 Product weight  5,5 kg (12 lb)
 Max. distance from mounting surface  77 mm (3,03")
 Min. distance from mounting surface  77 mm (3,03")
 Max. mounting pattern  845 mm x 460 mm
 Min. mounting pattern  70 mm x 95 mm

 SAP Index  WUSC-TWB2c-B
 EAN Code  5908250000000
 Color  Black
 Package Dimensions  925 x 220 x 80 mm
 (36,42 x 8,66 x 3,15?)
 Package Weight  6 kg (13 lb)
 Country of origin  Poland
