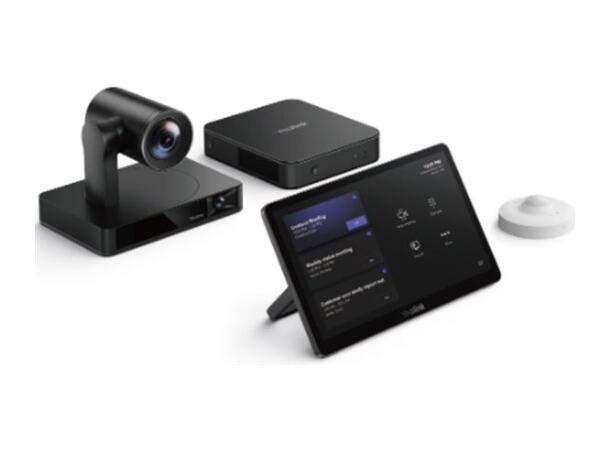

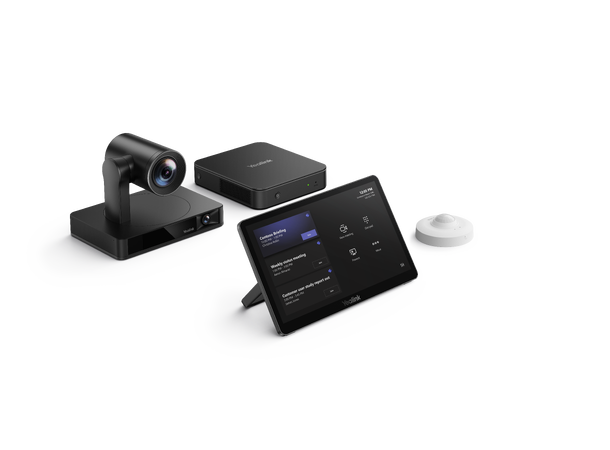

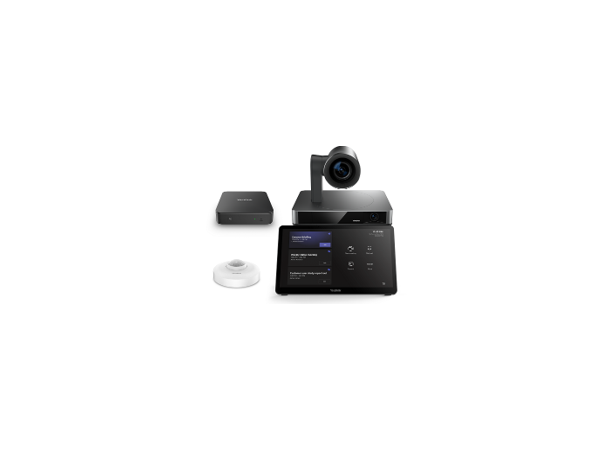

Yealink MVC860-C5-000

Teams System, Medium and Large rooms

Yealink MVC series are native and easy-to-use video conferencing solutions specially designed for Microsoft Teams rooms. The MVC series provides a full-scene video conference solution to cover all of the meeting rooms from small to large. According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. In the design of mini-PC, it takes into account both aesthetics and practicability, that fully integrating the cable management with itself to provide a flexible and reliable deployment solution for any meeting room. The MVC series features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join.

Key Features and Benefits

Native Microsoft Teams-tailored user interface, smooth conference experience

Native Microsoft Teams-tailored user interface offers a one-touch meeting join. Designed with the idea of multi-function all-in-one, the MTouch II touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch II has a built-in Human Motion Sensor that the conference system can be automatically waken up and you can immediately start the conference.

Smooth tracking feature & multiple audio solution

Yealink UVC86 camera allows for the auto-framing of all participants present at a meeting, speaker-tracking of the speaker talking at a meeting, and presenter-tracking of the presenter at a meeting, freeing your hands and focusing on the meeting itself. Meanwhile, with theYealink camera control plug-in and camera presets supported, the mechanical pan, tilt and zoom can be easily done quietly in one step. Empowered with 12x optical zoom, UVC86 supports 4K video calls that conducts business to capture everyone in the meeting room clearly.the UVC86 delivers face to face, intelligent and smooth video experience by precisely reproducing every moment and detail, always showing the best picture of your room. You can also select VCM34/VCM38/CPW90 array microphones to work with MVC860. Also, Yealink Noise Proof technology effectively eliminates background distractions and noises that you can enjoy a crystal-clear voice even in a noisy environment.

Content sharing in real time

The unique wireless content sharing solution provides participants with maximum flexibility, that a one-click content sharing can be simply realized by plugging into the WPP20 only. With a high resolution of 1080P/30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C port or HDMI port.

Simple to deploy, easy to use

With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the same time, its all-in-one design with the feature of cable management ensure the stability of the wire connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.

Manage your devices remotely

This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.

Specifications

Package Content

MCore Pro Mini-PC
MTouch Plus
UVC86 USB PTZ camera
RoomSensor

Preload

Windows 10 IoT Enterprise X64
Windows 10 IoT Enterprise License
Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
Yeallink RoomConnect MCore

MCore Pro

Intel® Core 11th i5 processor
Windows 10 IoT Enterprise x64 operating system
Memory: 8GB (2 x 4GB)
Storage: 128GB SSD
3 x HDMI video output with CEC supported
Bluetooth and Wi-Fi
1 x Yealink VCH port (RJ45), connect to MTouch II
4 x USB3.0 Type-A
1 x 10/100/1000M Ethernet port
1 x Power port
1 x Security lock slot

MTouch Plus

11.6-inch Anti-fingerprint & Anti-glare IPS Screen
1920 × 1080 Resolution
Supports Power Supply for PC (Content Sharing)
Three Deployment Methods

UVC86 USB PTZ Camera

4K camera
20.4 × HD zoom (12x optical, 1.7× digital)
Field of view (diagonal): PTZ camera: 90° DFOV, 81° HFOV, 50° VFOVpanoramic camera: 120° DFOV, 110° HFOV, 78° VFOV
Auto Framing
Speaker Tracking
Presenter Tracking
Camera presets
Pan range: 200°
Tilt range: 130°
1 x HDMI out
1 x Yealink VCH port (RJ45) for audio devices, BYOD extender or Yealink Codec
1 x USB 3.0 Type-B
1 x USB 2.0 Type-A
1 x Power port
1 x Security lock slot
1 x Reset slot
