Smartmetals LIFT XL B SCREEN MAX 86" , 1 20KG Smartmetals LIFT XL B SCREEN MAX 86" , 1 20KG Smartmetals LIFT XL B SCREEN MAX 86" , 1 20KG Smartmetals LIFT XL B SCREEN MAX 86" , 1 20KG

Smartmetals LIFT XL B SCREEN MAX 86" , 1

20KG

Varunummer: 134915
Alt. varunr: S052.7200
BeskrivningTeknisk infoTillbehörExtern Info
Beskrivning

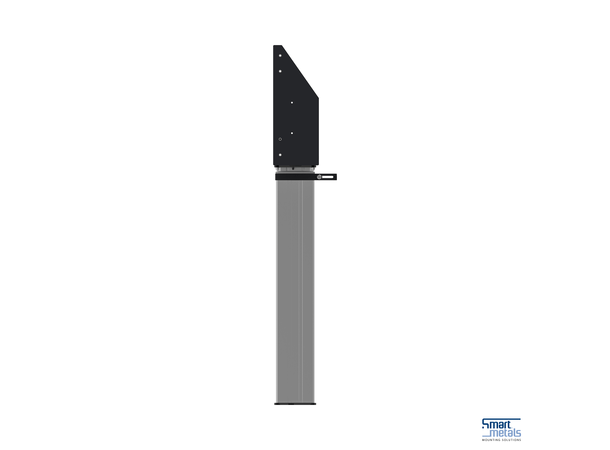

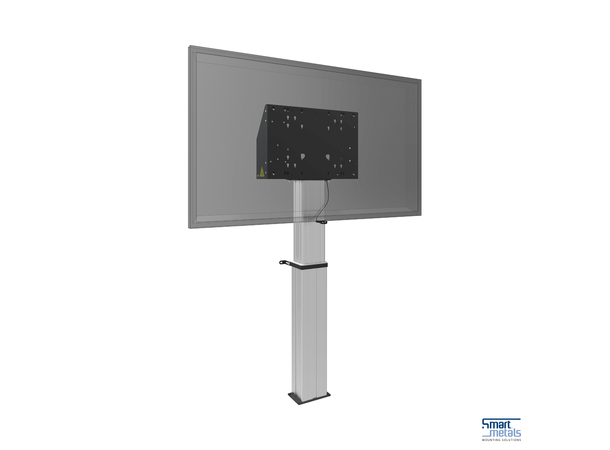

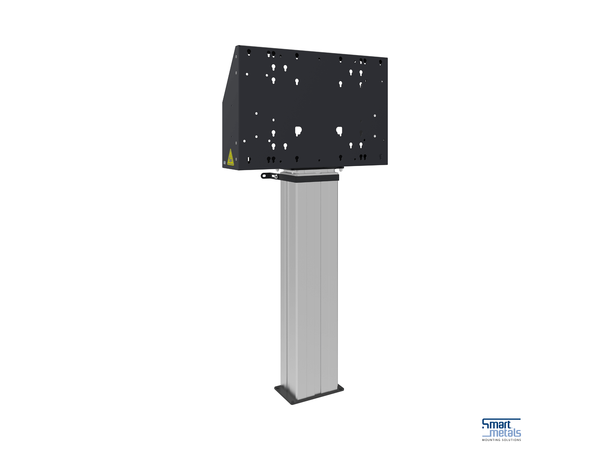

This motorized display lift allows you to effortlessly adjust the height of your display or interactive display. With a range of some 60 cm in motorized height adjustment, this is the ultimate solution for anyone looking for a flexible display set-up.

Suitable for almost all displays
The lift is suitable for displays with a maximum size of 86 inch and weighing up to 135 kg.

Adjustability
The motorized lift is adjustable in height by up to 60 cm, ensuring that your display is always at the perfect height for optimal visibility and interaction.

Floor mounting
The display lift can be quickly and easily mounted on the floor.

Safety first
To increase the safety of your environment, many motorized trolleys are equipped with an anti-collision system. This is not standard on this trolley. To add this functionality to this system, you must order the separate anti-collision module S052.7217. ( Look under accessories)

Extra reinforcement

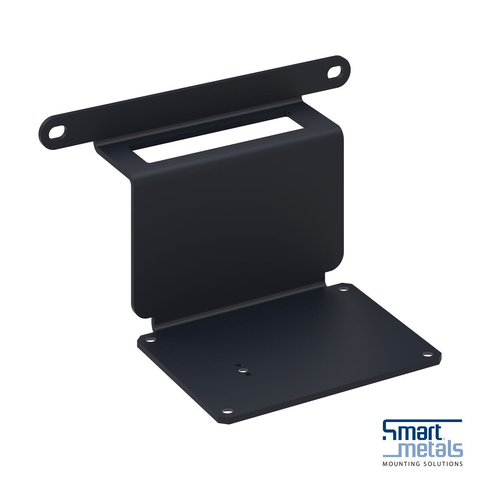

For extra reinforcement, an adjustable wall mount is included. This provides added stability and safety even when using larger displays.



Specifications For S052.7200 Motorized Display Floor-Wall Lift

EAN single box

8718868870322

Product group

Motorized lift module

Guarantee

5 years

Colour

Silver

Suitable for screen type

  • LCD

Motorized

Yes

Min. distance to floor - center display (mm)

1145

Max. distance to floor - center display (mm)

1745

Height adjustment (mm)

600

Liftspeed

20 mm/s

Max. weight load (kg)

135

Max. weight load (lbs)

297.62

Min. screen size (inch)

55

Max. screen size (inch)

86

Min. horizontal hole pattern (mm)

100

Max. horizontal hole pattern (mm)

800

Min. vertical hole pattern (mm)

100

Max. vertical hole pattern (mm)

600
