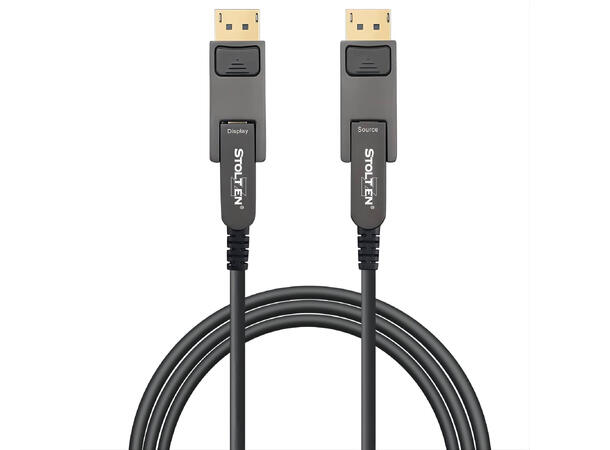

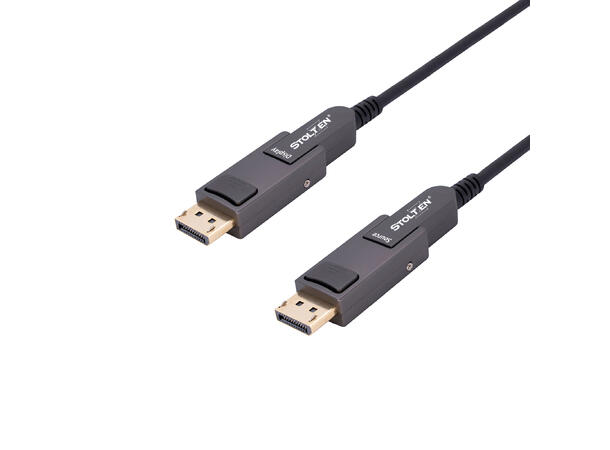

Stoltzen AOC DisplayPort 1.4 32Gbps | 8K@60 | 4K@120 | m/ Adapter Stoltzen AOC DisplayPort 1.4 32Gbps | 8K@60 | 4K@120 | m/ Adapter

Stoltzen AOC DisplayPort 1.4

32Gbps | 8K@60 | 4K@120 | m/ Adapter

Varunummer: 131014
Alt. varunr: AOC-DP-ADAPT-
BeskrivningTeknisk infoExtern Info
Beskrivning

DisplayPort 1.4 Series

32Gbps | 8K@60 | 4K@120 | m/ Adapter



The mDP active optical DisplayPort 1.4 cable transmits uncompressed audio and video signals up to 100m distance. It’s designed for professional applications. With mini DP to DP adapter on both ends that design for using in narrow place. With it’s advanced optical engine the DisplayPort hybrid cable provides full DisplayPort signal integrity and supports transparent EDID, HDCP and DPCP as well as zero frame delay, no latency, no compression. Connect and perform.



 Signal Transmission
 Transmission modes Digital audio and video signals
 Standard DisplayPort 1.4, HBR2, HBR3,HDCP, EDID
 Bandwidth 32Gbps
 Resolution Up to 8k@60Hz/4k@120Hz/UltraHD/ 2160p(4096x2160)@60Hz,  4:4:4
 Supported audio Up to 8 channels with 16 or 24 bits linear PCM 32 to 192 kHz sampling rates



 Connections
 Connector material Die cast zinc alloy
 Contact material 24 carat gold plated
 Shielding Triple shielded (Fiber / Copper Hybrid)
 Connector 1 Mini DisplayPort male+ mini DP to DP adapter
 Connector 1 dimensions 78 x 20 mm
 Connector 2 Mini DisplayPort male+ mini DP to DP adapter
 Connector 2 dimensions 78 x 20 mm



 Cable
 Type Round cable, Hybrid cable
 Inner conductor material 4x fiber and 8x Copper wire
 Outer sheath material LSZH CPR
 Outer sheath diameter 4.8mm
 Bend radius 20mm
 Connector Pulling strength(max) 25kg (250N)



Teknisk info

Produktinformasjon

Kabeltyp DisplayPort
Standard
  • DP 1.2
  • DP 1.3
  • DP 1.4
Utgång DisplayPort
