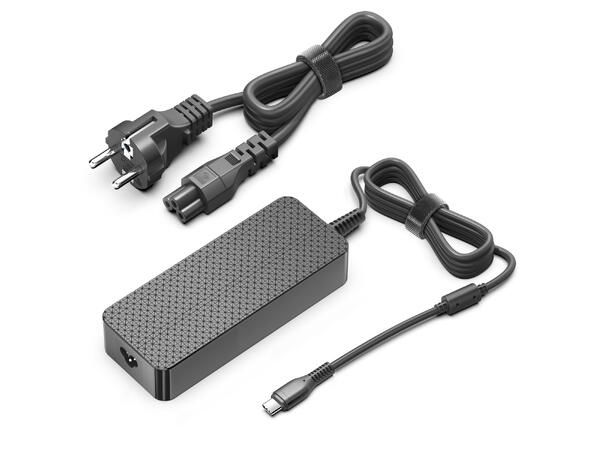

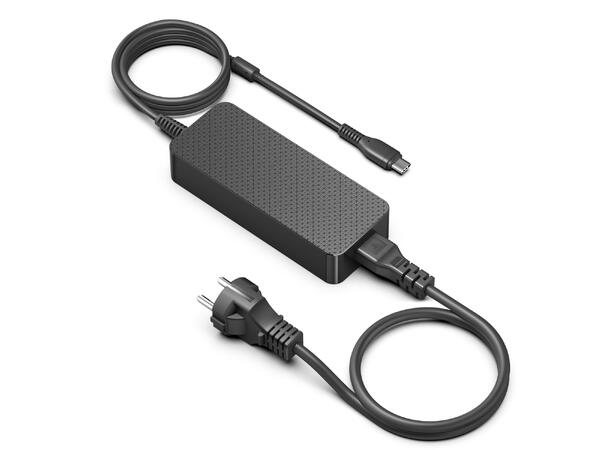

Stoltzen Universal PD Power 100W
The Stoltzen Universal PD Power 100W is a high-performance USB-C charger designed to deliver reliable and efficient power to a wide range of devices. Supporting output levels from 15W to 100W, it is perfect for powering laptops, tablets, smartphones, and other USB-C-enabled devices. This charger complies with Energy Star 3.0 (EPA/DOE-Level VI) standards, ensuring eco-friendly energy use and superior efficiency.
Key Features:
- Wide Power Delivery Range: Delivers outputs from 15W to 100W, making it suitable for diverse device requirements.
- High Energy Efficiency: Meets CEC and Energy Star 3.0 standards for reduced idle power consumption, with only 150mW wasted at 5V output.
- Universal Compatibility: Operates on input voltages between 100-240V AC at 50/60Hz, making it ideal for global use.
- Fast and Reliable Performance:
- Turn-On Delay: Maximum of 3 seconds under full load at AC 115V.
- Hold-Up Time: Minimum of 5ms at AC 115V, ensuring stability.
- Rise-Up Time: Smooth power delivery within 40ms.
Output Power Table:
| Output Voltage | Output Current | Power Output |
|---|
| 5.0V | 3A | 15W |
| 9.0V | 3A | 27W |
| 12.0V | 3A | 36W |
| 15.0V | 3A | 45W |
| 20.0V | 3.25A | 65W |
| 20.0V | 5A | 100W |
Technical Specifications:
Input:
- Rated Voltage: 100-240V AC
- Frequency: 50/60Hz
- Inrush Current: < 100A
- Steady Current: 1.5A (Max at 100Vac input)
- Idle Power Consumption: 150mW at 5V output
Output:
- Load Regulation: ± 5%
- Power Delivery: Up to 100W (max)
- Turn-On Delay: 3s max under full load
- Hold-Up Time: 5ms min under full load
- Rise-Up Time: 40ms max under full load
