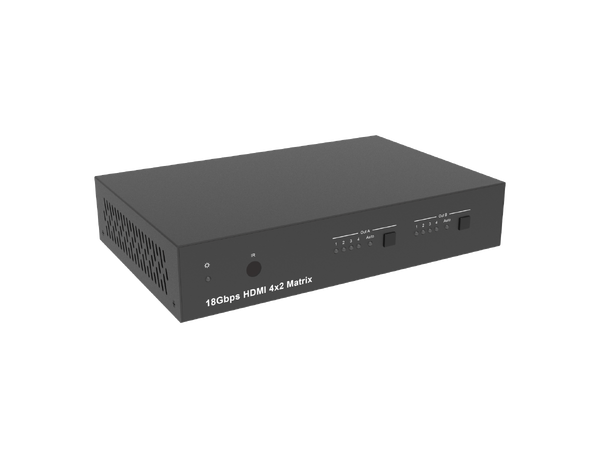

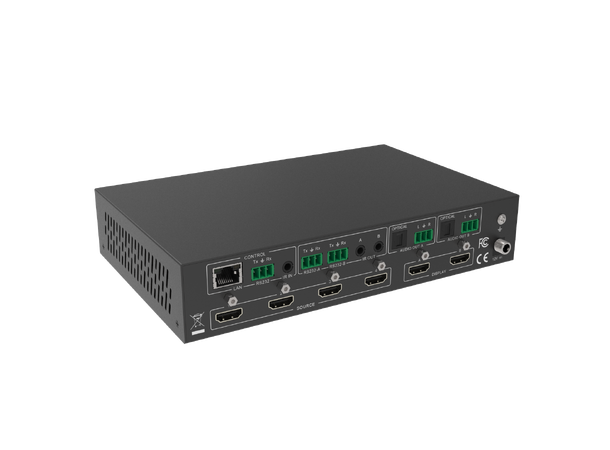

Athena C42 – 4-port HDMI Matrix with 4K@60!

A cost-effective matrix for easier setup

This HDMI Matrix equipped with 4 HDMI inputs and 2 HDMI outputs with scaling. Each input and output supports up to 4K60 444 HDMI 18G video. The outputs can be individually scaled for 1080p or HDBaseT compatibility. Deeembedded audio is available for both outputs as analog L+R and optical TosLink. The Matrix Switch can automatically control display devices using RS232, CEC or IR when the last input signal is lost, or when the first video input is detected. The matrix can be controlled via RS232, LAN or with IR.

· Supports 4K / 60 4:4 4, HDR, HDCP 2.2 compliant.

· Supports 4K to 1080p downscaling on both outputs.

· Controllable with front panel, IR, RS232 and TCP / IP.

Key specifications

· 4x HDMI in

· 2x HDMI out

· Bandwidth 18Gbps

· Supports HDCP 2.2
