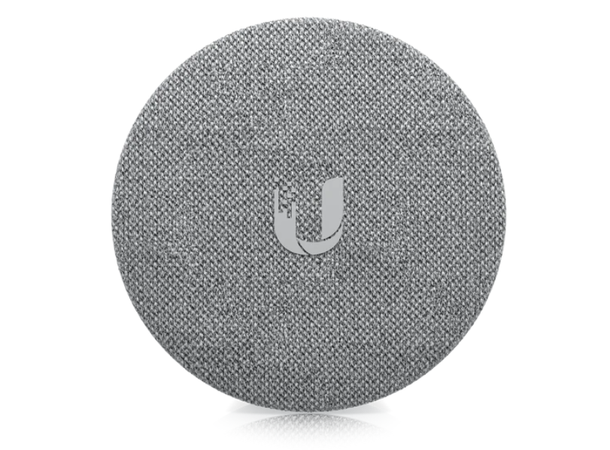

Ubiquiti UniFi Protect Smart Chime
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
Up to 80dB speaker sound
Connect and power using PoE
Compatibility: UVC-G4 Doorbell Pro PoE Kit
UVC-G4 Doorbell Pro
UVC-G4-DoorBell
UA-G2-Pro
UA-Intercom
UA-G2-SK-Pro
Mechanical | |
Dimensions | Device: Ø62 x 54 mm (Ø2.5 x 2.1") |
| In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5") |
| On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
Weight | Device: 158 g (5.6 oz) |
| In-wall mount: 91 g (3.2 oz) |
| On-wall mount: 28 g (1 oz) |
Enclosure material | Polycarbonate, aluminum alloy |
Mount material | Polycarbonate, zinc alloy |
| |
System | |
Networking interface | 10/100 MbE port |
Power method | PoE |
Supported voltage range | 44—57V DC |
Max. power consumption | 3W |
ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
LED | R/G/B/W |
Button | Factory reset |
Ambient operating temperature | 0 to 40° C (32 to 104° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Audio | |
Speaker | Yes |
Buzzer | Yes |
| |
Software | |
Web application | UniFi Protect |
| UniFi Access |
Mobile app | UniFi Protect iOS™ and Android™ |
