Ubiquiti UniFi Express 2xRJ45 | USB-C Power input Ubiquiti UniFi Express 2xRJ45 | USB-C Power input

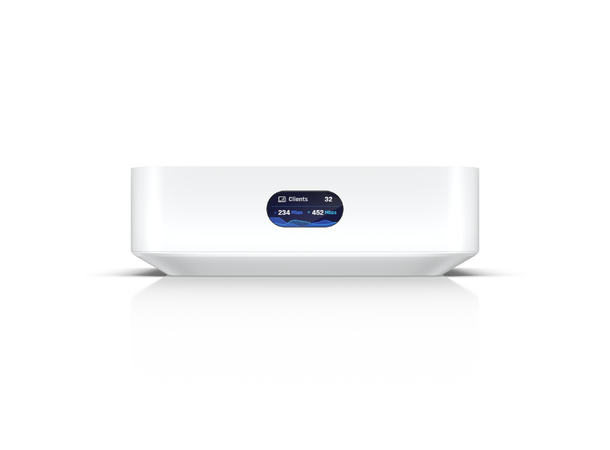

Ubiquiti UniFi Express

2xRJ45 | USB-C Power input

Varenr: 132777
Alt. varenr: UX-EU
BeskrivelseAlternativerEkstern Info
Beskrivelse
Mechanical
Dimensions98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight302 g (10.7 oz)
Enclosure materialPolycarbonate
Hardware

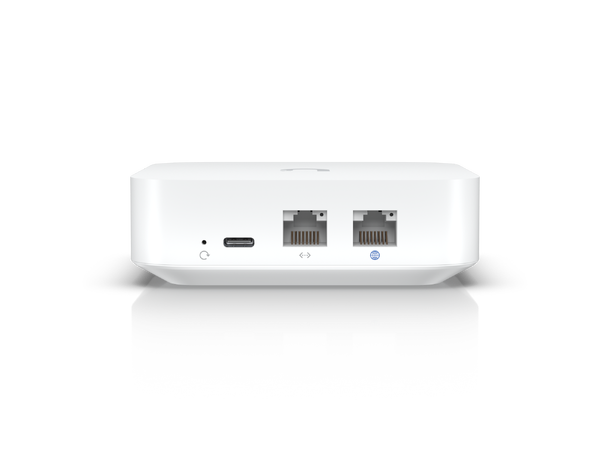

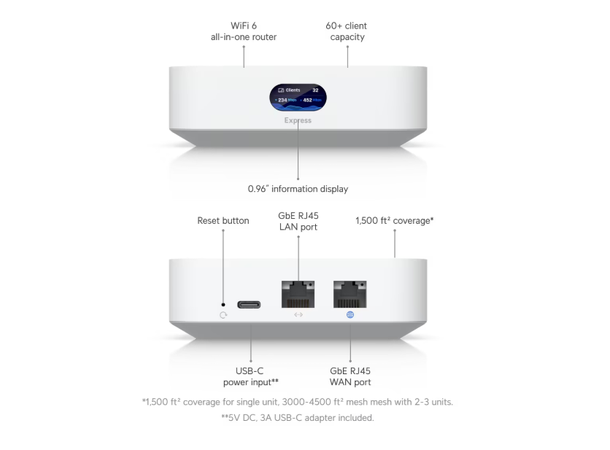

Networking interface(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port
Management interfaceEthernet
Bluetooth
Power methodUSB type C (5V DC/3A)
Max. power consumption10W
Max. WiFi TX power
2.4 GHz
5 GHz

22 dBm
25 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz

4 dBi
5.15 dBi
Antennas(2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display0.96" status display
ButtonFactory reset
Operating temperature-10 to 45° C (14 to 113° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Software
WiFi standards802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID8 per radio
VLAN802.1Q
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients60+
Zero wait DFSYes
Supported Data Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
