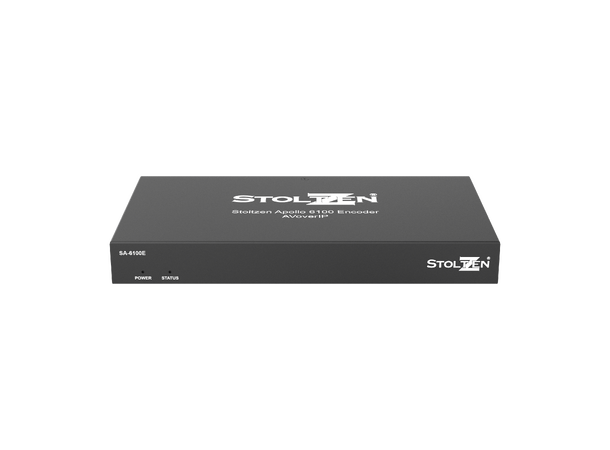

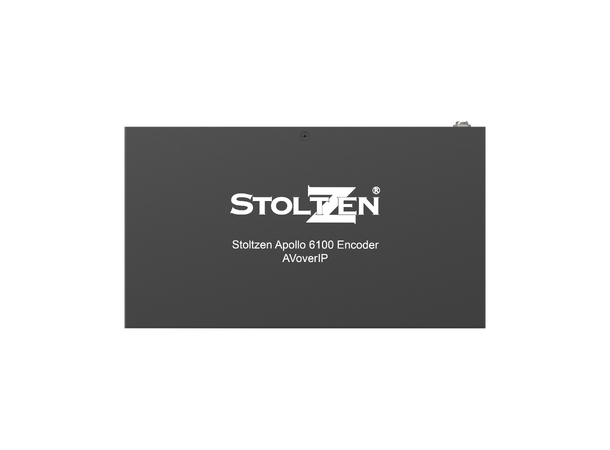

Stoltzen 6100E Encoder
The Stoltzen Apollo 6100E Encoder offers unparalleled performance for encoding 4K UHD video with minimal latency and distributing it over gigabit Ethernet networks. With support for video walls, multi-channel audio formats, and advanced control capabilities, it is designed to handle the most demanding AV applications.
Key Features
- 4K UHD Encoding: Supports video resolutions up to 3840 x 2160p @ 60Hz with 4:4:4 chroma subsampling.
- Efficient Encoding: Achieves an average data rate of 650Mbps with a maximum of 900Mbps.
- Advanced Audio: Embeds and supports Dolby Atmos, DTS:X, and PCM 7.1 formats.
- Scalable Video Walls: Enables configurations up to 16 x 16.
- PoE Support: Simplifies setup by providing power through Ethernet.
- Independent Signal Routing: Allows separate or combined routing of AV, USB, and control signals.
- IR and Serial Control: Supports bi-directional IR pass-through and RS232 communication.
Specifications
| Video | |

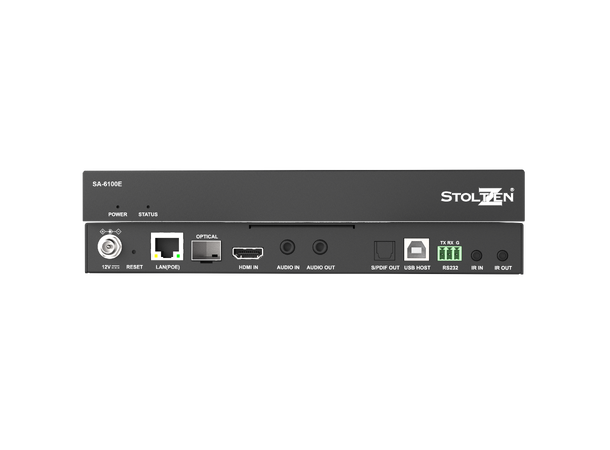

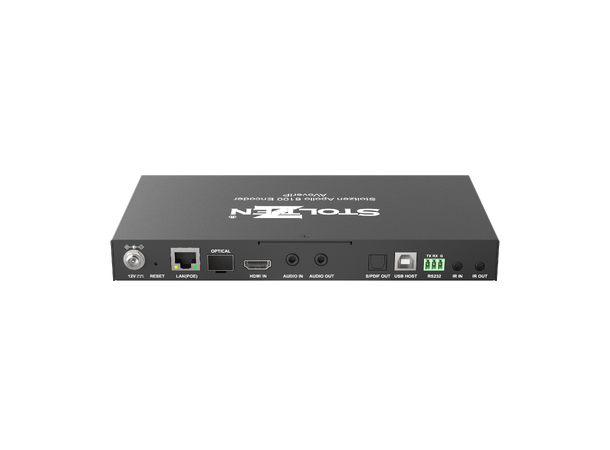

| Input Port | 1 x HDMI (Female Type-A) |
| Input Type | HDMI 2.0, HDCP 2.2/2.3 |
| Input Resolutions | Up to 3840 x 2160p @ 60Hz 4:4:4 |
| Output Port | 1 x RJ-45, 1 x Optical |
| Output Type | IP Stream |
| Output Resolutions | Up to 3840 x 2160p @ 60Hz 4:4:4 |
| Average Encoding Data Rate | 650Mbps (avg), 900Mbps (max) |
| End-to-End Latency | 1 frame |
| Audio | |
| Input Ports | 1 x HDMI, 1 x 3.5mm Stereo Jack |
| Input Signals | HDMI: Dolby Atmos, DTS:X, PCM 7.1; Audio In: Analog |
| Output Ports | 1 x S/PDIF Out, 1 x LAN/Optical, 1 x 3.5mm Stereo Jack |
| Output Signals | S/PDIF Out: Digital; LAN/Optical: Dolby Atmos, DTS:X, PCM 7.1 |
| Control | |

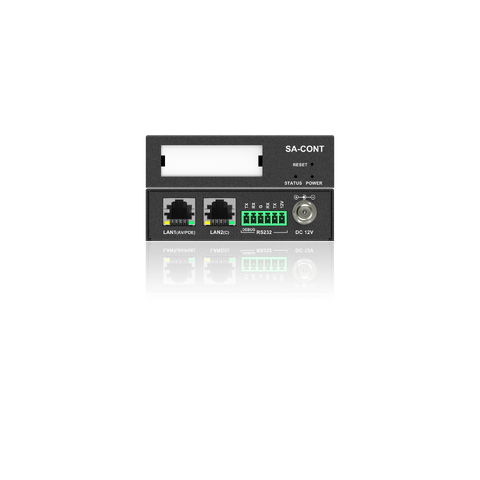

| Methods | Windows Apollo Configurator, iPad Composer App, IP Controller SA-C |
| General | |
| Operating Temperature | +32°F to +113°F (0°C to +45°C) |
| Storage Temperature | -4°F to +158°F (-20°C to +70°C) |
| Power Supply | 12 VDC 2A, PoE |
| Power Consumption | 7W (Max) |
| Dimensions | 215mm x 25mm x 120mm (8.46" x 0.98" x 4.72") |
| Net Weight | 0.74kg (1.63 lbs) |
