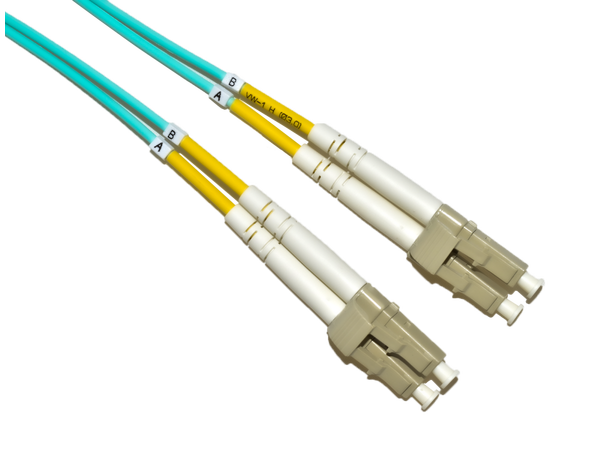

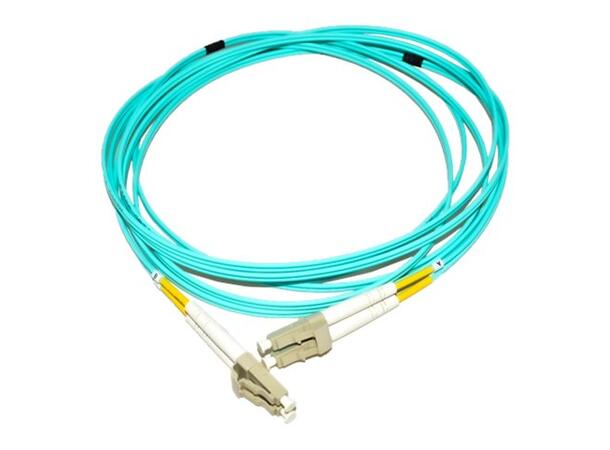

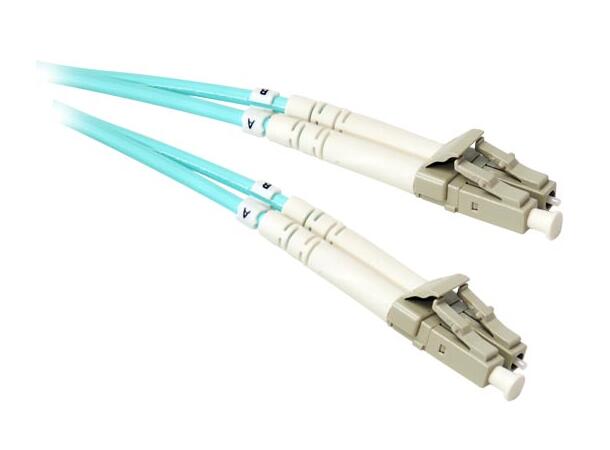

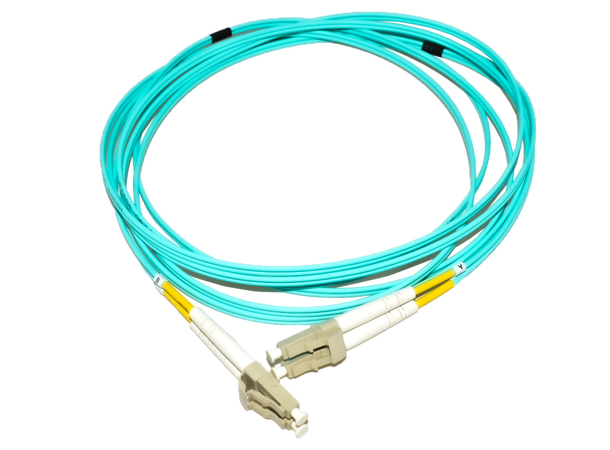

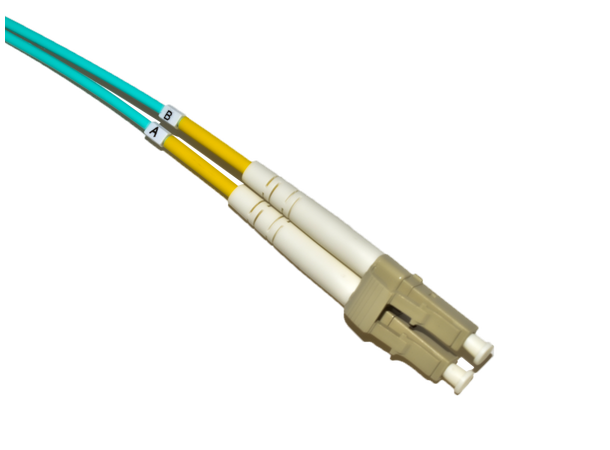

LinkIT FFiberPatch OM3 LC/LC Aqua 40m
Duplex | MM | LSZH
Cost-effective fiber cable solution for card transmission
- Our OM3 multimode fiber patch cords are 100% tested and certified
- Designed for high-speed and older networks such as Gigabit Ethernet and Fiber Channel
- Support 10G data speeds of up to 300m and 40/100Gb up to 100m
Technical documentation
Cost-effective fiber cable solution for card transmission. Our OM3 multimode fiber patch cords are 100% tested and certified. Designed for high-speed and older networks such as Gigabit Ethernet and Fiber Channel, they support 10G data speeds of up to 300m and 40 / 100Gb up to 100m.
Main Specifications
| Length (m) | 40 |
|---|
| Color | Aqua |
|---|
| Category | OM3 |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | LC |
|---|
| Polishing contact 1 | PC |
|---|
| Polishing contact 2 | PC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 50/125 Multimode |
|---|
Extended Specifications
| Directional | No |
|---|
| EAN | 7072662009656 |
|---|
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2.0 |
|---|
| Certifications | CE, RoHS |
|---|
| Transmission speed | 10Gbps |
|---|
| Operating Temperature | -40°C to +75°C |
|---|
| Insertion Loss (dB) | >=0.3 dB |
|---|
| Storage Temperature | -40°C to +75°C |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
