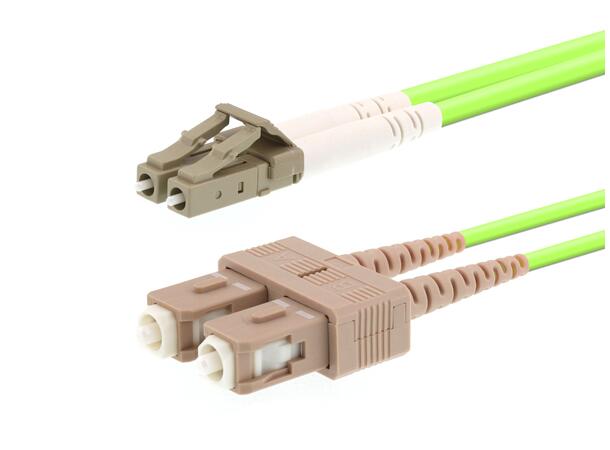

LinkIT fibersnor OM5 LC/SC Lime m
WDM 100G | Duplex | MM 50/125 | LSZH
Our OM5 multimode fiber patch cords are 100% tested and certified. They are designed for wavelengths between 840nm and 953nm. They support SWDM. They are VCSEL laser optimized. UPC polished (Ultra Physical Contact). For 100Gb up to 150 meters. 2mm diameter of cable.
- OM5 Duplex cable
- Multimode
- LSZH
- Lime Green
Main Specifications
| Length (m) | |
|---|
| Category | OM5 |
|---|
| Cable type | Duplex |
|---|
| Color | Lime Green |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | SC |
|---|
| Polishing contact 1 | PC |
|---|
| Polishing contact 2 | PC |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 50/125 Multimode |
|---|
Extended Specifications
| Halogenfree | Yes |
|---|
| Jacket material | LSZH |
|---|
| Maximum bend (mm) | 20 |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Optical Return Loss (dB) | >30dB |
|---|
| Cable Diameter (mm) | 2mm |
|---|
| Certifications | CE, RoHS |
|---|
| Fire retardant version | Yes |
|---|
