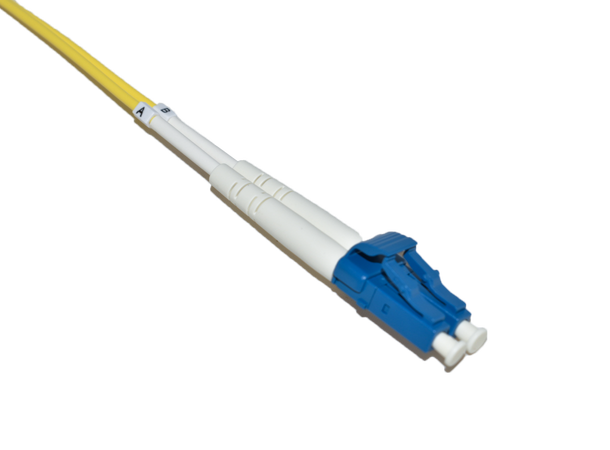

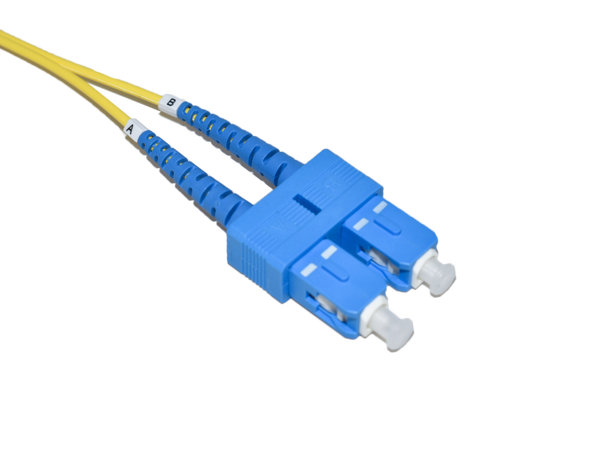

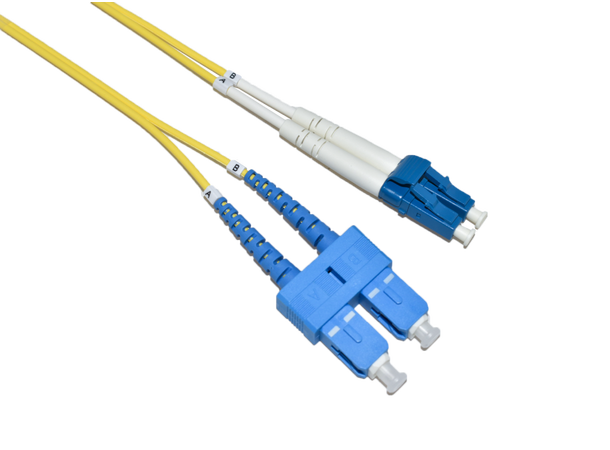

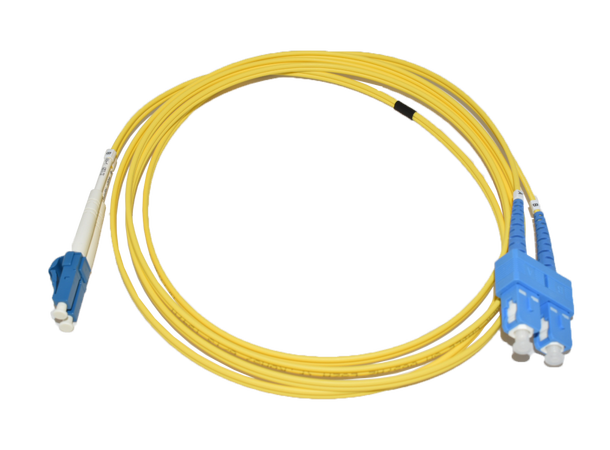

LinkIT fiber patch OS2 LC/SC
Duplex | SM | LSZH | Yellow
LinkIT fibernor OS2 cable for smaller losses with small bending diameter (down to 20 mm). For standard fiber cable, bending diameters over 60mm are recommended. The cable has UPC polished connectors for maximum dimming of return light. For 10 GB.
- OS2 Duplex cable
- Singlemode
- LSZH
Main Specifications
Length (m) | |
|---|
Color | Yellow |
|---|
Category | OS2 |
|---|
Brand | LinkIT |
|---|
Connector type 1 | LC |
|---|
Connector type 2 | SC |
|---|
Polishing contact 1 | UPC |
|---|
Polishing contact 2 | UPC |
|---|
Cable type | Duplex |
|---|
Number of fibers | 2 |
|---|
Core Diameter (um) | 9/125 Singlemode |
|---|
Extended Specifications
Maximum bend (mm) | 20 |
|---|
Jacket material | LSZH |
|---|
Anti-kink sleeve | Moulded |
|---|
Halogenfree | Yes |
|---|
Oil resistant | No |
|---|
Fire retardant version | Yes |
|---|
Cable Diameter (mm) | 2 |
|---|
Certifications | CE, RoHS |
|---|
Insertion Loss (dB) | < 0.3 dB |
|---|
Operating Temperature | -40ºC ~ +75ºC |
|---|
Storage Temperature | -40ºC ~ +75ºC |
|---|
Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
