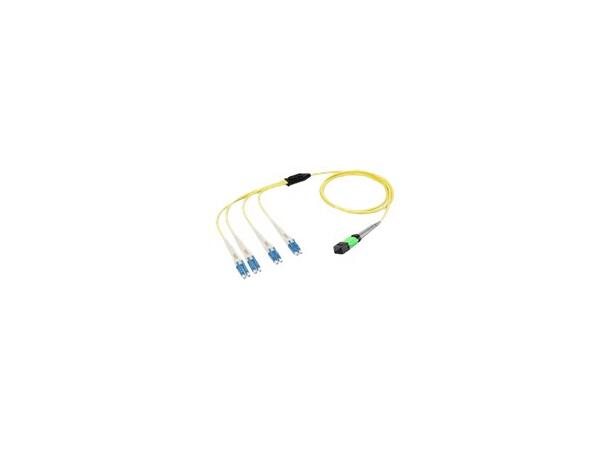

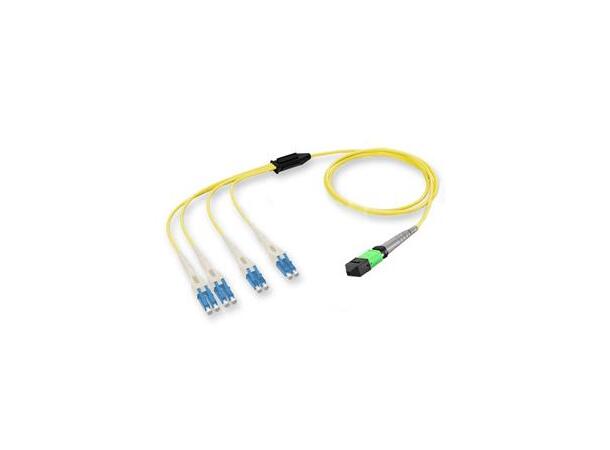

LinkIT QSFP+/MPO-B OS2 8xLC Breakout 5m
Ver. B | Elite | LSZH
To disconnect the QSFP + 40Gbps MPO transceiver to 4 x 10Gbps. USConec MTP Elite connector, Insertion Loss 0.1dB Typical, 0.35dB Max, Return Loss> 60dB, MTP for 4 x LC duplex, 8 fibers
- Speed up to 40Gbit
- To disconnect the QSFP + 40Gbps MPO transceiver to 4 x 10Gbps
- MTP for 4 x LC duplex, 8 fiber.
- Max Return Loss> 60dB
Main Specifications
| Length (m) | 5 |
|---|
| Color | Yellow |
|---|
| Category | MTP/MPO |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | QSFP+/MPO-B OS2 |
|---|
| Connector type 2 | 8xLC |
|---|
| Network cable type | Network cable |
|---|
| Active/Passive | Passive |
|---|
Extended Specifications
| Transmission speed | 40Gbps |
|---|
| Halogenfree | Yes |
|---|
| SFP Coding | TX/RX 1,2,3,4 – 9,10,11,12 |
|---|
| Bending radius (mm) | 7,5 |
|---|
| Temperature | 0 to 70°C (32 to 158°F) |
|---|
| Certifications | CE, RoHS |
|---|
