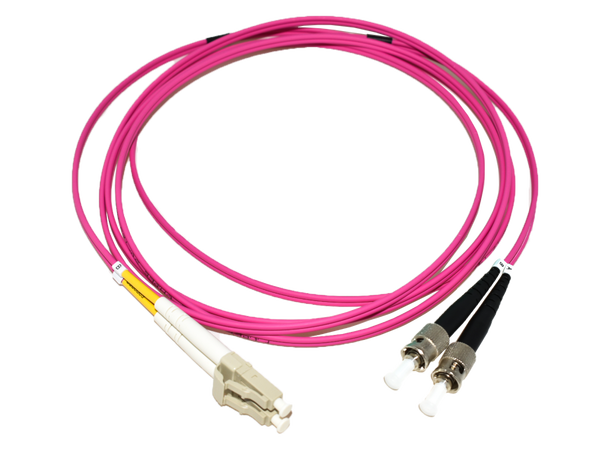

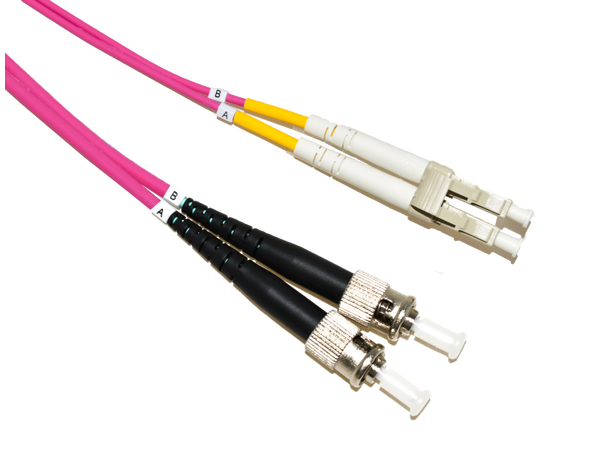

LinkIT fibersnor OM4 LC/ST 5m Duplex | MM | LSZH LinkIT fibersnor OM4 LC/ST 5m Duplex | MM | LSZH LinkIT fibersnor OM4 LC/ST 5m Duplex | MM | LSZH

LinkIT fibersnor OM4 LC/ST 5m

Duplex | MM | LSZH

Varenr: 114029
Alt. varenr: FPD54LPTP-050
BeskrivelseTeknisk infoEkstern Info
Beskrivelse
LinkIT fiber patch OM4 LC/ST, Duplex, MM, LSZH
  • Connector: LC-ST
  • Fiber mode: OM4 50/125
  • Fiber grade: G.651.1
  • Polish type: PC
  • Cable jacket: LSZH
  • Color: Magenta
  • Cable diameter: 2mm
  • Minimum bend radius: 20mm
  • Tensile loads: 150N
  • Insertion loss: <0,3dB
  • Return loss: >35dB
  • Wave Length: 850/1300nm
  • Durability: 500 matings
  • Operating/Storage temp: -40 - +75
  • Fire properties: Fire retardent and halogen-free IEC 60332-3-24, IEC 60332-1-2, IEC 61034, IEC 60754-1
  • All CENELEC standards required.
Teknisk info

Produktinformasjon

Farge Magenta
Kabeltype Fibersnor
Konnektorer LC/ST
Lengde 5 m
Teknologi Duplex
Ytterkappe LSZH (Halogenfri)
