HH Speaker Tessen TNi-W4-WH White

4" + 1" 30W@100V 45W@8 Ohm Phoenix

The TNi-W4 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W4 - 4 inch passive enclosure - features 4 power tappings ranging from 1.5W - 30W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and M4 screw terminals, The TNi-W4 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W4 comes with all Specifications
Model TNi-W4
System type Passive, 2-way, Bass Reflex
Woofer Size 4"
Tweeter Size 1" Dome Tweeter
100V Power Options 30W, 15W, 6W, 3W
70V Power Options 15W, 7.5W, 3W, 1.5W
Low Nominal System Impedance 8 Ohm
Power Rating
1 45W AES, 180W Peak
Recommended Amplifier 80-160W @ 8 Ohms
Sensitivity 1W/1m
2 88 dB SPL
Max SPL 1m
3 111 dB SPL
Frequency response 80Hz - 20KHz (-10dB)
125Hz - 18KHz (-3dB)

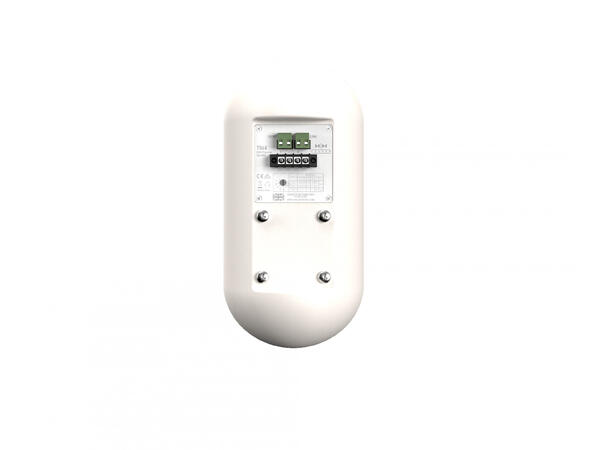

Input / Link Connector Euroblock and M4 terminals
Horizontal Dispersion Angle 90°
Vertical Dispersion Angle 80°
Enclosure
Main Construction Material ABS Plastic
Grille Black, Circular Steel Mesh
Finish White (Black finish optional, subject to MOQ)

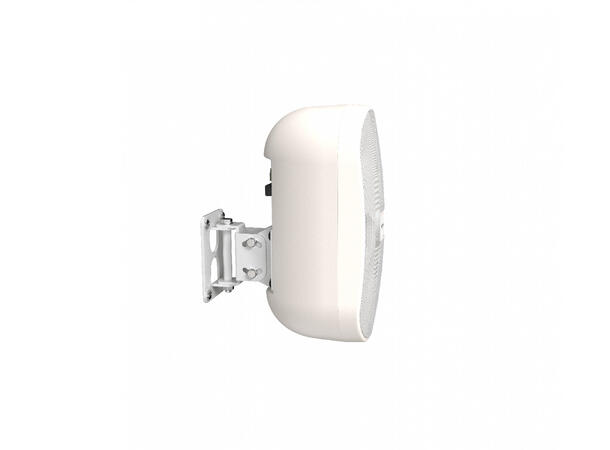

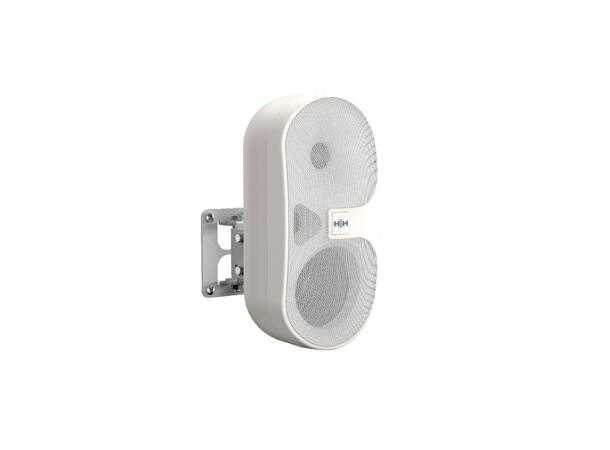

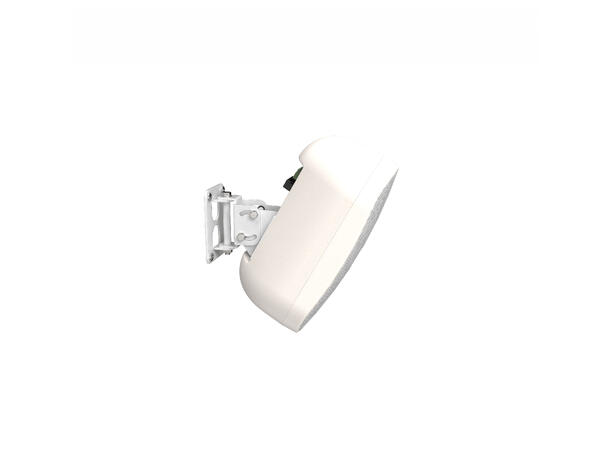

Mounting Bracket Adjustable Steel Bracket included
Unit dimensions (HWD) 295 x 145 x 222mm, 11.6" x 5.7" x 8.7"
Unit weight 2.8Kg, 6.2 lbs
Single Carton dimensions (HWD) 430 x 185 x 175mm, 16.9" x 7.3" x 6.9", 0.014m³
