HH Høyttaler Tessen TNi-W6-BK Svart

6,5+1" 40W@100V 55W@8 Ohm

Varenr: 131756
Alt. varenr: TNi-W6-BK
BeskrivelseAlternativerEkstern Info
Beskrivelse

HH Speaker Tessen TNi-W6-BK Black

6,5+1" 40W@100V 55W@8 Ohm

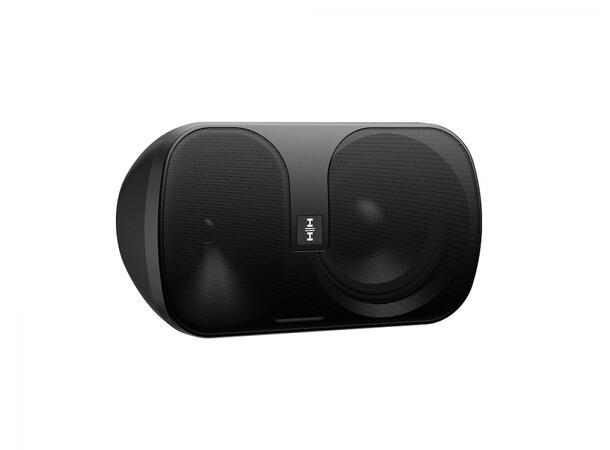

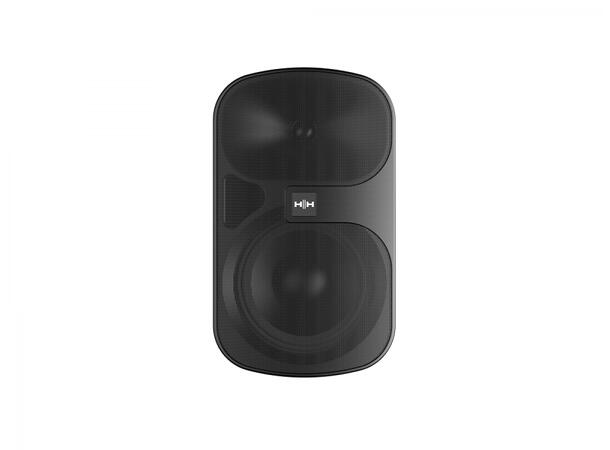

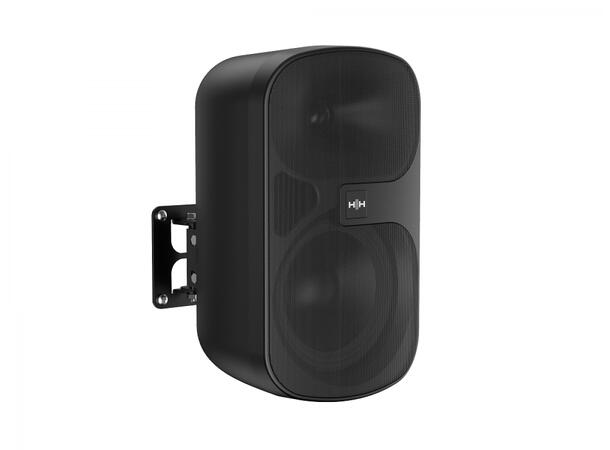

The TNi-W6 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W6 – 6.5 inch passive speaker - features 4 power tappings ranging from 2.5W - 40W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and m4 screw terminals, The TNi-W6 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W6 comes with all essential installation components.



100V Power Options40W, 20W, 10W, 5W
70V Power Options20W, 10W, 5W, 2.5W
Frequency Response (-10)65Hz > 20KHz
Frequency Response (-3)80Hz - 18KHz
LF Driver6.5 inch Paper
HF Driver1" DOME TWEETER
Low Nominal System Impedance8 OHM
Power55W AES, 220W Peak
Max SPL (1M) (Peak)113 dB SPL
Sensitivity (1W/1M)90 DB SPL
Recommended Amplifer100-200W @ 8 Ohms
Horiz. Dispersion Angle 1000Hz90°
Vertical Dispersion Angle 1000Hz80°

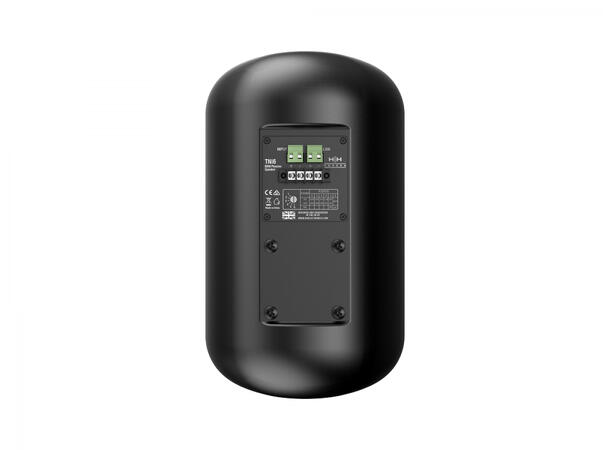

Input ConnectorEUROBLOCK AND M4 TERMINALS
Link ConnectorEUROBLOCK AND M4 TERMINALS

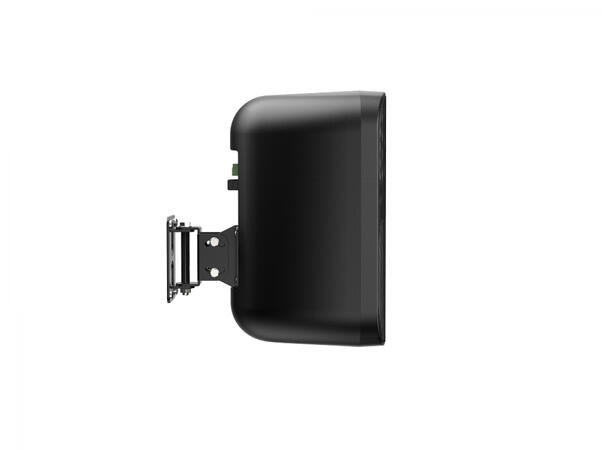

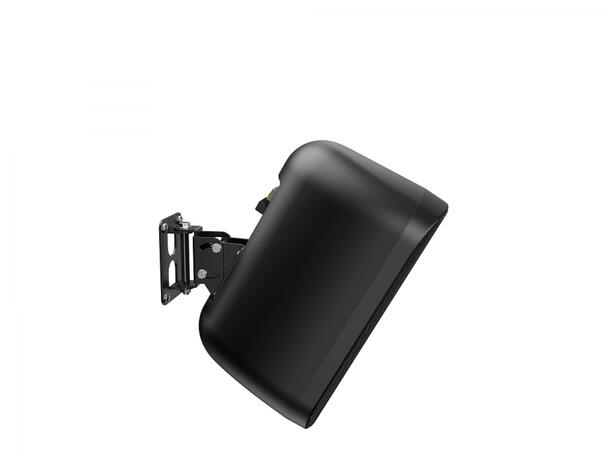

Mounting BracketADJUSTABLE STEEL BRACKET INCLUDED
Unit Dimensions (Hwd)330 X 196 X 281MM, 13" X 7.7" X 11.1"
Unit Weight3.45KG, 7.6 LBS
Main Construction MaterialABS PLASTIC
GrilleBlack, CIRCULAR STEEL MESH
FinishBlack
