HH Høyttalerprosessor SP26 2 inn 6 ut

Full DSP USB RS485 24 bit 48 KHz

Varenr: 131745
Alt. varenr: SP26
BeskrivelseEkstern Info
Beskrivelse

HH Speaker Management SP26 2 in 6 out

Full DSP | USB | RS485 | 24 bit | 48 KHz



The SP26 is a fully featured 2-IN/6-OUT digital speaker management system.

Featuring 2 analog inputs and 6 analog outputs, each managed by a powerful DSP Engine. Each input channel provides PEQ, gain control, Dynamic Low boost, noise gate function, RMS compressor, internal White/Pink Noise Generator, and configurable delay. Each output offers up to 7 PEQ and crossover filters.

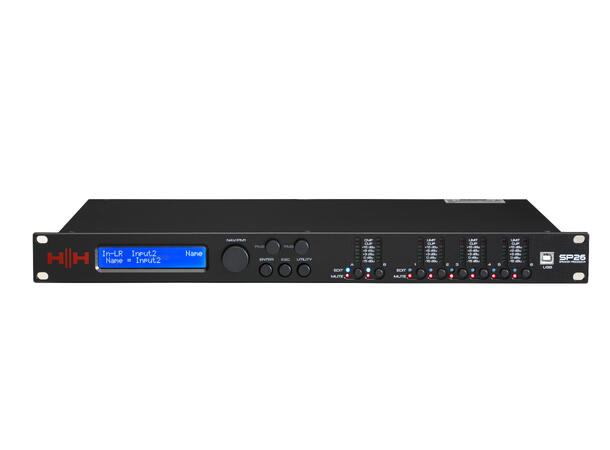

Easy setup is assured with intuitive front panel controls and an interactive LCD display for local setup, or a dedicated PC control interface for remote monitoring and configuration via USB or RS485.

The SP26 loudspeaker processor is the perfect counterpart to any HH speaker system, suitable in an array of applications, such as live sound, indoor/outdoor events, public address, theatrical performance, and touring. It also comes with expertly created audio pre-sets for use with the TNA line array system, for easy setup straight out of the box.

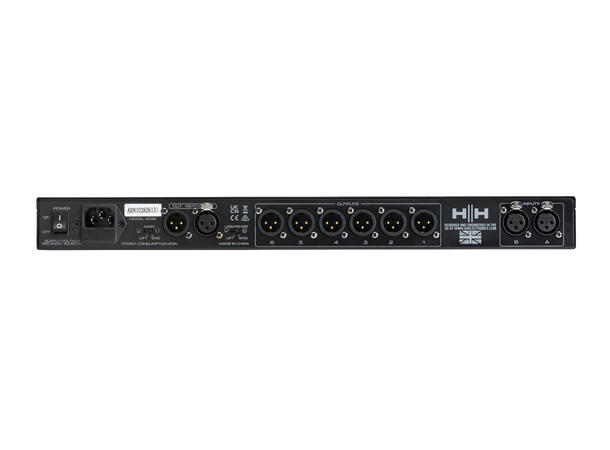

InputsTwo Electronically Balanced XLR Inputs. RS485 XLR
OutputsSix Electronically Balanced XLR Outputs. RS485 XLR
Frequency Response20Hz-20kHz; -0.5dBy at 20Hz and 20kHz
S/N>106dBA
THD+N0.001% at 1kHz 0dBu
DSPMax Delay, 900 ms 10.4us increment/decrement steps per input channel. 340 ms 10.4us increment/decrement steps per output channel
Dimensions44 x 483 x 229mm, 1.7" x 19" x 9"
Weight3.5Kg, 7.7 lbs
Carton Dimensions (Hwd)9 x 53 x 30CM, 3.5" x 20.9" x 11.8" , 0.014 M3
Packed Weight4.5Kg, 9.9 lbs
System TypeLoudspeaker Management System
Power Consumption30W
Power SupplyUniversal voltage 100V-240V~ 50/60Hz
Other ControlsComprehensive front panel controls with quick mute functionality. Ground lift switches for signal and RS485/USB. USB interface.
AD-DA Converters24bit, 48KHz
Presets48 user presets
Filter TypeParametric EQ. 11 filters per input,7 filters per output. Bell, Shelving
Power ConnectorRemoveable IEC Power Cord C14
Filter TypeCrossover. Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octave
