HH Subwoofer Tessen TNA-2120SA Aktiv

2x12" 3 ch amp 2400W 52-200Hz@ -10 134dB

Varenr: 131738
Alt. varenr: TNA-2120SA
BeskrivelseEkstern Info
Beskrivelse

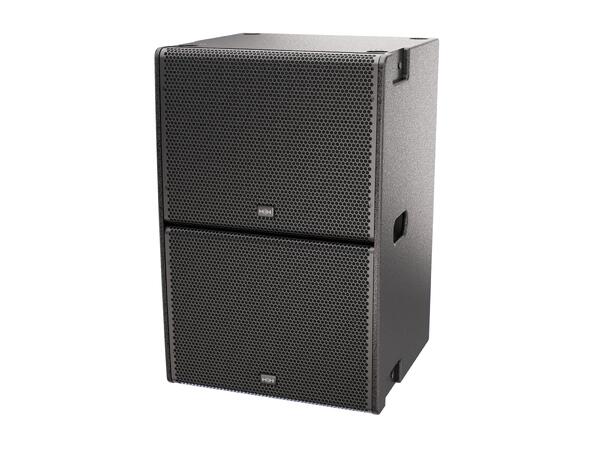

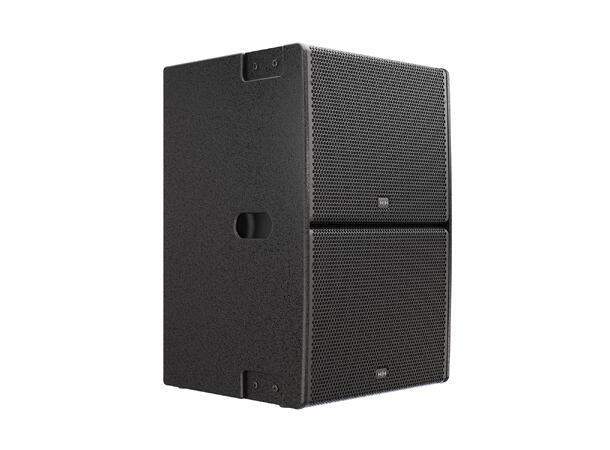

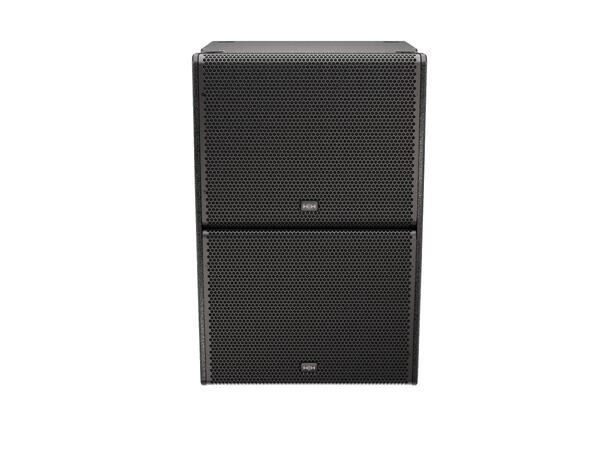

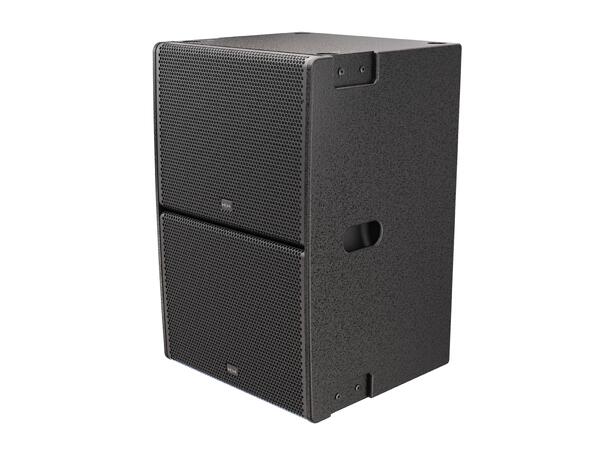

HH Subwoofer Tessen TNA-2120SA Active

2x12" 3 ch amp 2400W 52-200Hz@ -10 134dB

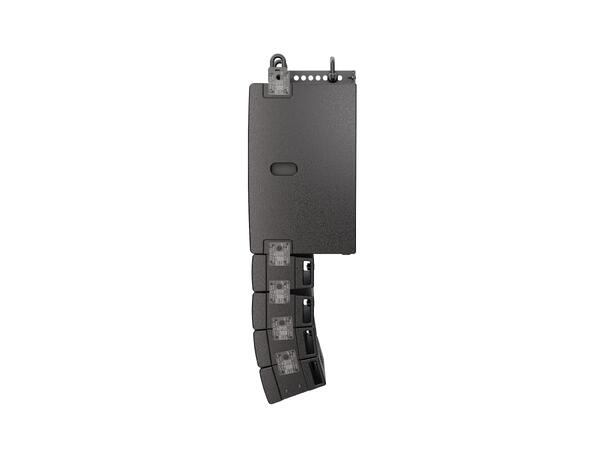

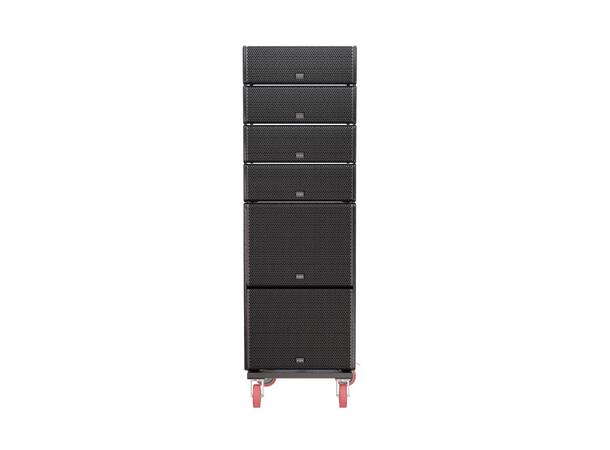

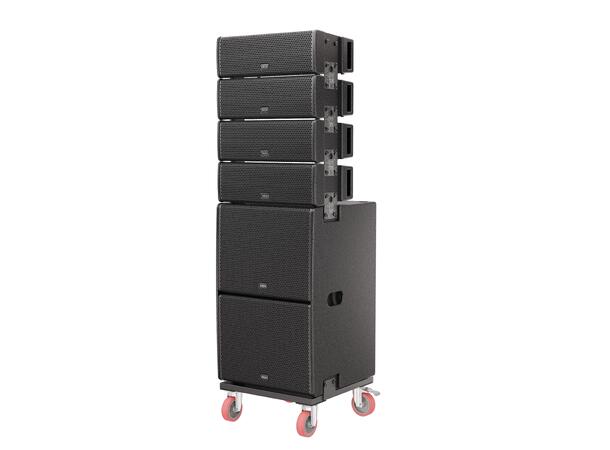

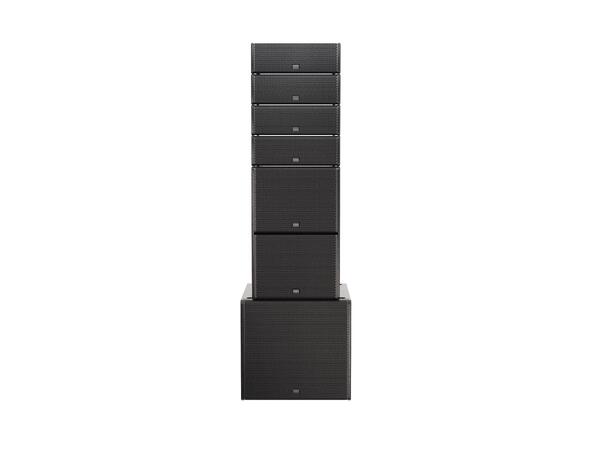

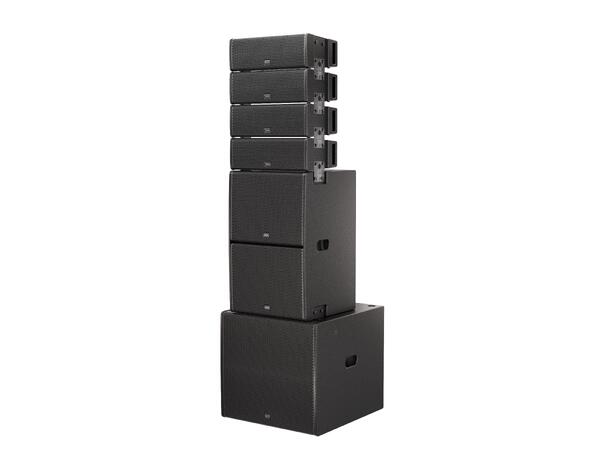

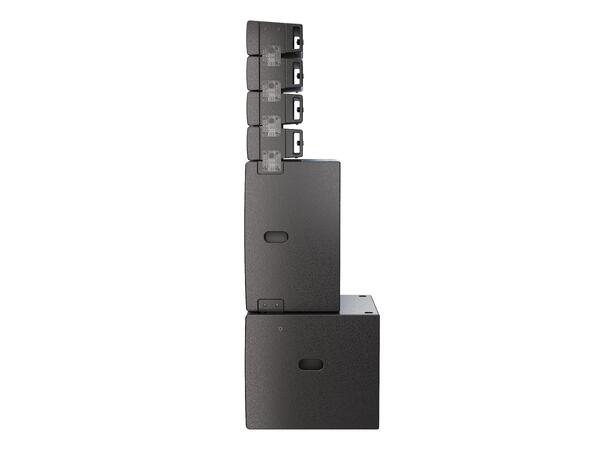

The TNA-2120SA is a multi-channel active subwoofer for powering a complete TNA line array system. The TNA-2120SA features two high power 12-inch low frequency woofers with exceptionally high output. The TNA-2120SA active subwoofer houses three channels of high performance amplification and cutting edge built in DSP presets. As a modular system, the TNA-2120SA is capable of powering up to 6 x TNA-2051 line array satellite cabinets. With Integrated rigging hardware, and optional suspension bracket and dolly board, the TNA-2120SA can be installed quickly and easily. The TNA-2120SA offers a max SPL of 137dB and offers a frequency response as low as 35Hz. When combined upto six TNA-2051's, the TNA-2120SA offers an ideal venue installation or point source solution without the extra expense of rack amplifiers and processors. Ideal for venues, schools, sports, gyms, hotels and more.



Frequency Response (-10) 52Hz - 200Hz
Frequency Response (-3) 52Hz - 150Hz * Tuned with internal DSP Presets

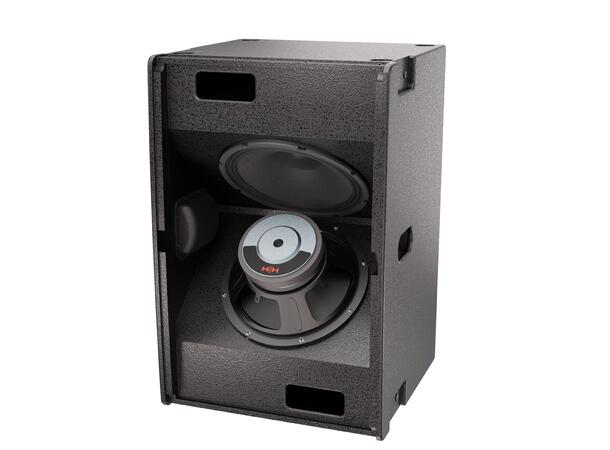

LF Driver 2 x 12-inch HH designed high performance driver
Max SPL 134dB continuous, 137dB Peak
Amplifier System Amplifier Power Rating: 4800W Peak, 2400W Continuous, 1200W RMS
Subwoofer Amplifier Power Rating: 2400W Peak, 1200W Continuous, 600W RMS
Satellite Amplifier Power Rating: Two Channels of 1200W Peak, 600W Continuous, 300W RMS

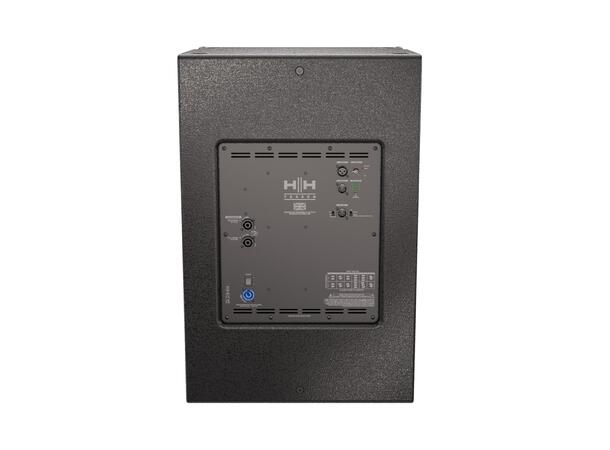

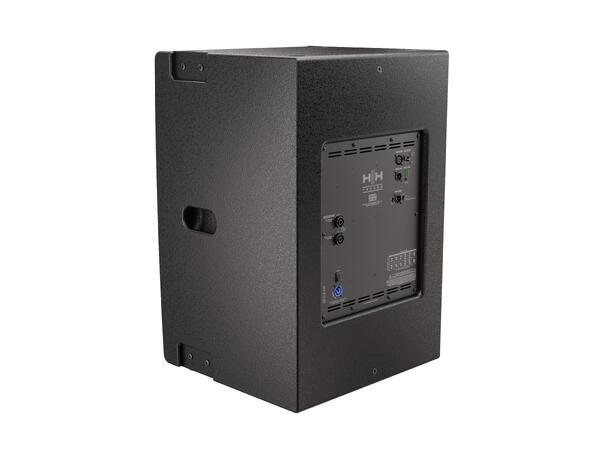

Input Connectiors Balanced XLR Connector
Output Connectors 1 x Balanced XLR Link Out, 1 x Balanced XLR Sub out with 2 way/3 way mode switch and Ground Lift Switch. 2 x locking speakon connectors for external TNA-2051 cabinets
Indicators Power, Mute/Protect, Clip Indicator, Preset Mode
DSP 56bit DSP controlling Crossover, EQ, phase and time optimisation for array cabinets. Six built in DSP presets for typical use cases
Protection Comprehensive protection and clip free limiting + clip indicator
Controls Master Volume, DPS Preset Switch
Input Impedance (Bal/Unbal) 22K Balanced, 10K unbalanced
Cabinet 15mm Plywood
Grille 1.5mm Thickness, Hexagonal mesh

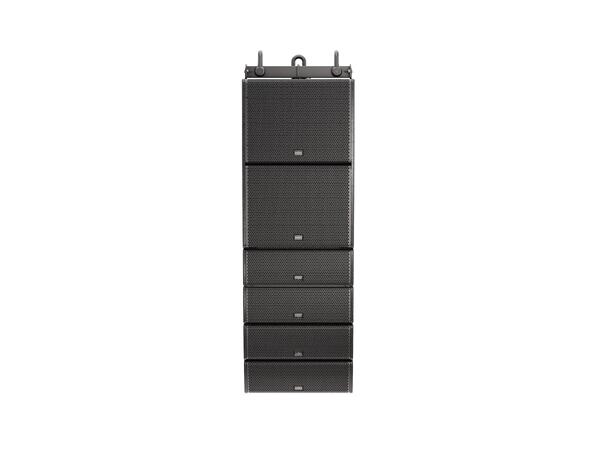

Mounting Points 8 x M8 fixings for included metal side brackets, and optional TNA-BRK1 flying bracket assembly
Finish Painted Black (White finish optional, subject to MOQ)
Accessories TNA-DF1 - Dolly frame
Mounting Bracket TNA-BRK1
Unit Dimensions (Hwd) 730 x 475 x 460mm, 28.7" x 18.7" x 18.1"
Unit Weight 36.7Kg, 80.9 lbs
Carton Dimensions (Hwd) 910 x 610 x 580mm, 35.8" x 24" x 22.8" , 0.322 M3
Packed Weight 42.8Kg, 94.4 lbs
