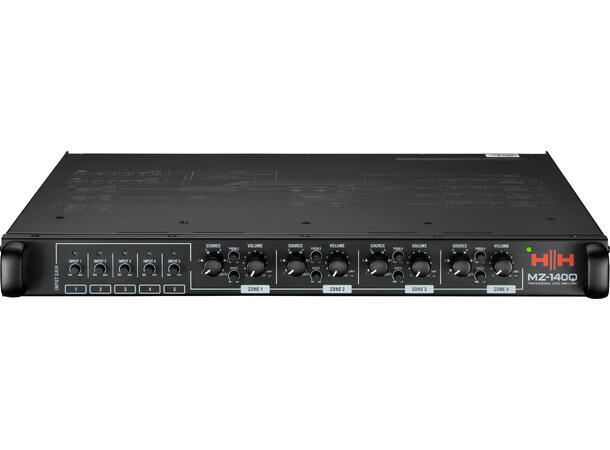

HH Mikseforsterker MZ-140Q 5 inn 4 soner

4x140W@100V / min 4 Ohm Matrix

Varenr: 131729
Alt. varenr: MZ-140Q
BeskrivelseEkstern Info
Beskrivelse

HH Mixing amp MZ-140Q 5 inp 4 zones

4x140W@100V / min 4 Ohm Matrix



Description

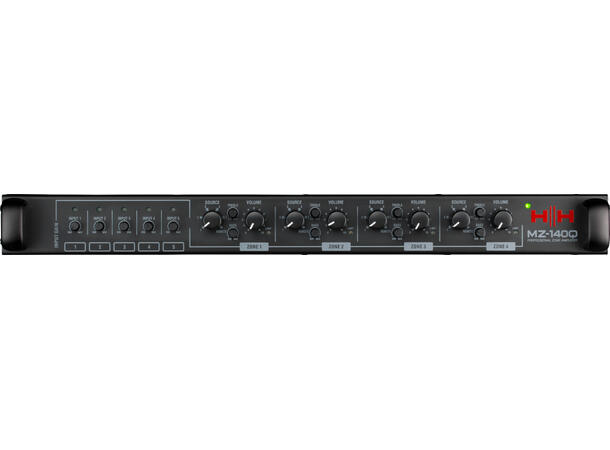

The MZ-140Q features four individual 140 Watt RMS Class D power amplifiers and each amplifier can be configured to run 70/100 Volt or at minimum 4Ohm impedance. Each amplifier is a zone, and there are front panel controls for volume, two band eq and source select per zone. There are five flexible input channels, each with a front panel mounted gain trim control. Dual combi microphone inputs allow two individual mics to be connected simultaneously both with auto or manual priority modes. Built in a full size 1U rack case, the unit is extremely robust with easily operable controls. Front 'scribble' strips allow the installer to easily identify each zone and input identification. The perfect installation amplifier for retail, leisure, café, bars and halls.

  • 4 Zone amplifier
  • 4x 140 Watts RMS power output
  • Supports 70/100V or min 4 Ohm impedance speaker outputs (configurable per zone)
  • 5 comprehensive audio input channels
  • Independent bass and treble EQ adjustment on each zone
  • Compact space saving 1U design (rack mountable)
  • Universal ~100-240V worldwide operation
  • Remote volume control capability using HH MZ-C2 module and standard ethernet cable



System TypeZone power amplifier with input routing

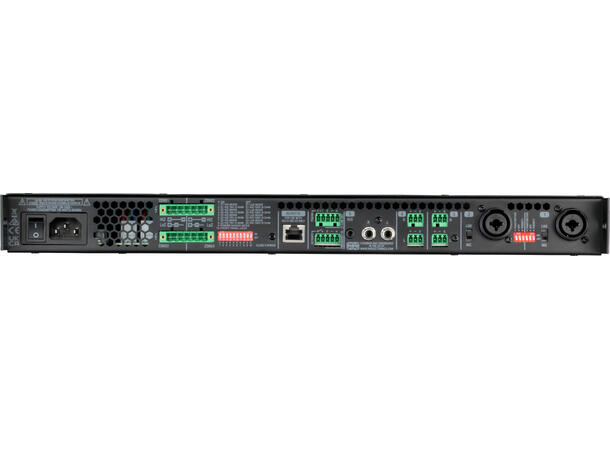

InputsCH1/2 balanced XLR/6.3mm jack combi socket, CH3/4 L&R balanced 3.5mm Euroblock, CH5 3.5mm stereo aux and stereo RCA
Outputs4 zone power amp outputs via 5.08mm Euroblock
IndicatorsPower/Standby, Input signal present and peak LEDs, Output signal present and clip LEDs
ControlsAdjustable gain control for each input; source select and volume control for all zones
Crosstalk< -95dB between channels, maximum volume
Frequency Response20-20kHz ±0.1dBu (LoZ Mode), 80-20kHz ±0.1dBu (HiZ Mode)
THD+N<0.01% @0dBu in, mid volume; <0.008% @+6dBu in, maximum volume
S/N>110dB
Noise Floor< -70dBu (unmuted), < -110dBu (muted)
Lineout3.5mm Euroblock line level output that follows zone 1, useful for system expansion
EQEach zone has bass and treble shelving control with a low pass filter mode; switchable high pass filter on CH1/2
Emergency OverrideBalanced 3.5mm Euroblock connector, overriding the normal inputs
Power Consumption27W Idle, 300W Typical, 450W Max, 0.4W Standby
Unit Dimensions (Hwd)44 x 483 x 417 mm (1.7" x 19" x 16.4")
Unit Weight4.5kg, 9.9lbs
Carton Dimensions (Hwd)150 x 630 x 510 mm (5.9" x 24.8" x 20.1")
Packed Weight7.1kg, 15.7lbs

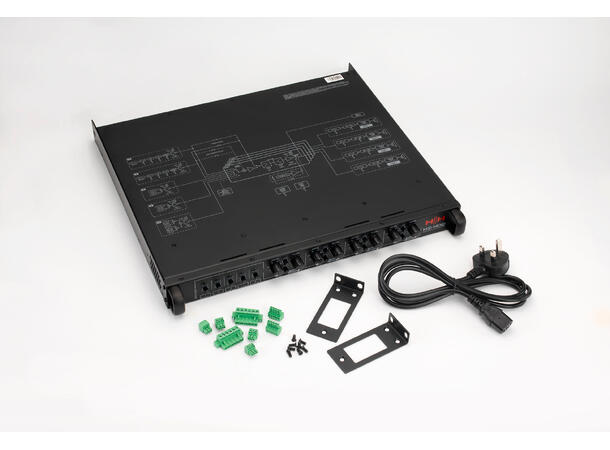

AccessoriesRack mounting kit, Euroblock connectors (4x 3.5mm 3 way, 2x 3.5mm 5 way, 2x5.08mm 6 way), IEC mains lead, HH user manual download card
