Edbak Video Veggfeste Pop Up 70-98"

Quick Relase | Landscape | 130kg

Varenr: 51026
Alt. varenr: VWPOP95-P
BeskrivelseEkstern Info
Beskrivelse

VWPOP95-P

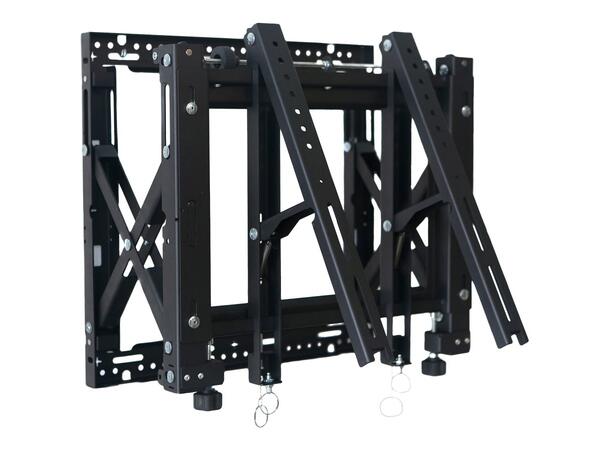

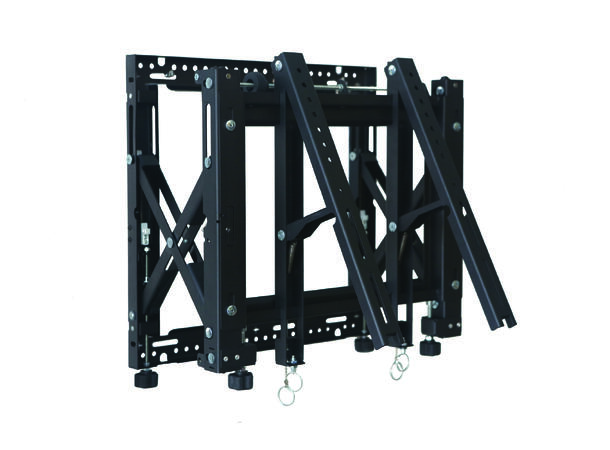

The VWPOP95-P is purpose designed for easy and fast delivery of recessed video wall installations. The simple one touch “pop-out” mechanism allows full extension of the display from the video-wall so access and servicing can be performed quickly and safely. Tool-less micro-adjustment is included for seamless fingertip alignment of the display and precision dedicated spacers eliminate requirements for on-site calculations and measurements.

  • An 8-point tool-less micro adjustment system delivers seamless fingertip alignment
  • The withdrawable mechanism provides convenient service access to screens installed in recess and spaces that are difficult to be accessed for service work.
  • The withdrawable mechanism enables locking with a lock screw to prevent accidental screen removal.
  • The open-frame design with integrated cable strips are designed to make installation as smooth and easy as possible.
  • Sequentially drilled wall plate and precision dedicated display spacers eliminate requirements for on-site calculations.
  • The adjustable spring of the pop-out mechanism enables proper positioning of screens of different weights to ensure safe and controllable withdrawal.





Screen orientationvertical
Type of solutionsuniversal
Minimum screen size90"
Maximum screen size95"
Minimum ability to tilt
Maximum ability to tilt20°
Minimum dostance from the wall100 mm
Maximum distance from the wall310 mm
Capacity130 kg
