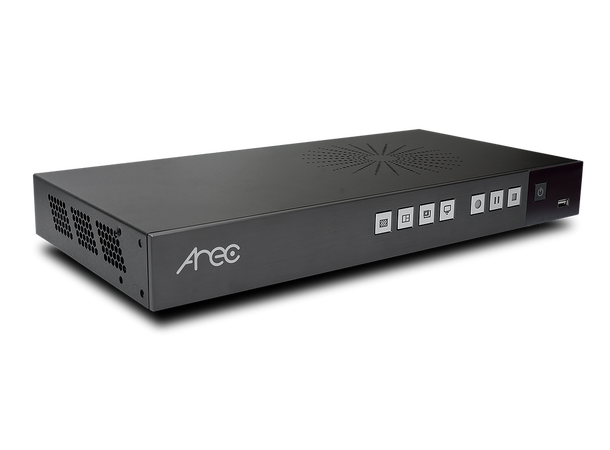

AREC MEDIA STATION LS-400

4-ch input | Mixed/original source video

Varenr: 124190
Alt. varenr: LS-400
BeskrivelseTeknisk infoTilbehørEkstern Info
Beskrivelse

AREC MEDIA STATION LS-400

4-ch input | Mixed/original source video



  • A New Look. Same Great Performance
  • All-in-One Device to Offer Up to 4 Full HD Video Sources Capturing, Mixing, Switching, Recording and Live Streaming
  • All-New Touch-Friendly Graphical User Interface
  • Real-Time Assistant in Video Making with AREC Online Director





Main Features



Capture Up to 4 Video Sources at the Same Time

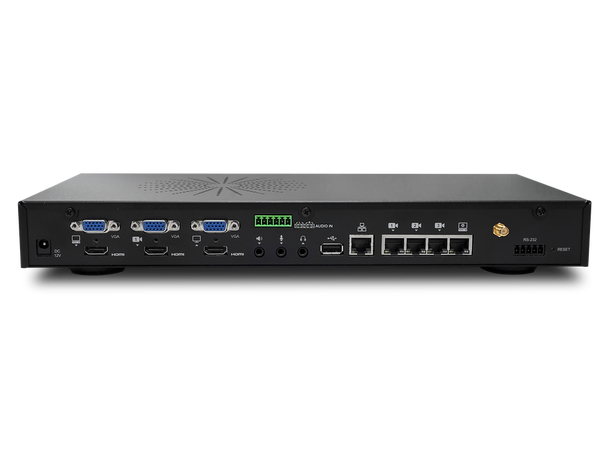

Via HDMI, VGA, RJ-45 interfaces or streaming inputs, AREC LS-400 supports up to 4 Full HD 1080p video sources capturing, mixing, switching, recording and live streaming. Users can choose 1 mixed video plus 4 individual videos recording for flexible use. LS-400 can mix audio via HDMI, 3.5mm stereo audio jacks and AREC wireless microphone.



Touch-Friendly On-Screen Graphical User Interface

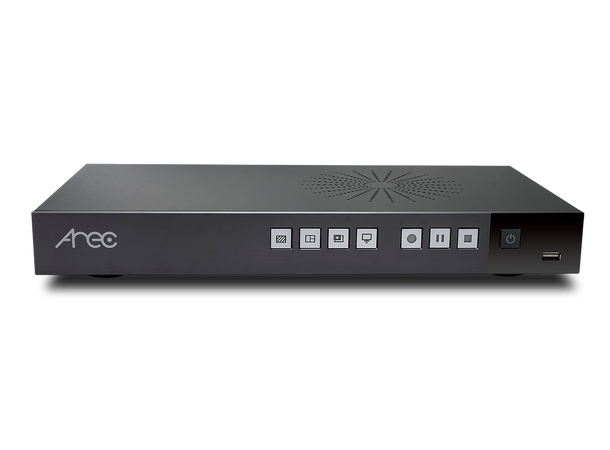

With a compatible interactive display and built-in a touch-friendly graphical user interface (GUI)*, LS-400 allows users to start or stop recording/streaming, change recording layouts, and playback videos with easier control. LS-400 also provides control buttons on the front of machine. *The on-screen GUI supports mouse device control through USB connection.



Broadcast Your Mixed Video

LS-400 can stream mixed video to up to 2 platforms simultaneously, such as YouTube, Facebook, Twitch and other live broadcasting websites.



Real-Time Assistant in Video Making

With AREC Online Director, LS-400 allows users to be in control of their video recording/streaming in real-time. It makes users easily switch and mix between sources, add or remove backgrounds and overlay graphics (titles) for live production



AREC Video Manager : Videos with Just One Click

With the built-in video management platform, administrators or teachers can manage videos stored in the local Media Station remotely. They can download, upload or delete a video file, and edit video information. With available APIs, all of the video content, metadata, and thumbnail can be accessed seamlessly for third party integration.



Backup Your Recordings

With internal 1TB hard drive, LS-400 can save hundreds of hours recording videos. To increase security, LS-400 can automatically backup or upload recordings to AREC MediaCenter, FTP, SFTP, Opencast, Kaltura, Panopto and so on.





General information



Operation System: Embedded Linux system

Power Supply: 12V / 2A

Temperature / Humidity: 0~40°C / 90%

Dimension(L x W x H): 366.4 mm x 187.3mm x 53.1mm

Weight: 2.27kg (5 lbs)

Language: SC / TC / English / Russian / Spanish / Czech / Korean

Accessories: Power adapter / quick guide / wireless Mic antenna / wireless USB numeric keypad





For more specifications, please read the datasheet

Teknisk info

Produktinformasjon

Grensesnitt HDMI
