Mipro ACT-312/ACT-32TC x 2 5A 506~530MHz

 Produktpakke bestående av ACT-312 to kanals mottager og 2 x ACT-32TC oppladbar lommesender.  Litium batterier er inkludert.  NB. Lader bestilles separat.   Hodebøyle/jakkeslag mikrofon bestilles separat.

ACT-3 er en serie med prisgunstig trådløse mikrofonsystemer. Systemene er mye benyttet i klasserom, auditoria, idrettsanlegg, park, kirker/sal med mer. Velegnet opp til 16-20 samtidige kanaler (2-3 bånd). ACT-3 er et rimelig kvalitets mikrofonsystem, enkel i bruk og med solid trådløs overføring.

Model:  ACT-312

Name:  Dual-Channel Receiver
Chassis:  EIA-Standard 19? 1/2 U metal chassis
Frequency Range:  UHF 480 ~ 934 MHz (country dependent)
Bandwidth:  24 MHz
Receiving Mode:  Diversity receiving
Sensitivity:  10 dBµV @ S/N > 80 dB
Frequency Response:  50 Hz ~ 18 kHz
Dynamic Range:  > 106 dBA
Audio Output Balanced:  +16dB / 0dB/ -6dB; Unbalanced: +10dB / 0dB/ -6dB
Antenna:  Detachable. 50O TNC female connector provides bias for the antenna systems.
Power Supply  External 100~240V AC switching power supply
Note Refer to the actual product in the event of product discrepancy.

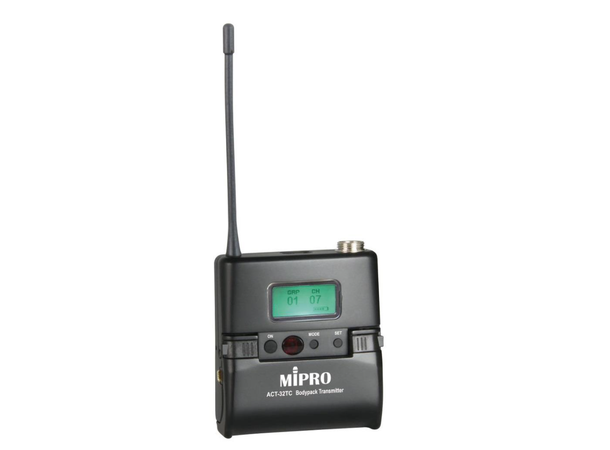

Model: ACT-32TC

Frequency Range:  UHF 480 – 934 MHz
Bandwidth:  24 MHz
Oscillation Mode:  PLL Synthesized
Channel Set-Up:  ACT Sync
RF Output Power:  10 mW / 30 mW (switchable)
Deviation:  < ± 40 kHz
Spurious Emissions : ? -55 dBc
LCD Display Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status and error codes
Max. Input Level:  0 dBV
Mute Connector Optional MJ-70 remote mute switch
Battery Type:  1 ICR-18500 rechargeable lithium battery
Operating Time:  Min. 13 hours
Current Consumption High Power: approx. 125 mA; Low Power: approx. 100 mA
Dimensions (W × H × D) 63 × 70 × 25 mm / 2.5 × 2.8 × 1.0 "
Net Weight Approx. 76 g / 2.7 oz
