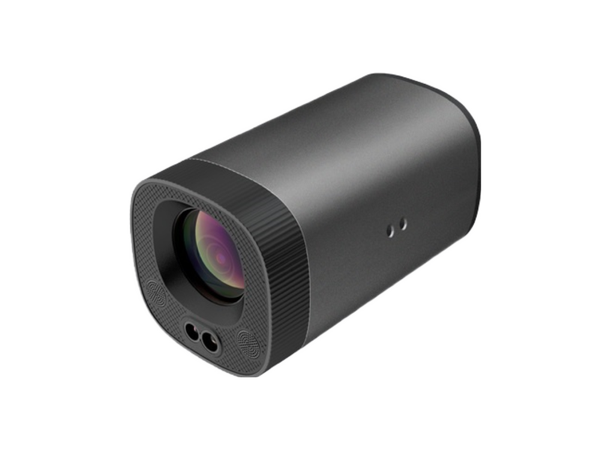

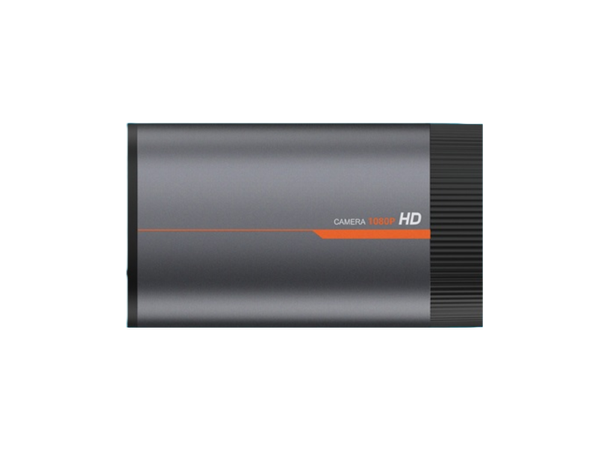

HD Live Camera BC1207
This Live HD Camera BC1207 is a new HD camera for live broadcasting industry. It has perfect functions, superior performance and rich video output interfaces. Featuring with advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition.
Key Features
1. Full HD Resolution:
1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30fps.
2. Optical Zoom Lens:
10X optical zoom lens and 68.8° wide angle lens.
3. Leading Auto Focus Technology:
Fast, accurate and stable auto focusing technology.
4. Horizontal and Vertical Screen:
Support to switch the horizontal screen and vertical screen output mode via DIP Switch, to better meet customers' demands.
5. Professional Image Style:
Support the beauty and jewelry style mode, and adjust the best image effect for live scenes.
6. Built-in pickup:
Built-in 2 MIC pickups, can pick up the sound 6 meters in the omnidirectional direction (the best pickup distance is 3 meters), the unique noise suppression algorithm makes your voice perfectly presented.
7. Low Noise and High SNR:
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
8. Easy to use: No need to download drivers, USB output is plug and play, with a convenient and concise user experience.
Camera Parameter |
Sensor | 1/2.8inch sensor |
Effective Pixels | 2megapixel,16:9 |
Video Format | HDMI video format 1080I@60fps, 1080I@50fps, 1080P@30fps, 1080P@25fps, 720P@60fps, 720P@50fps USB3.0interface video format Horizontal screen:1920×1080@30fps, 1280×720@30fps, 1024×576@30fps, 960×540@30fps, 800×448@30fps, 640×360@30fps, 640×480@30fps, 320×176P30fps Vertical screen:1080×1920@30fps, 720×1280@30fps, 576×1024@30fps, 540×960@30fps, 448×800@30fps, 480×720@30fps, 480×640@30fps |
View Angle | 8.8°~68° |
Focus Length | f=4.34mm~41.66mm |
AV | F1.85~F2.63 |
Optical Zoom | 10X |
Minimum Illumination | 0.1Lux(F1.8, AGC ON) |
DNR | 2D?3D DNR |
Super Auto noise reduction | On/Off |
White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
Focus | Auto/Manual/One Push Focus |
Exposure | Auto/Manual |
BLC | On/Off |
SNR | >50dB |
Vertical Screen Switch | On/Off |
Focus Assist | On/Off |
Minimum Object Distance | 10cm(W)~100cm(N) |
Input/Output Interface |

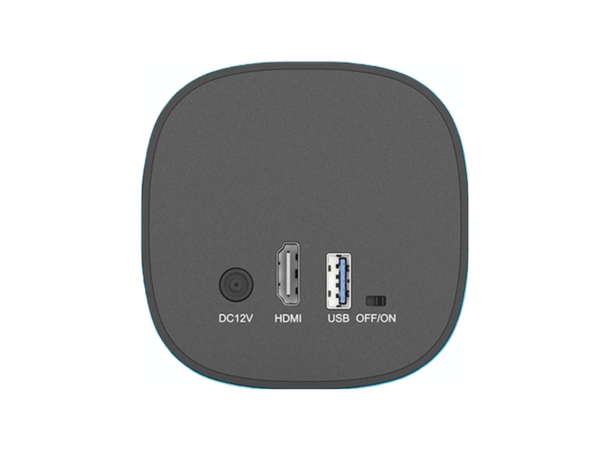

Video Output | USB Interface: Support audio signal output HDMI Interface: Support audio and video output |
Video Compression Format | YUV, NV12, MJPG, H.264 |
Audio Input | Built-in 2 MIC pickups |
Control Interface | USB Interface |
Other Parameter |
Input Voltage/Current | Voltage | Power Adapter | 12 |
USB | 5V |
Current | Power Adapter | 0.425 |
USB | 1A(Max.) |
Power Consumption | 5W(Max.) |
Stored Temperature | -10?~+60? |
Stored Humidity | 20%~90% |
Working Temperature | -10?~+50? |
Working Humidity | 20%~80% |
Dimension(W*H*D) | 78mm×137.5mm×78mm |
Weight | 0.6KG |
Application | Indoor |
Accessory | Power Supply, Wireless Remote Control, USB3.0 Cable, User Manual, Warranty Card |
