Minrray Ptz Keyboard Controller Kbd1010

Ptz Keyboard Controller

Varunummer: 128544
Alt. varunr: KBD1010
BeskrivningExtern Info
Beskrivning

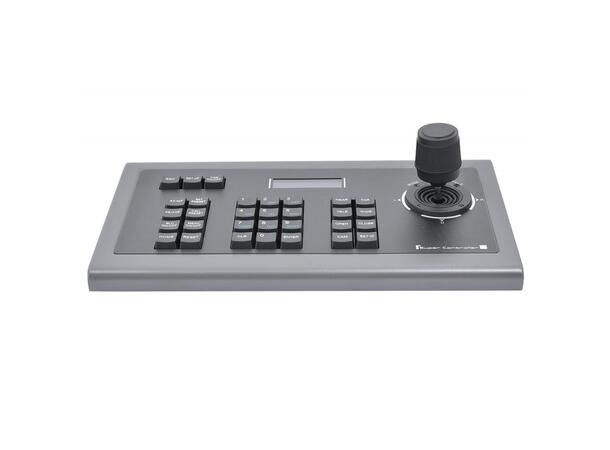

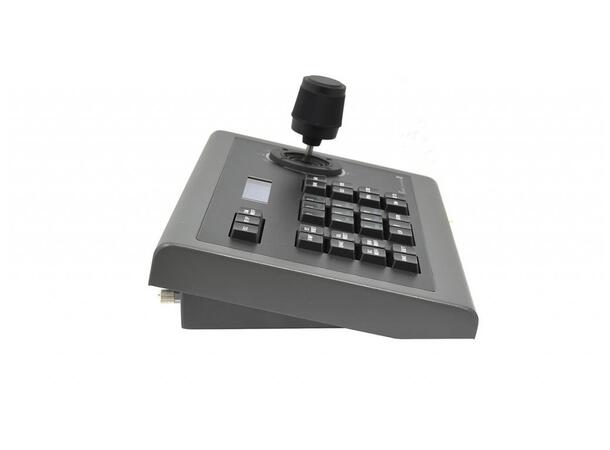

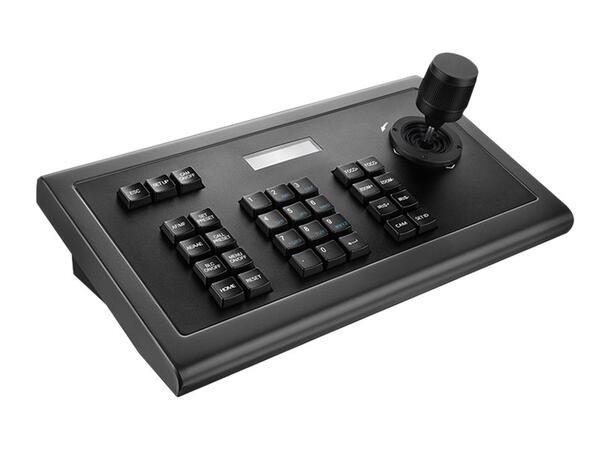

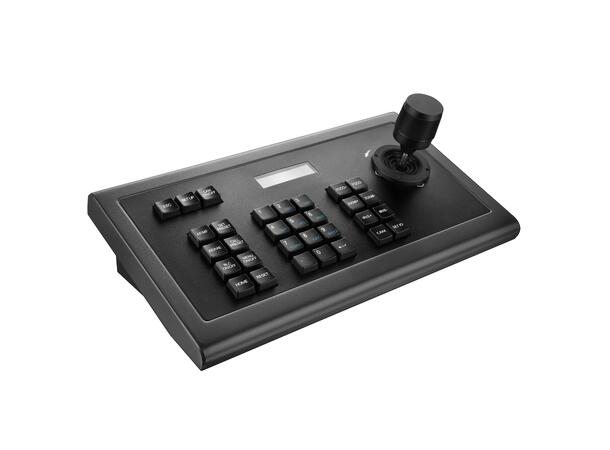

MINRRAY PTZ KEYBOARD CONTROLLER KBD1010

KBD1010, a network(IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols from the main manufacturers in the market, supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
This compact camera controller features a high-quality joystick that allows variable speed control, as well as fast camera switching.

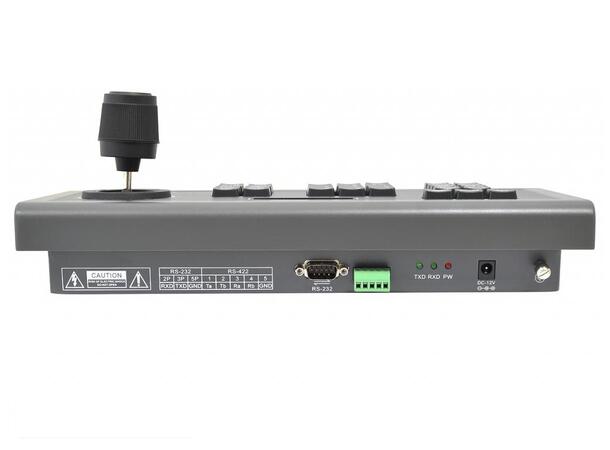

Features Port Network: RJ45.
Serial Port: RS422, RS232
Protocol Network : ONVIF, VISCA
Serial Port: VISCA, PELCO D, PELCO P
Communication BPS 2400bps, 4800bps,
9600bps, 19200bps, 38400, 115200
Interface 5PIN, RS232, RJ45
Joystick up, down, left, right, zoom, lock
Power Supply DC12V±10%
Power Consumption 6W MAX
Upgrade WEB Upgrading
