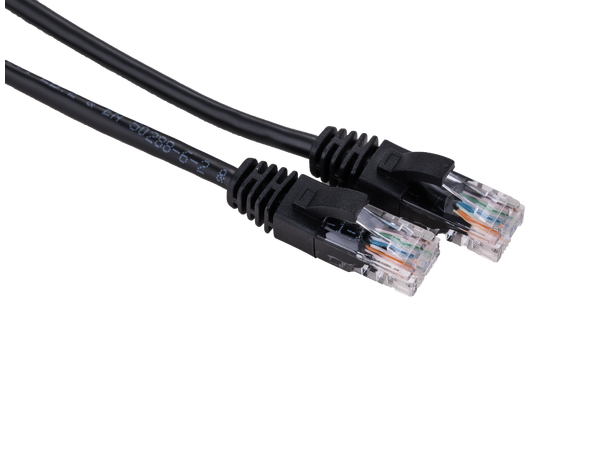

LinkIT Patch U/UTP Cat.5e Black 1m
AWG26/7 | PVC
Cat.5e cables are cost-effective cables for less demanding installations, where the application of the network will not change in the future. Can handle 1Gbps speed and 100MHz bandwidth. Maximum total cable length end to end = 100 meters. The cable has gold-plated solid cast RJ45 connectors.
- Can handle 1Gbps speed
- 100MHz bandwidth
- Maximum total cable length end to end = 100 meters
- Gold-plated solid cast RJ45 connectors
Main Specifications
| Length (m) | 1 |
|---|
| Cable type | U/UTP |
|---|
| Color | Black |
|---|
| Category | Cat.5e |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 male (8P8C) |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
| Conductor design | Stranded |
|---|
Extended Specifications
| Cable fire class | Eca |
|---|
| Directional | No |
|---|
| Anti-kink sleeve | 5.0mm |
|---|
| AWG wire size | 26 |
|---|
| Transmission speed | 1000Mbps |
|---|
| Frequency (Mhz) | 100 |
|---|
| Cable structure | 4 x 2 AWG 26/7 Twisted pair |
|---|
| Locking type | Snagless |
|---|
| NVP value | 65% |
|---|
| Jacket material | PVC |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Pin Assignment | 568B-568B |
|---|
| Halogenfree | No |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Connector contact plating | Gold plated 2u |
|---|
| Certifications | CE, RoHS |
|---|
