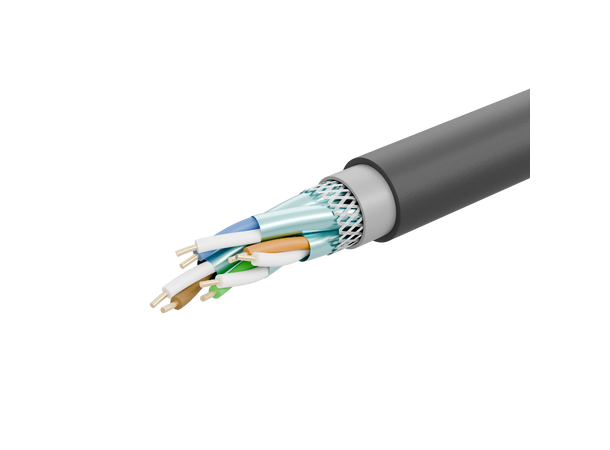

LinkIT Cat.6 S/FTP Outdoor Cable 305m
PVC inner | PE outer | UV rated | AWG 23 Black
Outdoor Cat.6 cable with outer UV-resistant sheath that allows the cable to be used outdoors. Can handle a mimimum of 500MHz band width. The cable is specially designed for open installation.. Due to a solid sheath, the cable can also be stapled to the wall with staples. Fire class Eca. The cable is certified according to the new CPR directive
- Specifically designed for open installation
- Due to a solid sheath, the cable can also be stapled to the wall with staples.
- Certified according to the new CPR directive
- Can handle a mimimum of 500MHz band width
- Fire class Eca
Main Specifications
| Length (m) | 305 |
|---|
| Cable type | U/UTP |
|---|
| Color | Black |
|---|
| Category | Cat.6a |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | S/FTP – shielded/foiled twisted pairs |
|---|
Extended Specifications
| AWG wire size | 23 |
|---|
| Transmission speed | 1000Mbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| NVP value | 69% |
|---|
| Jacket material | PE |
|---|
| Inner cape | PVC |
|---|
| Conductor diameter | 0,550mm |
|---|
| Outer Cape diameter | 7,0mm |
|---|
| Halogenfree | No |
|---|
| Core color 1 | Blue, White |
|---|
| Core color 2 | White, Orange |
|---|
| Core color 3 | Green, White |
|---|
| Core Color 4 | Brown, White |
|---|
| EAN | 7072262023403 |
|---|
| Certifications | CE, RoHS |
|---|
| Segregation Class | C |
|---|
