LinkIT Field Plug Cat.6A STP PoE++ 22-26/1 AWG | Support 100W type 4 LinkIT Field Plug Cat.6A STP PoE++ 22-26/1 AWG | Support 100W type 4

LinkIT Field Plug Cat.6A STP PoE++

22-26/1 AWG | Support 100W type 4

Varunummer: 131934
Alt. varunr: LI-FTP-C6ASTP-PoE4
BeskrivningTeknisk infoExtern Info
Beskrivning

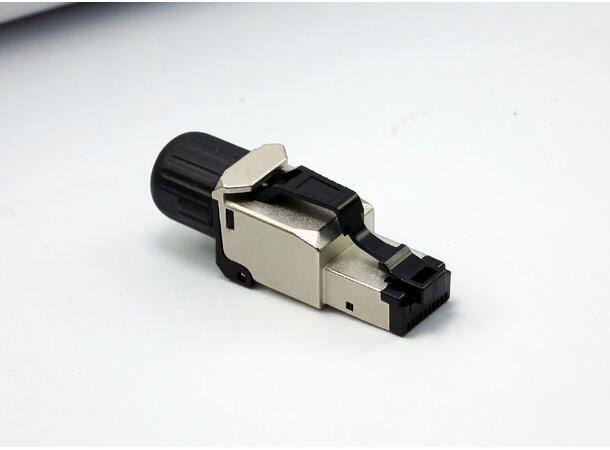

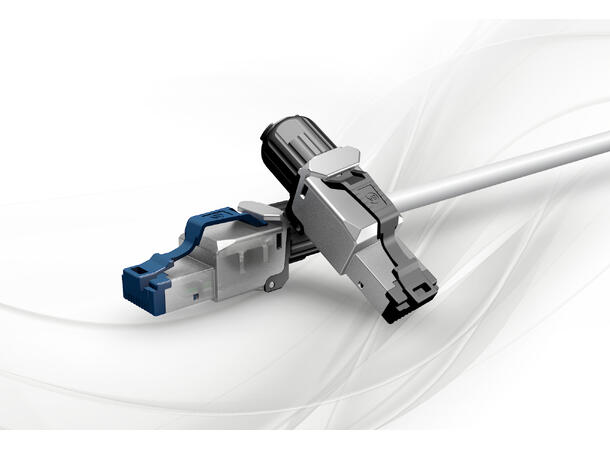

LinkIT Field Termination Plug Cat.6A STP

22-26/1 AWG | Support 100W type 4



Qualified Screened Cat.6A Connecting Hardware

  • Approved for PoE++ type4
  • Supports IEC 60512-99-002 standard 90W / 2A to prevent arcs that could harm connected equipment and surroundings.
  • Insulation Resistance: 500 Mohms minimum
  • Contact Resistance: 20 mohms maximum



Main Specifications

Brand

LinkIT

Color

Grey+Black

Category

Cat.6a

Cable shielding

STP



Extended Specifications

AWG wire size

26~22

Transmission speed

10Gbps

Cable Diameter (mm)

6~8

Standards

IEC60603-7-51, ISO/IEC11801 2.2 Edition, CENELEC EN 50173-1, IEC 60512-99-002:2019, TIA-568.2-D

EAN

7072262011493

Certifications

CE, REACH, RoHS

Teknisk info

Produktinformasjon

Kabelkategori Cat.6a
