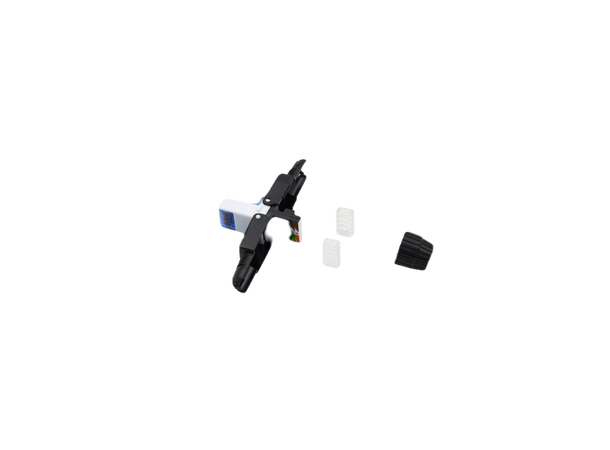

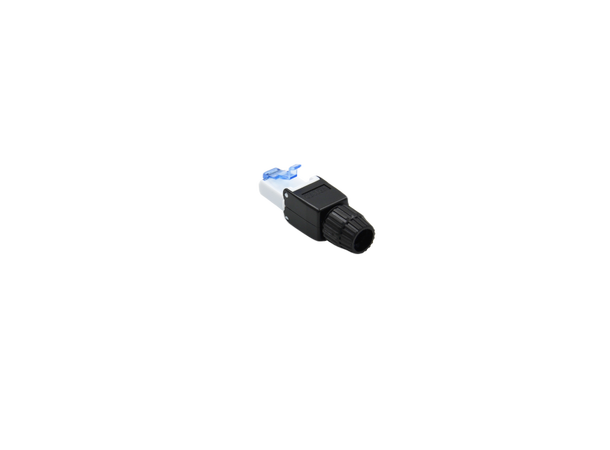

LinkIT Field Connector Cat.6A, UTP
For Solid Wire AWG 23-26 | 50µ gold wires
RJ45 plug for on-site assembly, easy installation, requires only a common wire cutter.
- For cable with solid core from 23 - 26 AWG.
- Wire diameter 5.5mm to 7.5mm
- Assembly adapter for inner cables from 0.9mm up to 1.5mm.
- Connectors with 50µ gold plating
Linkit Field Connector, Cat.6A, UTP, is an RJ45 plug designed for easy on-site assembly, requiring no special tools. It is built with user convenience in mind and only requires a common wire cutter for installation. The plug is made of durable plastic and is compatible with cables featuring solid cores in the 23 - 26 AWG range. It supports an outer wire diameter of 6.0 mm to 7.5 mm and includes an assembly adapter for inner conductors with a diameter from 1.0 mm to 1.5 mm. To ensure reliable connectivity and long-lasting performance, the connectors are equipped with 50µ gold plating. This makes it an ideal choice for high-quality network installations where durability and performance are critical.
Specifications:
Brand: LinkIT
Color: Black
Cable Shielding: U/UTP - Unshielded/Unshielded twisted pairs
Material: Plastic
AWG Wire Size: 23-26
Voltage: 125V AC
Certifications: CE, RoSH
GTIN: 7072262007984
Country of Origin: China
