HH Preamp MZ-64P 5 inn 4 zones Matrix

2 mic/line med prio al lim remote Matrix

Varunummer: 131731
Alt. varunr: MZ-64P
BeskrivningExtern Info
Beskrivning

HH Preamp MZ-64P 5 inn 4 zones Matrix

2 mic/line med prio al lim remote Matrix



Description

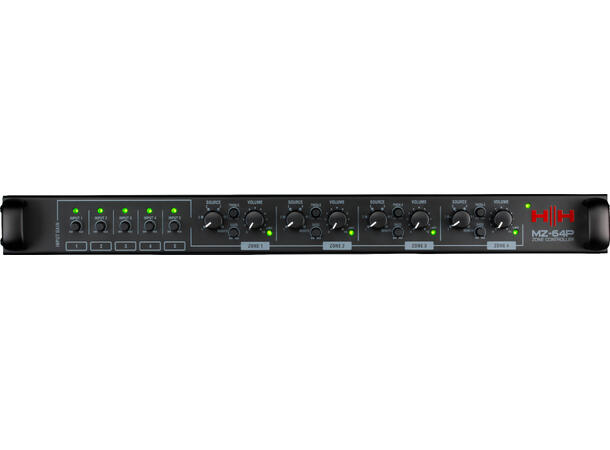

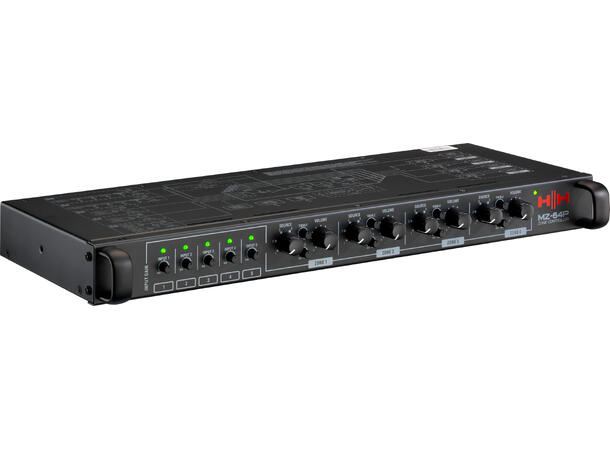

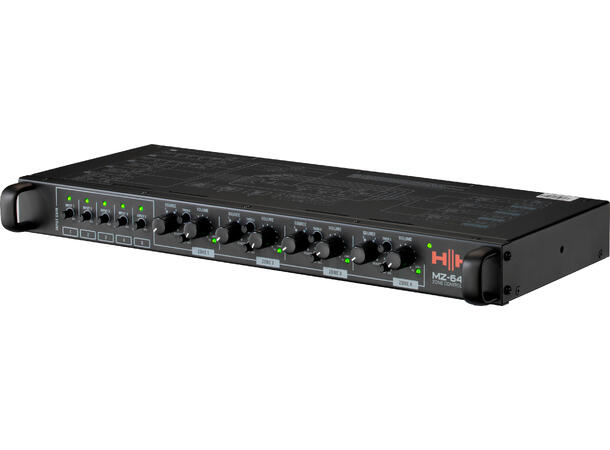

The MZ-64P is a zone control pre-amplifier. Containing four individual distribution zones and five fully featured input channels, audio can be directed accordingly. A dedicated fire/emergency input can override the system. The steel 1U housing is extremely robust and front controls are easy to operate. Front 'scribble' strips allow each zone and input identification. The perfect installation pre-amplifier for retail, leisure, café, bars and halls.

  • 4 zone preamplifier
  • 5 comprehensive audio input channels
  • Balanced Euroblock line outputs per zone
  • Independent bass and treble EQ adjustment on each zone
  • Compact space saving fan-less 1U design (rack mountable)
  • Universal ~100-240V worldwide operation

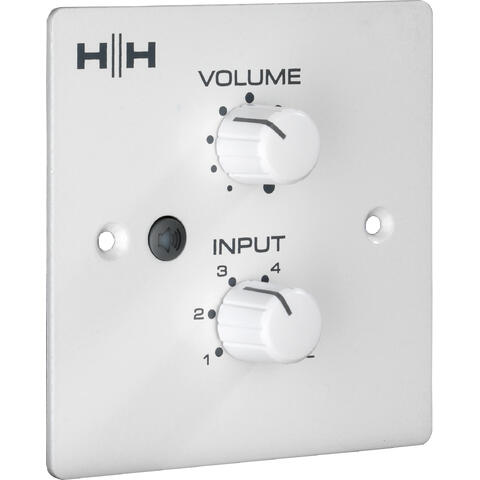

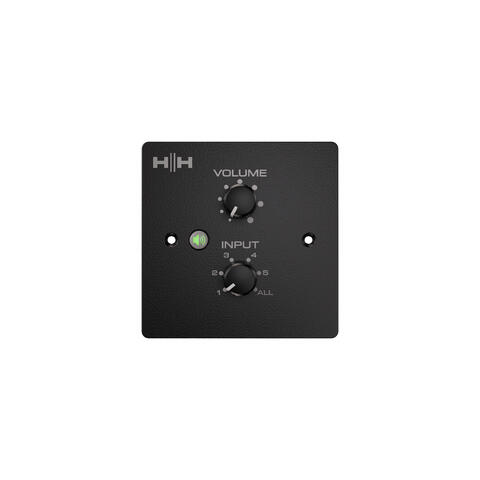

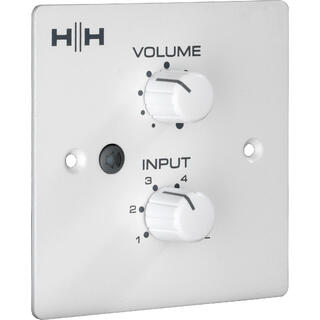

  • Remote volume control capability using HH MZ-C2 module and standard ethernet cable



System TypeZone preamplifier with input routing

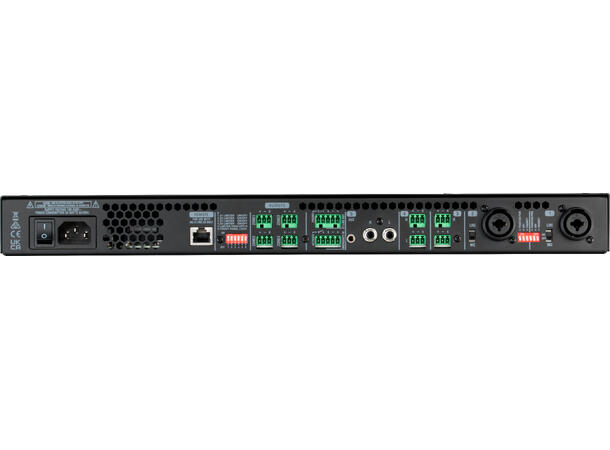

InputsCH1/2 balanced XLR/6.3mm jack combi socket, CH3/4 L&R balanced 3.5mm Euroblock, CH5 3.5mm stereo aux and stereo RCA
Outputs3.5mm Euroblock connectors for each zone
IndicatorsPower/Standby, Input signal present and peak LEDs, Output signal present and clip LEDs
ControlsAdjustable gain control for each input; source select and volume control for all zones
Frequency Response20-20kHz ±0.1dBu
THD+N<0.008% @0dBu in, maximum volume; <0.005% @+6dBu in, maximum volume
S/N>110dB
Noise Floor< -90dBu
Crosstalk< -105dB between channels, maximum volume
Emergency OverrideBalanced 3.5mm Euroblock connector, overriding the normal inputs
Lineout3.5mm Euroblock line level output that follows zone 1, useful for system expansion
Other ControlsCH1/2 Mic/line level, phantom power; individual zone limiters with 0dBu/+4dBu modes; front panel lock
DSPORIGIN advanced multicore platform
EQEach zone has bass and treble shelving control with a low pass filter mode; switchable high pass filter on CH1/2
Power Consumption<8W Typical, <30W Maximum
Unit Dimensions (Hwd)44 x 483 x 198 mm (1.7" x 19" x 7.8")
Unit Weight2.3kg, 5.1lbs
Carton Dimensions (Hwd)150 x 630 x 290 mm (5.9" x 24.8" x 11.4")
Packed Weight3.8kg, 8.4lbs
AccessoriesRack mounting kit, Euroblock connectors (8x 3.5mm 3 way, 2x 3.5mm 5 way, IEC mains lead, HH user manual download card
