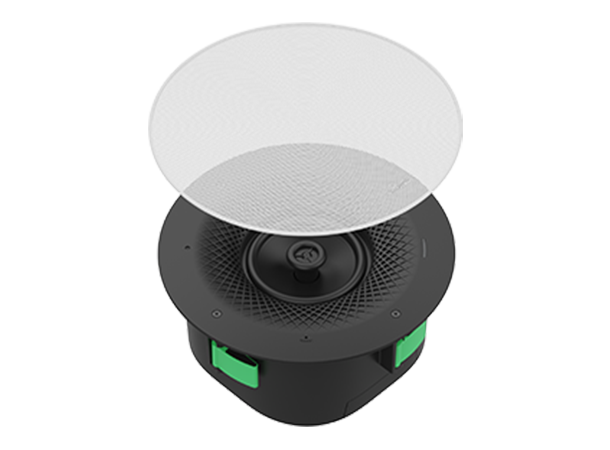

Yealink SkySound CS10

2-Way Coaxial Networked Ceiling Loudspeaker for Exceptional Sound Quality

The Yealink SkySound CS10, a low-profile 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms. Versatile and engineered for ease of use, the CS10 is a PoE-enabled speaker that can optionally deployed with variety supplementary components, simplifying installation across diverse ceiling types. Its covert design, establishes the CS10 as more than just a speaker – it is an essential addition to your meeting space, enhancing both visual and auditory experiences. The CS10 is not just a functional device for your conference room; it's a statement of elegance and technological prowess, representing the ideal audio solution for your professional needs.

If customer need to use UVC86 and UVC84 as hosts, please follow these steps:

1.    Ensure that UVC86, UVC84, and YRC are on version V33.

2.    Upgrade CM20 to version 294.410.0.35.

3.    Upgrade CS10 to version 298.410.0.40.

Key Features

Innovative Coaxial Structure:

Features a 2-way coaxial setup with a robust 5.7 inch LF Woofer and a crisp 1.1 inch HF Tweeter for high-fidelity audio delivery.

High-Performance Acoustics:

Boasts impressive acoustic parameters, with a sensitivity of 88dB@1W 1m and a maximum SPL of 99dB@20W 1m, ensuring clear, powerful sound.

PoE-Enabled Active Speaker:

SkySound CS10 masterfully blends active speaker functionality with integrated DAC and PoE technology, enabling swift digital signal processing from the network for a hassle-free setup and minimal latency, tailored for dynamic professional scenarios.

Dante Ready for Advanced Audio Networking:

Available in both Dante-enabled and standard versions, the SkySound CS10 offers seamless integration into sophisticated audio networks. Choose the Dante version for advanced audio networking capabilities, providing flexibility for complex setups and integration with Dante audio systems.

Versatile Deployment:

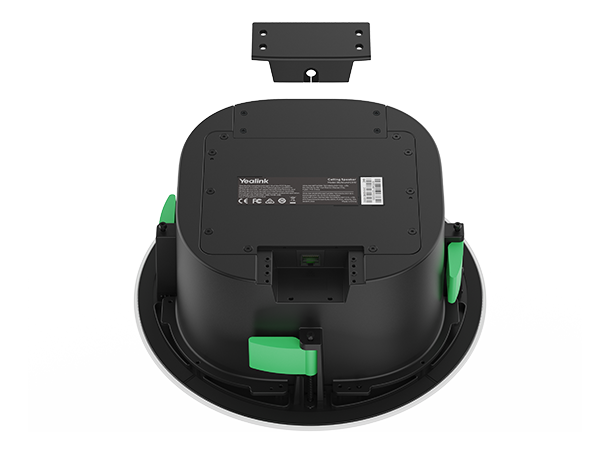

Offers diverse indoor installation solutions, compatible with various ceiling types and grid systems, ensuring easy adaptation to any interior design.

Sophisticated Design:

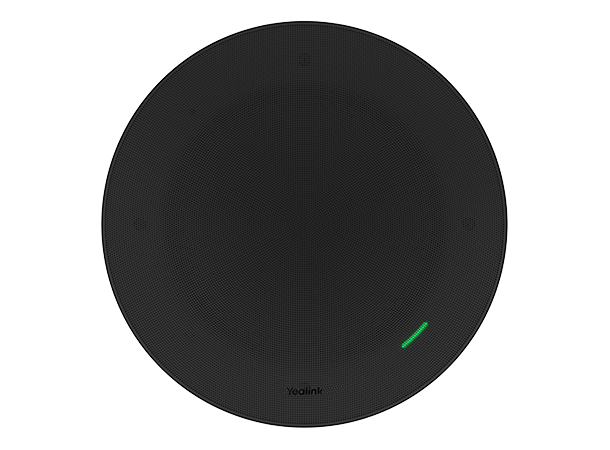

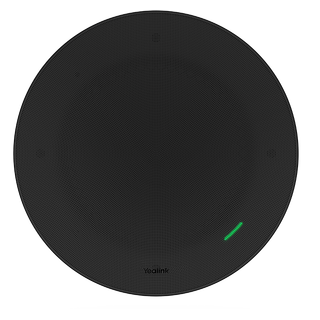

Features a detachable, paintable magnetic grille in black and white, adding to its sleek, low-profile (120mm) look that complements any modern interior

Product Specifications

Package Content

• SkySound CS10 Speaker

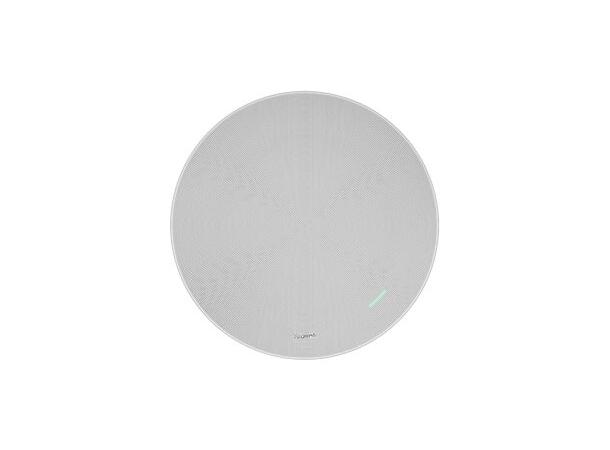

• White Mesh Cover (Black Optional)
• Quick Start Guide
• Assembly Fixing Bracket
• Dust Cover
• Deployment Instruction Templete
• Bracing Bridge (Optional)
• Screw x 6 (M3 x 4CMHOZN3)
