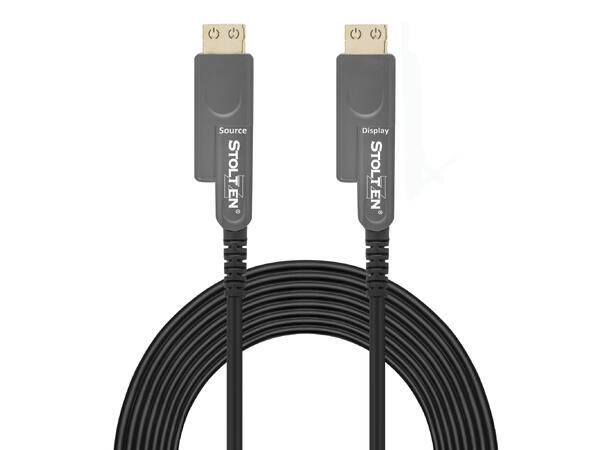

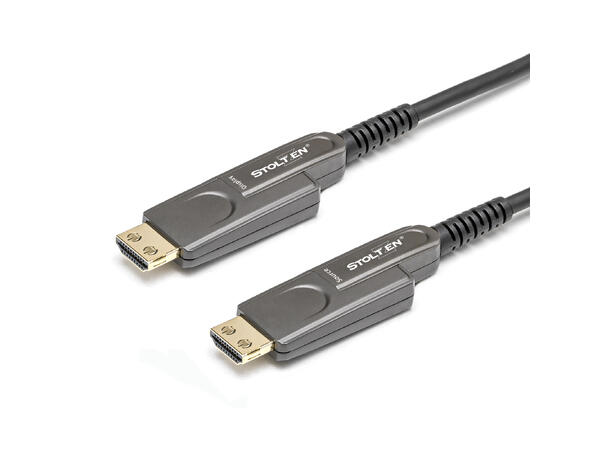

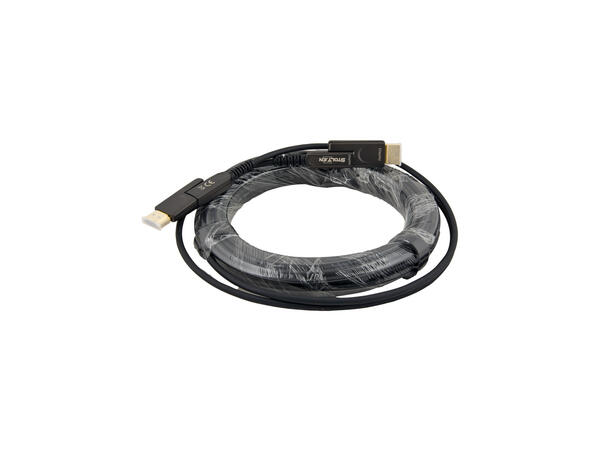

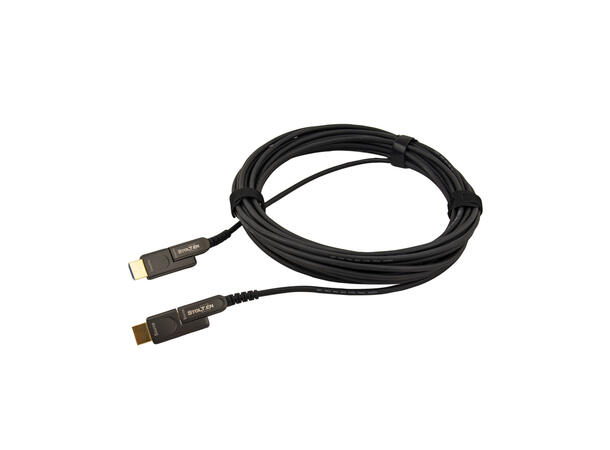

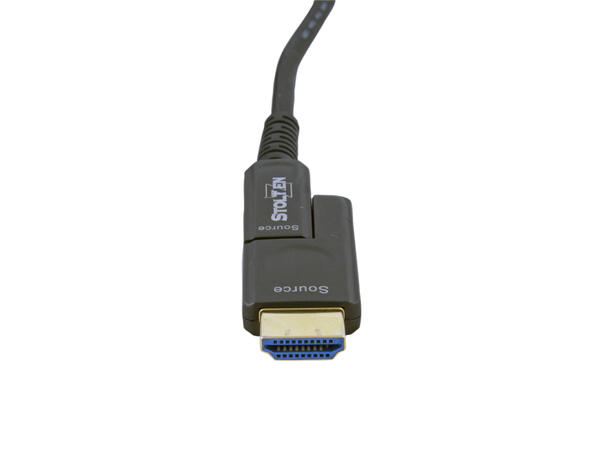

Stoltzen AOC HDMI 2.0 4K @ 60 20m
The perfect solution for long-distance signal transmission
SHDC-8800 HDMI Type D Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market.
It supports HDMI Maximum Data Rate 6Gbps (18G bandwidth), flexible and provides full HDMI signal integrity,
support up to 100m maximum length, plug and play. No external power required.

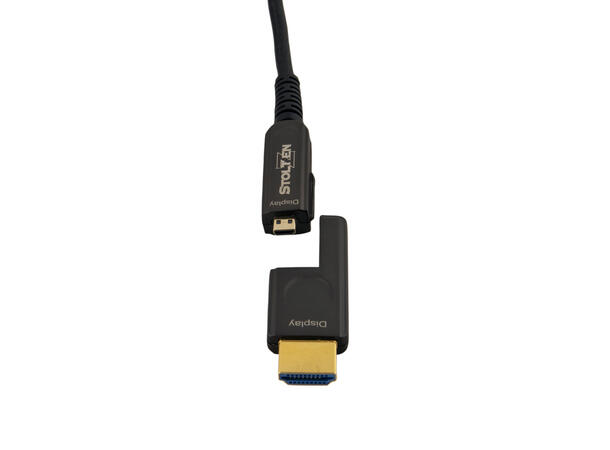

- Mini HDMI w/Adapter
- 18 Gbps Bandwidth
- Does not require external power supply
- LSZH halogen free
Which can be used with HDMI Type D to HDMI A adaptor, used for pass through the conduit; also can be used together with
HDMI Type D to DVI Adaptor, have following multi-application:
| HDMI D-
HDMI D |
4K@60 18Gbps
4:4:4 100m |
| HDMI A -HDMI A |
4K@60
18Gbps 4:4:4 100m |
| HDMI D- HDMI A |
4K@60
18Gbps 4:4:4 100m |
| HDMI A-HDMI D |
4K@60
18Gbps 4:4:4 100m |
| DVI -DVI |
1080p@60Hz
/ 4K@30Hz to 100m |
| HDMI-DVI |
1080p@60Hz
/ 4K@30Hz to 100m |
| DVI-HDMI |
1080p@60Hz
/ 4K@30Hz to 100m |
Main Specifications
| Length (m) |
20
|
| Color |
Black
|
| Brand |
Stoltzen
|
| Conductor material |
Hybrid Copper & Fibre
|
| Connector type 1 |
HDMI A- male 19 pin
|
| Connector type 2 |
HDMI A- male 19 pin
|
| HDMI version |
HDMI 2.0
|
| Max Resolution |
3840×2160 60Hz
|
| Product series |
AOC
|
| Bandwidth |
18Gbps
|
| Cable shielding |
Double shielding
|
Extended Specifications
| Directional |
Yes
|
| Active |
Yes
|
| AWG wire size |
30
|
| Jacket material |
LSZH
|
| Anti-kink sleeve |
Assembly shell
|
| Halogenfree |
Yes
|
| Connector contact plating |
Gold plated
|
| Certifications |
REACH, RoHS |
