Stoltzen Solvera - EDID, HPD & HDCP Fix A problemsolver for HDMI Installations Stoltzen Solvera - EDID, HPD & HDCP Fix A problemsolver for HDMI Installations

Stoltzen Solvera - EDID, HPD & HDCP Fix

A problemsolver for HDMI Installations

Product nr: 131434
Alt. varunr: ST-SOLVERA
DescriptionAccessoriesSupport
Description

Stoltzen Solvera - EDID, HPD & HDCP Fix

A Problem Solver for HDMI Installations

Inspired by the Latin word solvere (to solve), we present the Stoltzen SOLVERA.

Designed to simplify installation issues, this compact device boasts a range of intelligent features:

  • EDID Manager
  • HDCP Manager
  • 5V Manager
  • CEC Blocker

Key Features:

  • Supports up to 4K@60 4:4:4 and HDCP2.2
  • EDID & HDCP management
  • Powered by HDMI or USB-C
  • Disables 5V when source lacks TMDS
  • CEC block switch

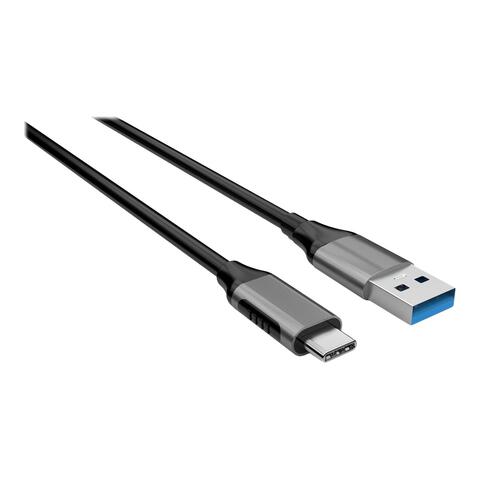

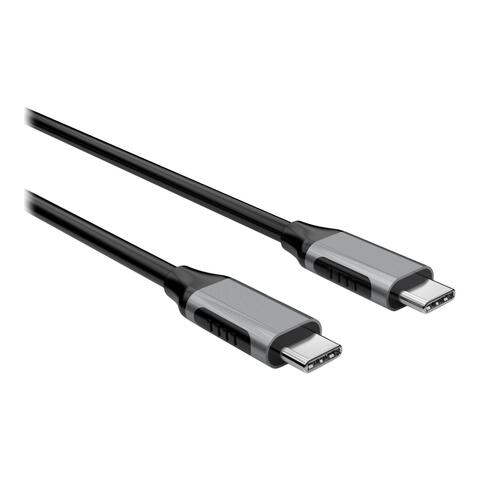

Recommend using a power source to reduce connection time. USB A-C or C-C cables available under accessories

Specifications

Video Input
Input 1x HDMI 2.0
Input Connector 1x Female type-A HDMI
HDMI Input Resolution Up to 4K@60 4:4:4
Video Output
Output 1x HDMI 2.0
Output Connector 1x Female type-A HDMI
HDMI Output Resolution Up to 4K@60 4:4:4
General
Bandwidth 18Gbps
Power Supply 5V 1A
Power Consumption 2.4W (MAX)
Dimension (W*H*D) 54x18x60mm
Net Weight 85g

EDID Settings

Switch Resolution Audio
000 Passthrough
001 1080p LPCM
010 1080p DTS/Dolby
011 3840x2160@30Hz HDR LPCM
100 3840x2160@30Hz HDR DTS/Dolby
101 3840x2160@60Hz HDR LPCM
110 3840x2160@60Hz HDR DTS/Dolby
111 User defined EDID
