Stoltzen THALIA PTZ5 12x 4K60 NDI | HX
60hz | SDI | NDI | HDMI | USB2.0
Key Features
4K Ultra HD Image
Built with SONY high quality CMOS sensor, with resolution up to 4K@60fps.
Optical Zoom Lens
12x optical zoom lens, with 80.4° FOV without distortion.12X optical zoom 80.4°wide-angle lens (PTZ5-12X-NDI), 25X optical zoom 59.2°wide-angle lens (PTZ5-25X-NDI), and 31X optical zoom 59° wide-angle lens (PTZ5-31X-NDI)
Leading Auto Focus Technology
Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.
Low Noise and High SNR
Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Multiple video output interfaces
With video 4k output from HIMI, USB2.0 and LAN at the same time.
Multiple Audio/Video Compression Standard
Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB2.0 port, support AAC audio compression over A-in port. LAN interface supports H.264/H.265 video compression, USB2.0 interface supports MJPG ,H264 ,YUY2 ,NV12 ,H265; A-IN interface supports AAC audio compression coding.
Multiple Network Protocol
Support ONVIF, GB/T28181, RTSP, RTMP protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.
Multiple Presets
Support up to 255 presets (10 presets by remote controller)
Technical Specification:
| Model | PTZ5-12X-NDI | PTZ5-25X-NDI | PTZ5-31X-NDI |
| 4K PTZ Camera |
| Image Sensor | 1/2.5-inch SONY CMOS Image Sensor | 1/1.8-inch SONY CMOS Image Sensor | 1/1.8-inch SONY CMOS Image Sensor |
| Focus | f=3.85 mm~ 43.06 mm ±5% | f=7.1 mm~ 171.95 mm ±5% | f=6.91 mm~ 214.64 mm ±5% |
| Viewing Angle | H:7.59°(N)~ 80.4°(W) | H:2.5°(N)~ 59.2°(W) | H:1.98°(N)~ 59°(W) |
| V:4.6°(N)~ 50.0°(W) | V:1.4°(N)~ 34.6°(W) | V:1.12°(N)~ 34.14°(W) |
| Iris Value | F1.8 ~ F3.56±5% | F1.61 ~ F5.19±5% | F1.35 ~ F4.6±5% |
| Effective Pixel | 8.51M 16:9 |
| Video Signal | HDMI |
| 3840*2160P60/50/25/59.94/29.97 ,1080P60/50/ 30/25/59.94/29.97 ,1080I60/50/59.94; 720P60/50/59.94 |
| SDI |
| 1080P60/50/30/25/59.94/29.97 ,1080I60/50/59.94 ,720P60/50/59.94 |
| USB2.0 |
| MJPG:3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30 |
| H264:3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30 |
| YUY2:800*448 /720*480P25 ,640*360 /432*240P30 |
| NV12:800*448P25 ,640*480 /640*360 /432*240P30 |
| Optical Zoom | 12x | 25X | 31X |
| Digital Zoom | 15x | 15x | 15x |
| AI | Real-time Tracking, Zone Tracking |

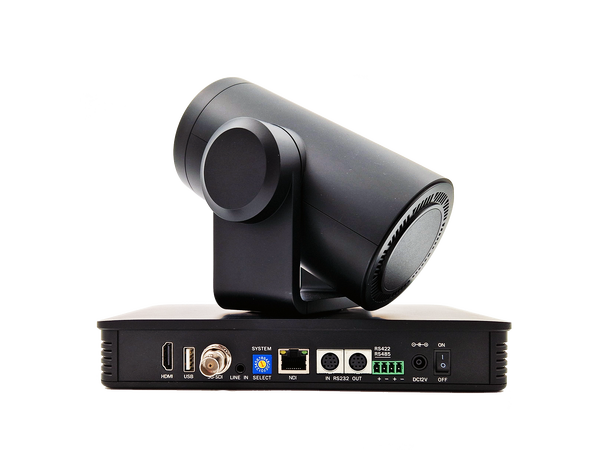

| Back Panel | HDMI, SDI ,LAN(POE), USB2.0 ,A-IN ,RS232-IN ,RS232-OUT ,RS422(Compatible with RS485), |
| Rotary Dip Switch ,DC12V Power Supply, Power Switch |
| Accessory | Power Adapter, RS232 Cable, USB2.0 Cable, Remote Control, User Manual |
