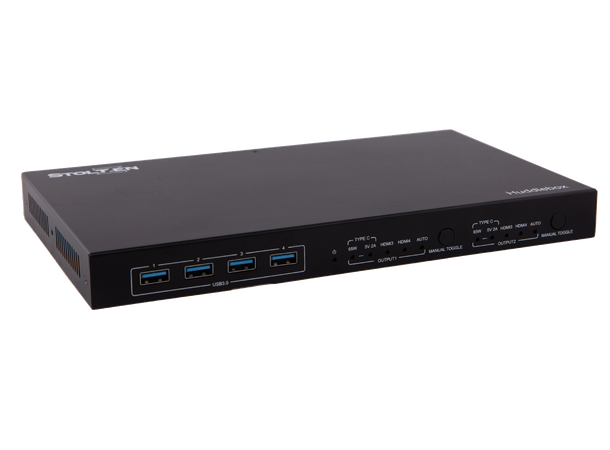

Introducing the Stoltzen HERA Huddlebox: The Future of Seamless Connectivity
In a world where technology is constantly evolving, the need for a versatile and comprehensive solution has never been greater. Enter the Stoltzen HERA Huddlebox, a groundbreaking device that redefines the boundaries of connectivity.
What sets the HERA Huddlebox apart? It's the perfect fusion of a USB-C Docking system, a USB-Switcher, and the capability to support legacy HDMI inputs. With just a single USB-C cable, users can effortlessly connect to two screens, ensuring a streamlined and clutter-free workspace. But that's not all. Unlike traditional AV switchers that are limited to video inputs like HDMI, VGA, DVI, or Displayport, the HERA Huddlebox goes a step further. It embraces the power of USB-C, allowing users to harness the potential of two external screens, a feature rarely seen in the market.
Whether you're looking to upgrade your video conferencing setup, streamline your connectivity, or simply want a device that can do it all, the Stoltzen HERA Huddlebox is your ultimate choice. Experience the future of connectivity today.
For the USB-C input ports, one provides up to 65W charging, the other provides external 5V2A charging for mobile phones.
In the HuddleBox its built in several modes for supporting various needs and applications;
1 screen setups:
- Manual Mode
o Fully control your HuddleBox from 3rd party-controller
- Mirror Mode
o Will always duplicate latest input.
2 screens setups:
- Conference Mode – Auto

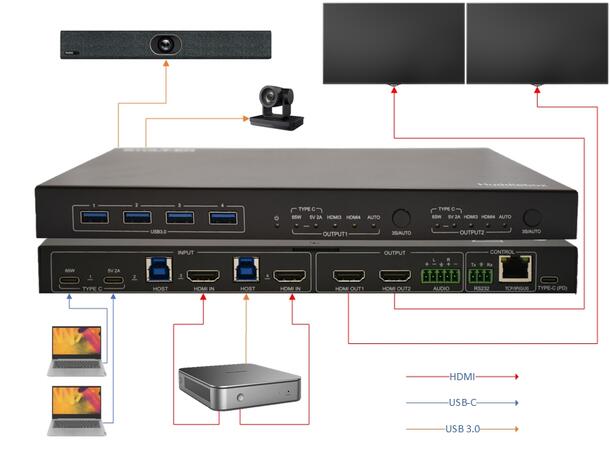

o HDMI1 & HDMI2 is allocated to each output, when USB-C Connects it uses MST to take over both outputs, working as a BOYD solution for two screens.
- Conference Mode – Static Route
o 1 input fixed to an output
o Rest of inputs autoswitch on the other output
- Manual Mode
o Fully control your HuddleBox from 3rd party-controller
- Mirror Mode
o Will always duplicate latest input on both outputs.
- Matrix Mode
o Will duplicate single sources, when 2nd sources connects, they will automatically switch to latest 2 connected sources
Features |
Video | Supports 18G, 4K@60 4:4:4, HDR10, Dolby Vision, HDCP2.2 compliant |
USB-C supports DP1.2 MST function |
Supports scaling without framerate change |
Power | Power Input 100W PD3.0 Port |
USB-C Port #1 Supports 65W PD3.0 Charging |
USB-C Port #2 Supports 10W 5V2A Charging |
Control | Controllable via front panel, RS232 and TCP/IP (GUI) and Auto-switching |
USB-C Port #1 Supports RS232 communication |

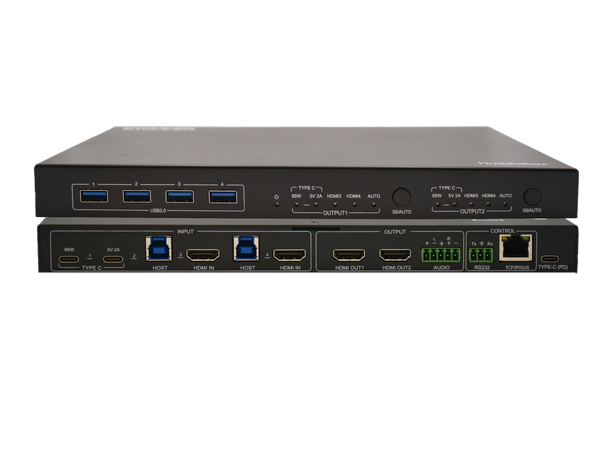

Physical Interface |
Input | 2 x Type-A HDMI 2.0 |
2 x USB-B USB 3.0 |
2 x Type-C (1x 65W, 1x 10W) |
Output | 2 x Type-A HDMI 2.0 |
1 x 5-pin balanced audio |
Connections | 4 x USB-A USB 3.0 |
1 x 3-pin terminal block for RS232 control |
1 x RJ45 connector for TCP/IP control |
Firmware changelog:
v1.14
Fixed: Resolved an issue where some MAC OS machines displayed the image with a wrong color/pink tint overlay.
v1.13
Added: Activated LAN control on port 23.
v1.16
Added: Reduced StartUp time by 45%.
