Stoltzen Apollo Controller
For 3000 & 6000
The Stoltzen SA-C is a versatile IP control box designed to serve as an A/V control hub for managing, configuring, and controlling encoders and decoders within a local network. Equipped with two Ethernet ports and two RS232 ports, it offers seamless integration and flexible control options through LAN (Web GUI & Telnet). The SA-C is compatible with third-party controllers, providing simple and adaptable management solutions for any setup.
With its automatic encoder and decoder discovery feature, the SA-C streamlines device management. It supports matrix switching and video wall operations between encoders and decoders, and its web-based configuration interface simplifies setup. The device is fully compatible with configuration files from the Apollo Configurator (PC Configurator), enabling efficient operations like matrix switching and video wall management.
Key Features
- IP Control: Manage devices through LAN using Web GUI, Telnet, or a third-party controller.
- Multiple Connectivity Options: Equipped with two Ethernet ports and two RS232 ports for versatile control and integration.
- Automatic Discovery: Automatically identifies encoders and decoders on the network for quick setup.
- Matrix Switching: Supports seamless matrix switching and video wall operations between encoders and decoders.
- Configuration File Compatibility: Works with configuration files from the Apollo Configurator to simplify and accelerate operations.
- Web-Based Interface: User-friendly configuration interface accessible via the web for streamlined control.
- Dedicated Apollo Controller: Specifically designed for managing the Apollo 3000 and Apollo 6000 series encoders and decoders.
Main Specifications
| Brand |
Stoltzen
|
| Product series |
APOLLO
|
| Control Method |
LAN (Web GUI & Telnet) & RS232
|
| Power Supply |
12 VDC 1A
|

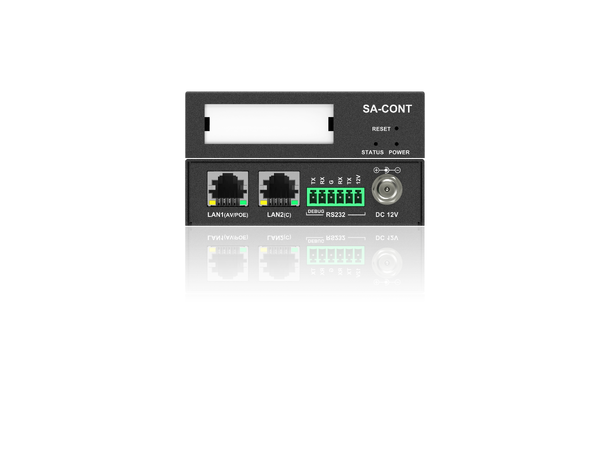

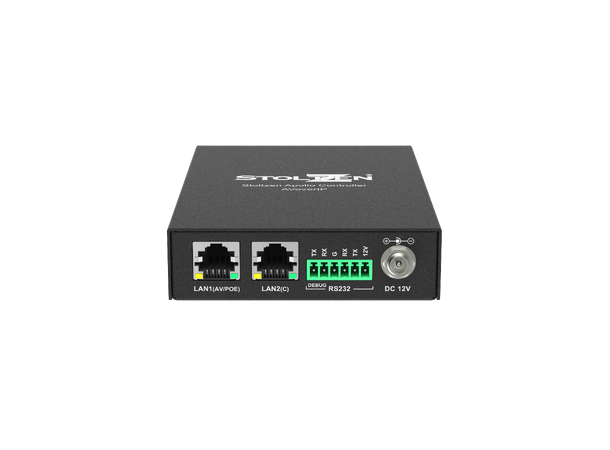

| Input & Output ports |
1 x LAN1 (AV/POE) (10/100 Mbps)
1 x LAN2 (C) (10/100 Mbps)
2 x RS232?
|

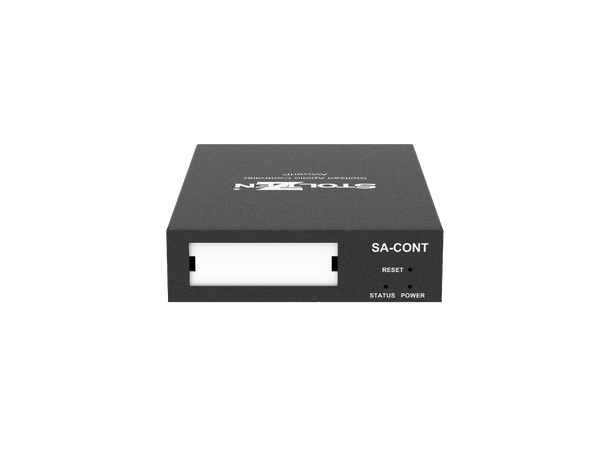

| LED |
1 x STATUS LED
1 x POWER LED
|
| Buttons |
1 x RESET Button
|
Extended Specifications
| Operating Temperature |
0°C to 45°C (32°F to 113°F)
|
| EAN |
7072262001456
|
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F)
|
| Humidity |
10% to 90%, non-condensing
|
| ESD Protection |
±8kV (Air-gap discharge)
±4kV (Contact discharge)
|
| Power Consumption(Max.) |
· 4.5W Max. (without outputting 12V 0.5A using RS232 port)
· 10.5W Max. (with outputting 12V 0.5A using RS232 port)
|
| Device Dimension (W x H x D) |
93.2 mm x 26 mm x 138.7 mm
3.67” x 1.02” x 5.46”
|
| Net Weight |
0.38kg
0.84lbs |
