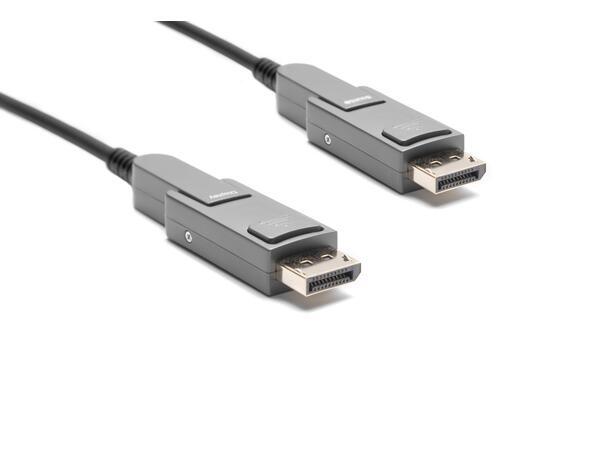

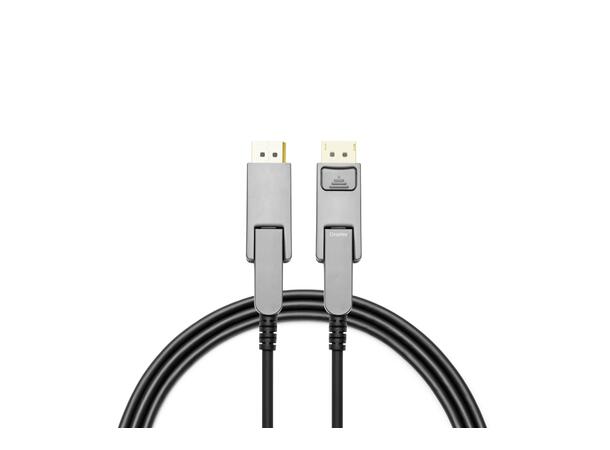

Stoltzen AOC DisplayPort 1.2 4K@60 10 m
MiniDisplayPort m/ Adapter
Hybrid cable, where video/audio is transmitted over multimode fiber cable and copper for Hot Plug detection. 4 fibers and 6 copper conductors. The cable is LSZH halogen-free.
The plug on the cable is MiniDisplayPort for easy routing in channels, etc., while an adapter to standard DisplayPort is included.
SHDP-1400 Mini DP to Mini DP 1.4 AOC is designed for special VR applications. It is a new generation of advanced Active Optical Cables (AOC) that use cutting-edge technology to deliver unprecedented resolution, performance, and value. Stoltzen Hybrid cables support DisplayPort 1.4 and provide a wide range of features in a compact, lightweight form-factor. They are fully HDCP 1.4/2.2 compliant and support signals with data rates up to 32.4 Gbps. These features enable Stoltzen cables to support very high-resolution applications at 4K/120Hz (4:4:4) with cable lengths up to 100 meters.
- Supports 4K@60Hz, Supports HDCP 1.4/2.2
- Supports DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
- Supports lengths up to 100m max, custom lengths are available
- Hybrid fiber and copper, much slimmer and lighter
- OD 4.8 mm, very flexible
- Low RFI/EMI profile for sensitive applications
- External power supply is not required
Specifications
Optical
Optical Technology: 4x Discrete Optical Channels, 10 GHz, 850 nm
Optical Transmitter: Tx Module: 4x 850 nm Multi-mode VCSELS
Optical Receiver: Rx Module: 4x GaAs PIN Photo Diodes
Cable Fiber Cable Type: Hybrid cable 4x fiber and 8x copper wire
Cable Jacket: PVC, Black
Maximum Cable Length: 100 meters
Mechanical - Cable Product Weight: Varies with length
Maximum Tensile Load: 300N
Minimum Bend Radius: 48mm
Cable Outside Diameter (W x H): 4.8mm
