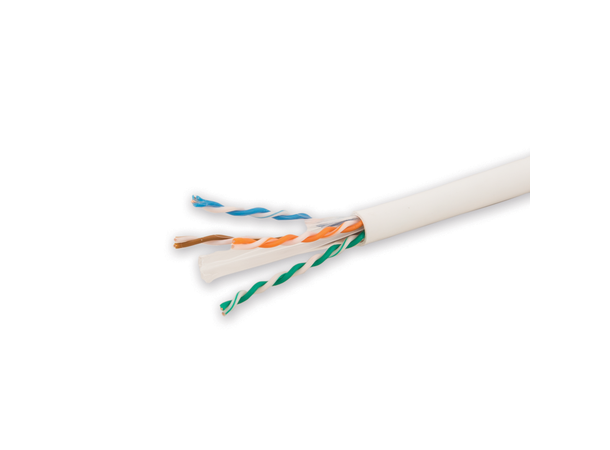

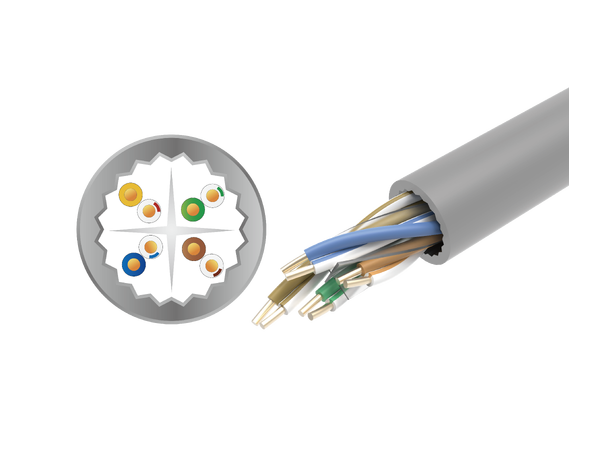

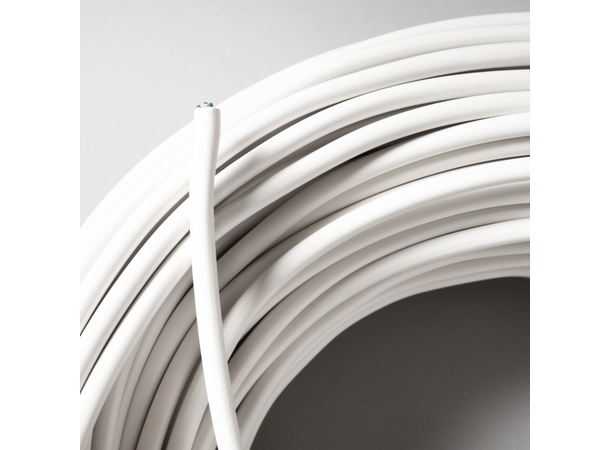

LinkIT Cat.6 U/UTP LSZH white 305m
Installation cable | AWG 23/1 | 250Mhz | Reel in box
LinkIT Cat. 6 installation cables have a solid copper core at AWG23 and are equipped with a LSZH (Low Smoke Zero Halogen) sheath. CPR classification: Dca s2, d2, a1, and it complies with the following standards for fire resistance and limited smoke emission: EN 50575:2014, EN 60332-1-2:2004, EN 50399:2011, EN 60754-2:2014, and EN 13501-6:2014. LinkIT Cat. 6 cables are PoE+ and PoE++ compatible
- Halogen free sheath
- Due to a solid sheath, the cable can also be stapled to the wall with staples.
- CPR certified
- Meter indicator on cable

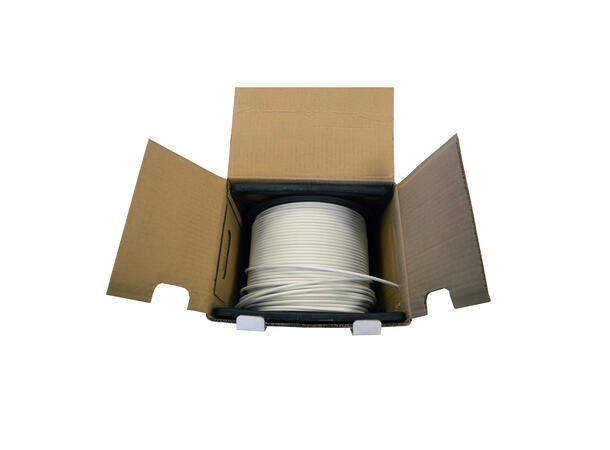

- Reel-in-box
Main Specifications
| Length (m) | 305 |
|---|
| Cable type | U/UTP |
|---|
| Color | White |
|---|
| Category | Cat.6 |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
Extended Specifications
| AWG wire size | 23 |
|---|
| Transmission speed | 1000Mbps |
|---|
| Frequency (Mhz) | 250 |
|---|
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Inner cape | LSZH |
|---|
| Conductor diameter | 0,55mm |
|---|
| Outer Cape diameter | 5,9mm |
|---|
| Halogenfree | Yes |
|---|

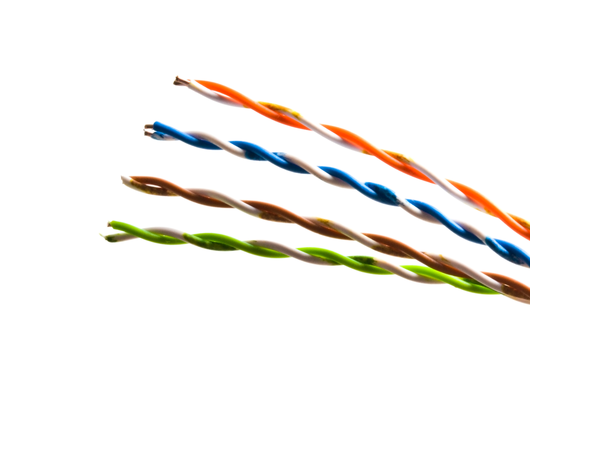

| Core color 1 | Blue, White |
|---|
| Core color 2 | White, Orange |
|---|
| Core color 3 | Green, White |
|---|
| Core Color 4 | Brown, White |
|---|
| EAN | 7072662004835 |
|---|
| Certifications | CE, REACH, RoHS |
|---|
| Cable fire class | Dca s2, d2, a1 |
|---|
| Segregation Class | C |
|---|
