LinkIT Colorflex Cat6a
SlimPatch | AWG 28 | LSZH | OD 5.2mm
Ideally for high density cabling solution
- 28AWG with OD:5.2mm
- Better airflow and cooling performance
- LSZH
- Fluke DSX-8000 Channel Test.

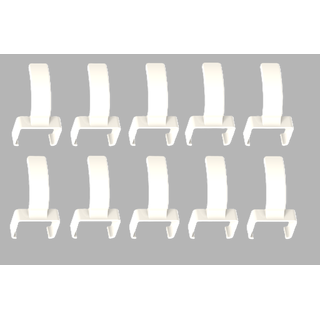

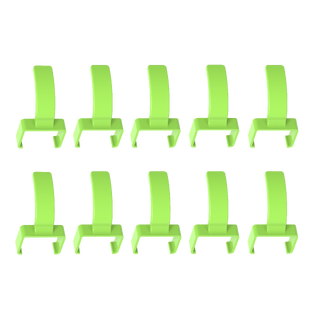

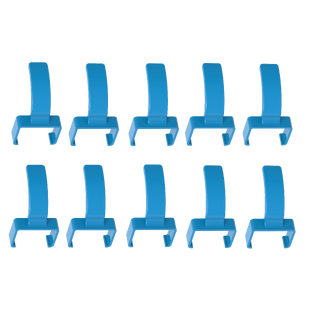

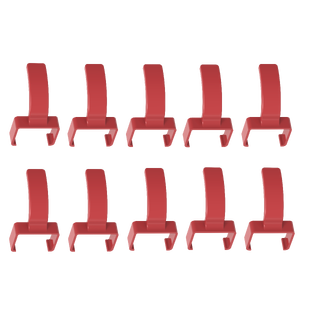

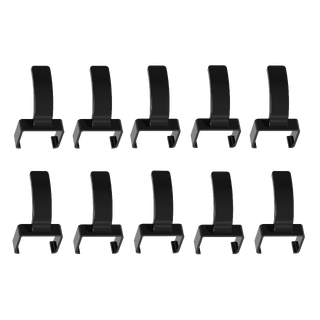

- Colorful clips
Technical documentation
This solution is optimal for environments requiring high-density cabling, such as data centers and server rooms. The cable has an outer diameter of 5.2 mm, making it ideal for space-saving installations. Using colorful clips, cables can be easily organized and identified, simplifying maintenance and troubleshooting. To ensure that the cabling meets the highest standards for performance and reliability, the Fluke DSX-8000 Channel Test is utilized. This tool verifies cable installations and contributes to optimal network performance. Additionally, the solution is designed to ensure better airflow and cooling performance, reducing the risk of overheating and improving the overall performance and lifespan of the equipment.
Main Specifications
| Brand | LinkIT |
|---|
| Color | Grey |
|---|
| Length (m) | |
|---|
| Category | Cat.6a Slim |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 male (8P8C) |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | |
|---|
| Conductor design | Stranded |
|---|
Extended Specifications
| EAN | |
|---|
| AWG wire size | 28 |
|---|
| Transmission speed | 10Gbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| Cable structure | 4 x 2 AWG 28/7 (Stranded) |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded PVC |
|---|
| Operating Temperature | -20ºC ~ 60ºC |
|---|
| Cable Diameter (mm) | 5.2 |
|---|
| Halogenfree | Yes |
|---|
| Fire retardant version | Yes |
|---|
| Core color 1 | Orange |
|---|
| Core color 2 | Blue |
|---|
| Core color 3 | Green |
|---|
| Core Color 4 | Brown |
|---|
| Temperature | Installation: 0ºC ~ 50ºC |
|---|
| Certifications | CE, REACH, RoHS |
|---|
