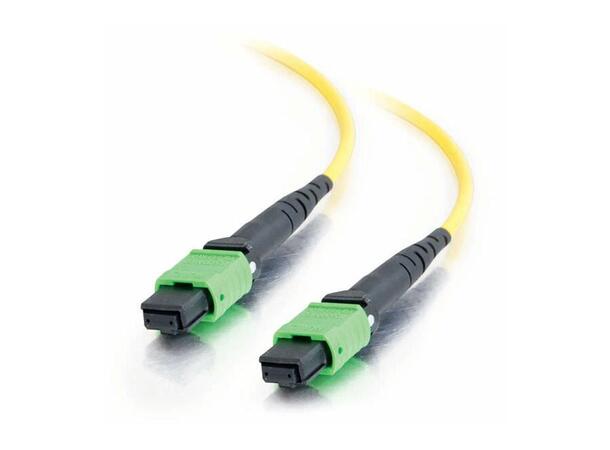

LinkIT MPO-B OS2 12c 10m MPO Female - Female | LSZH LinkIT MPO-B OS2 12c 10m MPO Female - Female | LSZH

LinkIT MPO-B OS2 12c 10m

MPO Female - Female | LSZH

Product nr: 134350
Alt. varenr: LI-MPOOS2BFF-12C-010
DescriptionTechnical infoSupport
Description

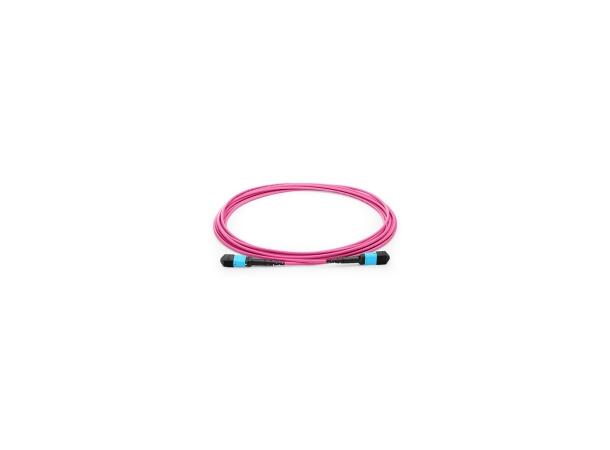

LinkIT MPO-B OM4 12 Core x meter, Version B, female-female, LSZH

Specifications:

  • Fiber mode: Multimode
  • Connectors: MPO Female - Female
  • Type: UPC
  • Cable color: Magenta
  • Core Diameter (um): 50/125
  • Insertion Loss:  < 0,75dB
  • Return Loss: > 20 dB
  • Bend radius: Dynamic 30D/Static 15D
  • Fire properties: Fire retardent and halogen-free IEC 60332-3-24, IEC 60332-1-2, IEC 61034, IEC 60754-1
  • Operating/storage temp: -20 to +70 degrees celsius



Technical info

Product information

Connector MPO Female – Female
Lenght 10 m
Outer Sheath LSZH
Polish type APC
