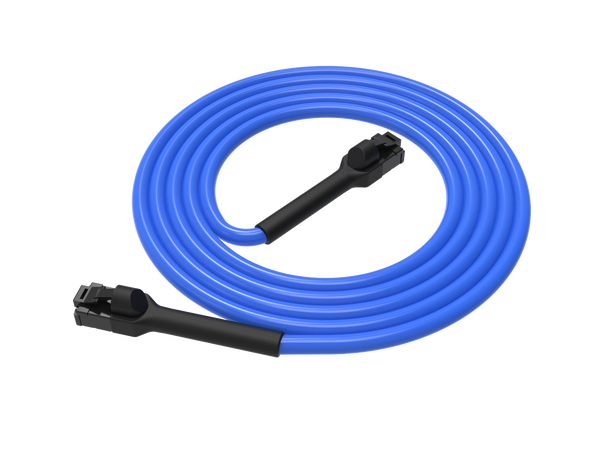

LinkIT Flexi-Boot U/UTP Cat.6a Blue 0.5m
SlimPatch | AWG28 | LSZH | OD3,6mm
Full flexible boot that can be bend in all angles 0-360 degrees
- 50 micron goldplated plug with LSZH jacket
- The U/UTP 28AWG cables fully meet the PoE; PoE+;PoE++.
- Fluke DSX 8000 channel tested.
LinkIT U/UTP Slim Cat. 6a is a network cable engineered for top-tier performance and versatility. With its fully flexible boot, this cable effortlessly bends at any angle from 0 to 360 degrees. Crafted with LSZH (Low Smoke Zero Halogen) jacketing, it prioritizes safety by ensuring minimal smoke emission and toxicity in case of a fire. Despite its slender outer diameter of just 3.6mm, it boasts robustness and space-saving qualities. The cable’s 50-micron gold-plated plugs guarantee reliable data transmission, Fluke DSX 8000 channel tested. Compatible with PoE, PoE+, and PoE++, it’s ideal for powering various network devices
Main Specifications
| Brand | LinkIT |
|---|
| Color | Blue |
|---|
| Length (m) | 0.5 |
|---|
| Category | Cat.6a Slim |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 male (8P8C) |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
| Conductor design | Stranded |
|---|
Extended Specifications
| AWG wire size | 28 |
|---|
| Frequency (Mhz) | 500 |
|---|
| Cable structure | 4 x 2 AWG 28/7 (Stranded) |
|---|
| Jacket material | LSZH |
|---|
| Pin Assignment | 568B-568B |
|---|
| Operating Temperature | -20ºC ~ 60ºC |
|---|
| Cable Diameter (mm) | 3.6 |
|---|
| Halogenfree | Yes |
|---|
| Fire retardant version | Yes |
|---|
| Core color 1 | Orange |
|---|
| Core color 2 | Blue |
|---|
| Core color 3 | Green |
|---|
| Core Color 4 | Brown |
|---|
| Temperature | 0ºC ~ 50ºC |
|---|
| Certifications | CE, REACH, RoHS |
|---|
